Schott & Meissner, Nonwoven Coating-Laminating Line, 2014, 2400mm Working Width, Vapcon HT Steam Oven, Topcon MAP Double Belt Dryer

Schott & Meissner, Nonwoven Coating-Laminating Line, 2014, 2400mm Working Width, Vapcon HT Steam Oven, Topcon MAP Double Belt Dryer

Description

  1. Overview
    1. Complete Schott & Meissner nonwoven coating-laminating line
    2. For phenolic resin, epoxy or pp-powder
    3. Year 2014
    4. Working width 2400 mm
    5. Roller width 2600 mm
    6. Medium: phenolic resin, epoxy or pp-powder up to 500 µ
    7. End product: insulation material
  2. Steam Oven Section

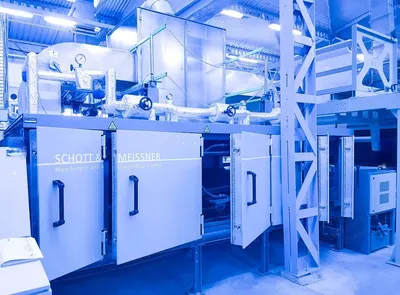

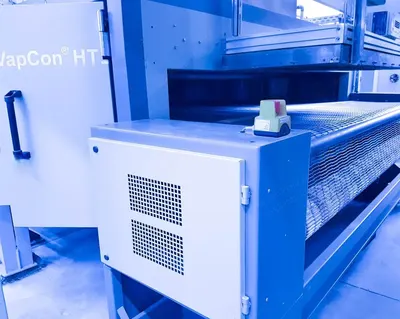

    1. 1 Schott & Meissner type Vapcon® HT steam oven

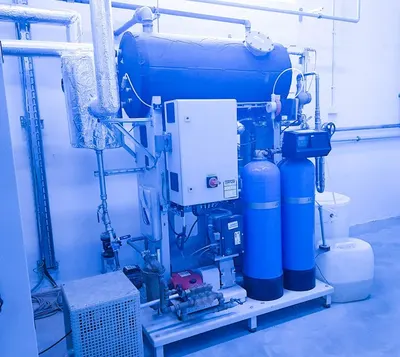

    2. With steam generator and water treatment
    3. 450 kW burner incl. chimney
    4. Steam heating section 3 m
    5. Transport system with cleaning station
    6. Steam heated top plates

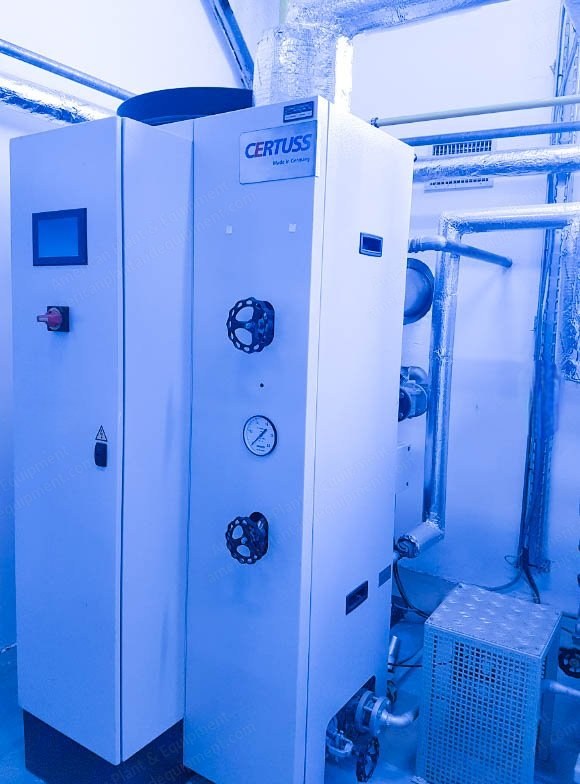

    7. Steam generator approx. 400 kW, 12 bar
    8. Speed 1…20 m/min
    9. Temperature 180 °C
    10. Belt type stainless steel rod mesh belt
    11. Belt cleaning by combined brush roller, over rails adjustable
    12. Incl. spike roller (to break up the dirt on the rod mesh belt)
    13. All drives are frequency controlled
  3. Double Belt Dryer Section
    1. 1 Schott & Meissner type Topcon®MAP double belt dryer
    2. For drying residual moisture after the steam oven
    3. 1 x 2 m Topcon®MAP heating section
    4. Direct heated by gas blower burner, circulating air blower with capacity 15,000 m³/h
    5. 1 x exhaust fan with capacity 6000 m³/h
    6. Conveying system incl. belt guiding system and belt tensioning
    7. Topcon®MAP for suction treatment or spraying (can be changed)
    8. Topcon®MAP heating zone 1 level suction dryer
    9. Incl. housing
    10. Direct heated air burner 150 kW
    11. Max. temperature 200 °C
    12. Transport system with two free-running conveyor belts
    13. Top band - wide spiral belt
    14. Lower belt - wide spiral belt
    15. All drives are frequency controlled
  4. Powder Conveying and Spreading Section
    1. 1 Emde big-bag powder conveying station
    2. Powder conveying device for powder spreading unit incl. distribution unit in the spreading hopper of the powder spreader
    3. Dust-free big bag emptying station
    4. 1 Schott & Meissner powder scatter
    5. Material hopper with spreading roller unit
    6. Incl. quick change unit
    7. Oscillating brushing unit
    8. Closed design
    9. Servo drive for spreading roller
    10. Spreading material: phenolic resin, epoxy or pp-powder up to 500 µ
    11. Spreading roller: steel core with needling tape wrapping
    12. Spreading roller diameter: 180 mm
    13. Oscillating brush belt - total stroke 6 mm
    14. Ionization arranged below the brushing belt
    15. All drives are frequency controlled
  5. Availability
    1. Available: immediately
