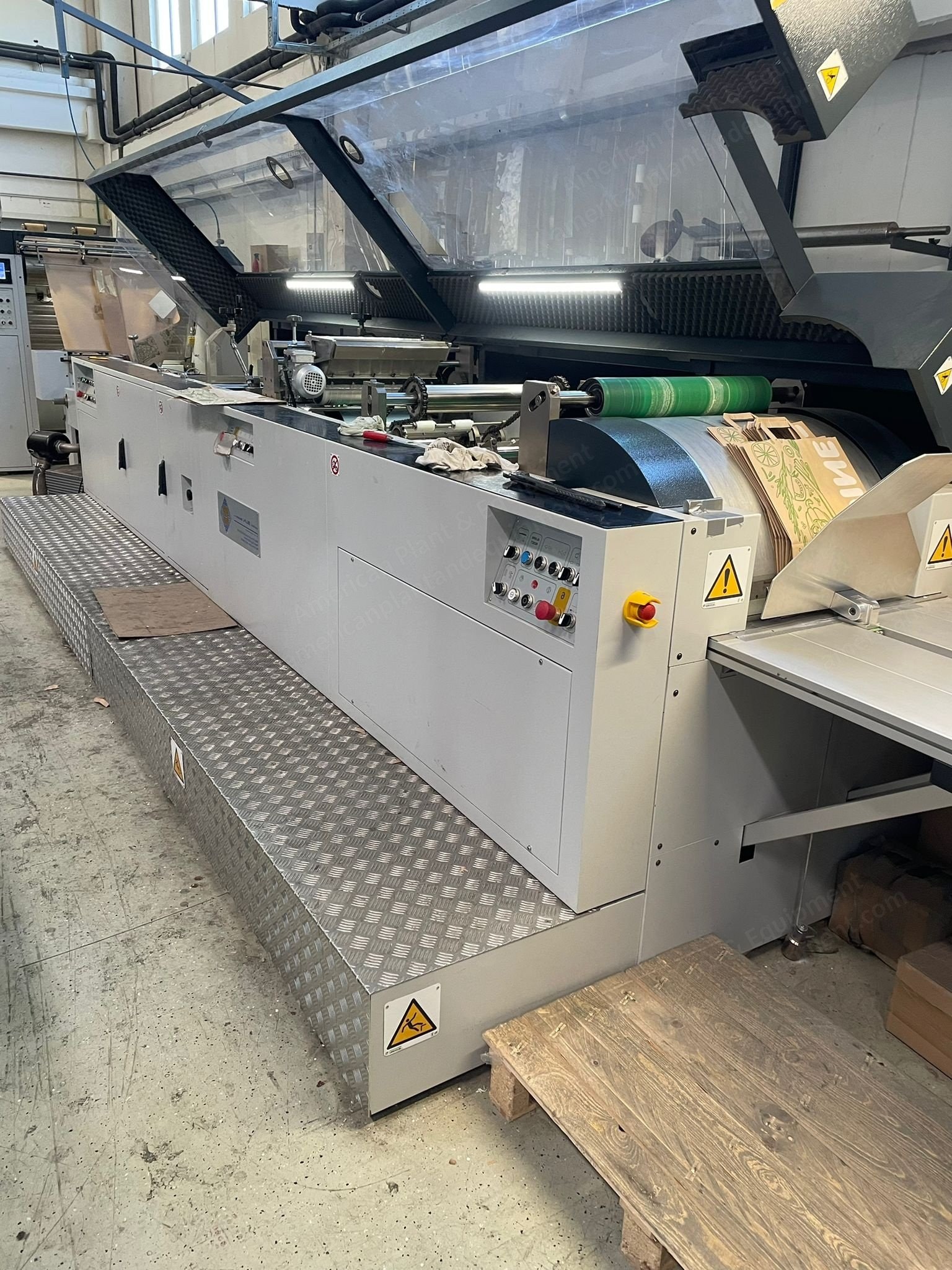

Sun Master, 545, 2023, Square Bottom Paper Bag Machine, Flat Handles, 160 cycles/min, Bag Width 220-540mm

Sun Master, 545, 2023, Square Bottom Paper Bag Machine, Flat Handles, 160 cycles/min, Bag Width 220-540mm

Description

  1. Overview
    1. Sun Master 545 square bottom paper bags with flat handles from inside
    2. Mechanical speed 160 cycles/minute
    3. Year: 2023
    4. Available: immediately
  2. Bag Specifications
    1. Bag width (without handles): 220 to 540 mm (8.66" to 21.26")
    2. Bag width (with handles): 240 to 540 mm (9.44" to 21.26")
    3. Bag length (with handles): 270 to 550 mm (10.6" to 21.65")
    4. Bag length (without handles): 270 to 650 mm (10.6" to 25.6")
    5. Bottom width: 80 to 200 mm (3.15" to 7.87")
    6. Bottom width (there might be a performance limitation): 80 to 220 mm (3.15" to 8.66")
    7. Cut length: 350 to 780 mm (13.78" to 30.7")
    8. Reel width: 630 to 1430 mm (24.8" to 56.3")
    9. Maximum diameter of the reel: 1500 mm (59")
    10. Inner core diameter: 76 mm (2.99")
    11. Weight of paper: 80 to 130 gsm
  3. Flat Handle Making Unit MP270-18X Specifications
    1. Type of handle: flat paper handle, 4 folded
    2. Minimum distance between the handles: 300 mm (11.81")
    3. Maximum distance between the handles: 700 mm (27.56")
    4. Flat handle height: 18 mm (0.7")
    5. Flat handle width: 126 mm (4.95")
    6. Patch height: 59 mm (2.32")
    7. Patch length: 160 mm (6.30")
    8. Reels width for flat handle: 68 to 70 mm (2.68" to 2.75")
    9. Maximum diameter of paper reels for flat handle: 1200 mm (47.24")
    10. Inner core reel diameter for flat handle: 76 mm (3")
    11. Weight of paper for flat handle: 70 to 100 gsm
    12. Reels width for patches: 160 mm (6.30")
    13. Maximum diameter of paper reels for patches: 1200 mm (47.24")
    14. Inner core reel diameter for patches: 76 mm (3")
    15. Weight of paper for patches: 70 to 100 gsm
  4. Included Accessories
    1. 1 expanding shaft with diameter by choice (standard 76 mm – 3"), for reel displacement
    2. 2 additional sets of grippers (each composed of 5 grippers) for the paper bags bottom formation
    3. 4 gears, at choice, for the adjustment of the cutting length
    4. Set of clamp spacer bushes for grippers, for formation of all bottom sizes of above mentioned range
    5. Vinyl gluing complete system (Nordson), already described
    6. Hot-melt gluing complete system (Nordson), already described
    7. 1 additional set of longitudinal guides for the paper bag tube formation
    8. 1 set of blades for the serrated cut of the paper bags (with handles) and 1 blade for the straight cut of the paper bags (with handles)
    9. Set of upper and lower bottom opening grippers
    10. Set of machine operating tools
