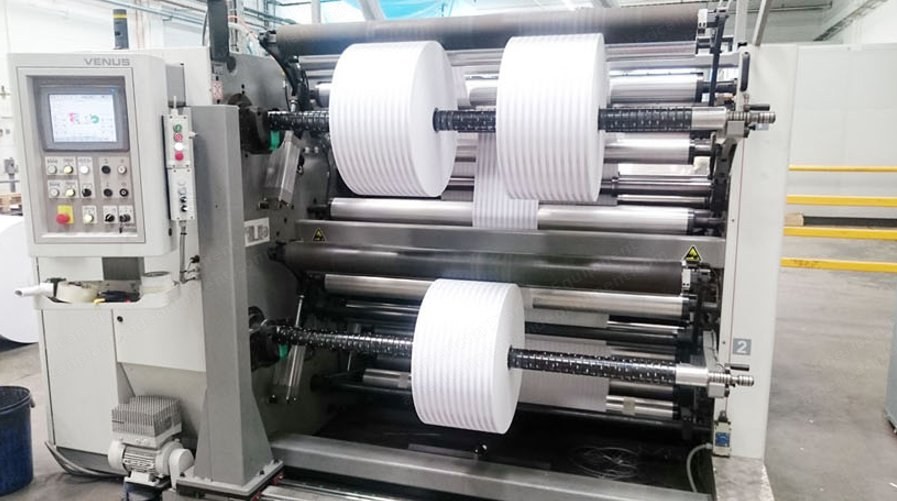

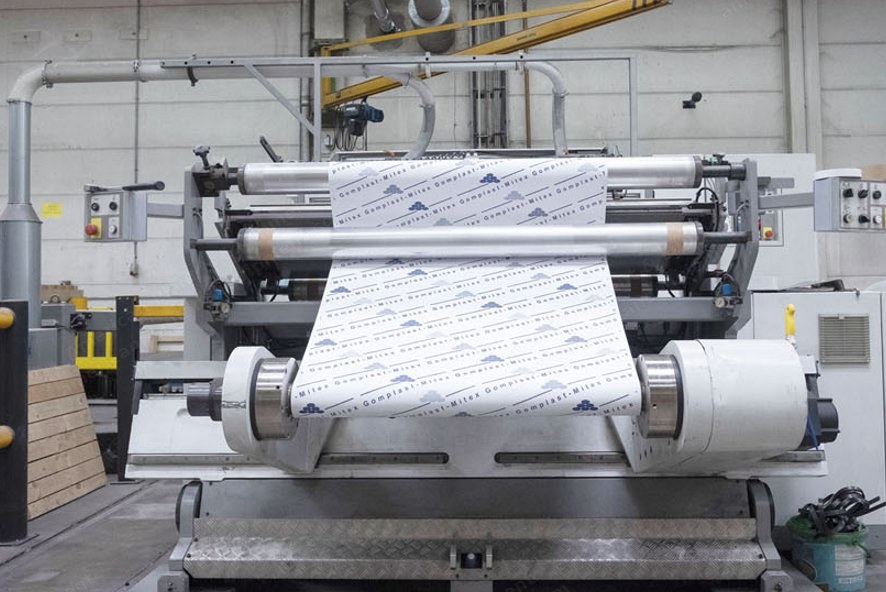

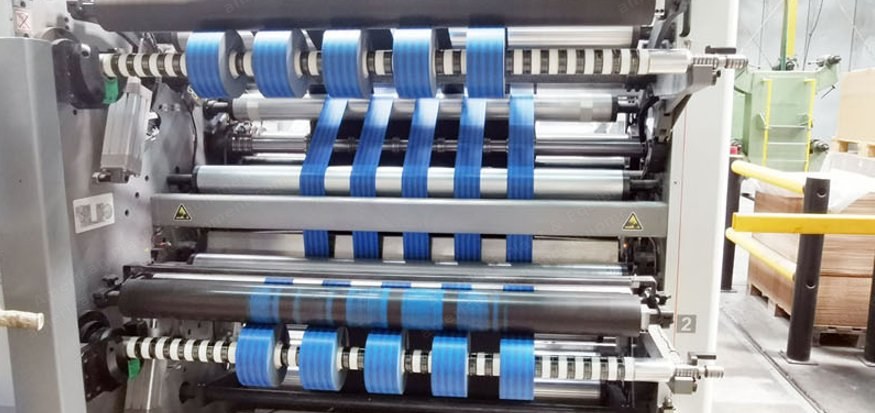

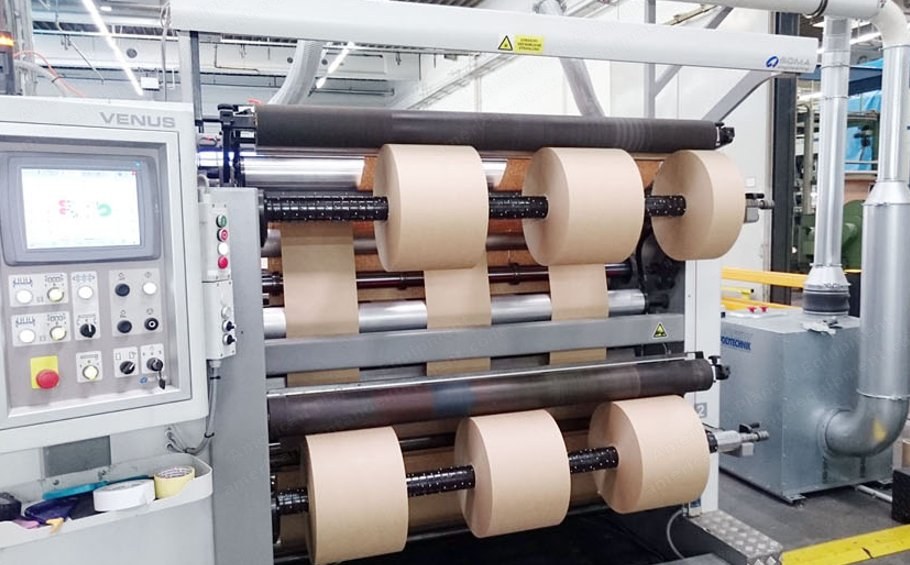

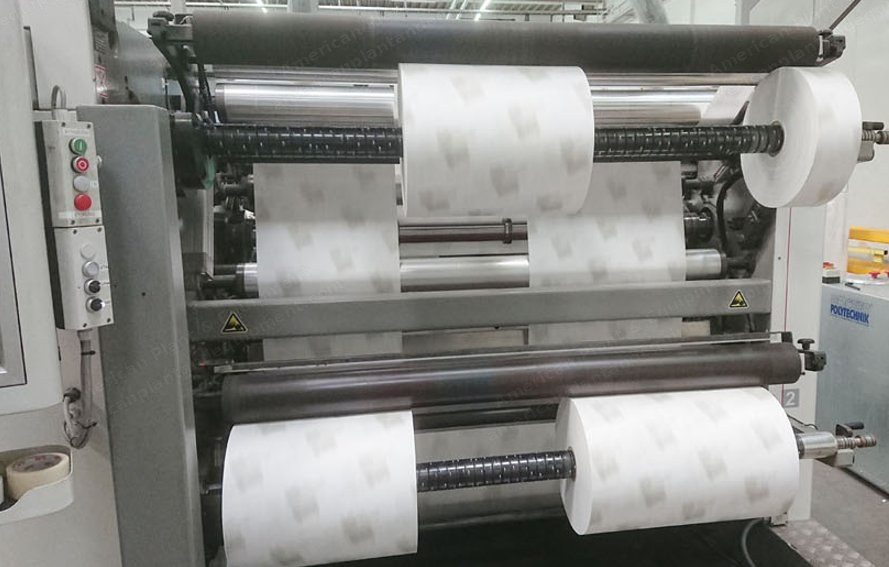

Soma, T41-40 / 1600, 2011, Slitter-Rewinder, Width 1600mm, Max Speed 800 m/min

Soma, T41-40 / 1600, 2011, Slitter-Rewinder, Width 1600mm, Max Speed 800 m/min

Description

  1. Overview
    1. Material width: 350 mm to 1600 mm
    2. Cores of mother roll: 70 / 76 / 100 / 150 mm
    3. Weight of un+rewind-roll: max. 2000 kg
    4. Unwinder diameter max. 1200 mm
    5. Rewind diameter min. 200 - max 800 mm
    6. Min. slit-width: 35 mm
    7. Cores of rewinding roll: 70 / 76 / 150 mm
    8. Floor pick-up
    9. Machine speed, max: 800 m/min
  2. Material Specifications
    1. Material: 20-200 gr. paper/papier/laminates
    2. PP+PET min. 0.008 mm, PE min. 0.012 mm
  3. Stations and Shafts
    1. Two turret rewinding-shafts
    2. Separate unwinding station
    3. Turret rewinding station
  4. Features
    1. 20 pcs. knives autom. setting
    2. Core-positioning via laser
    3. Autom. unload of rewind-rolls
