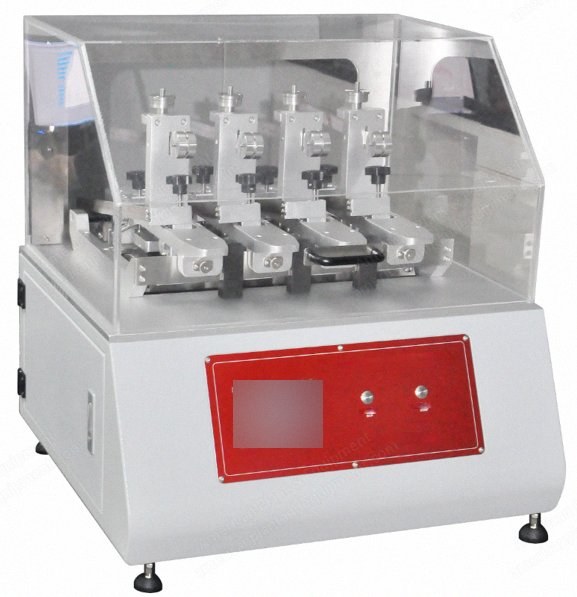

NovaStar, MC298, Wyzenbeek Abrasion Tester, 4 Test Heads, 90 RPM, 220V (New)

NovaStar, MC298, Wyzenbeek Abrasion Tester, 4 Test Heads, 90 RPM, 220V

Description

  1. Overview
    1. Wyzenbeek abrasion tester
    2. Evaluates the wear resistance of textiles against standard abrasive media or curved surfaces such as metal mesh.
    3. Particularly suited for testing the abrasion resistance of automotive upholstery, furniture textiles, leather, and similar materials.
    4. Compliance standards: ASTM D4157, ASTM D3597, ISO 12402-7, SAE J1948, and other relevant standards.
  2. Specifications
    1. Test heads: 4 sets
    2. Rotational speed: 90 ± 1 rpm
    3. Friction surface: curved surface R = 100mm, length 400mm
    4. Friction stroke: 76 ± 2mm
    5. Friction head: bottom rubber pressure head 50 × 50mm
    6. Specimen tension: 6 lbf (26.7N), adjustable
    7. Tension adjustment weights: 340g
    8. Specimen load: 3.5 lbf (15.575N), adjustable
    9. Load adjustment weights: 150g
    10. Specimen dimensions: 73 × 245mm
    11. Number of specimens: 12 pieces (6 each in warp and weft directions)
    12. Instrument dimensions: 830 × 660 × 810mm
    13. Weight: approx. 70 kg
    14. Power supply: 220 V, 250 W
  3. Included Items
    1. Main unit: 1 unit
    2. Rubber blocks: 4 pieces
    3. Metal mesh: 2 pieces
    4. No. 10 friction cloth: 5 sheets
    5. Certificate of conformity: 1 copy
    6. Product manual: 1 copy
    7. Product brochure: 1 copy
