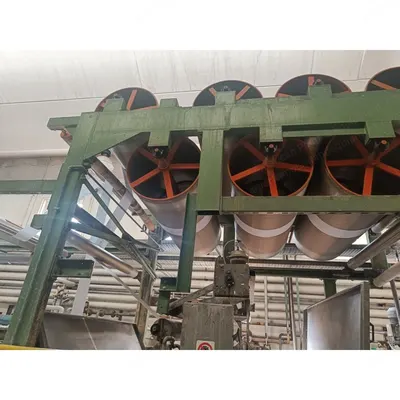

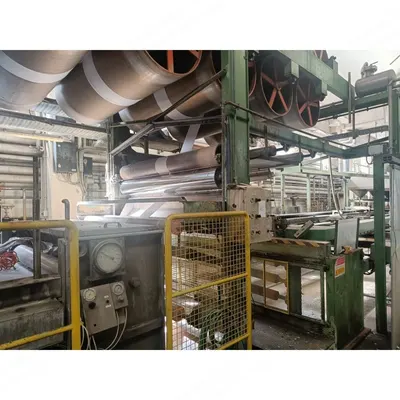

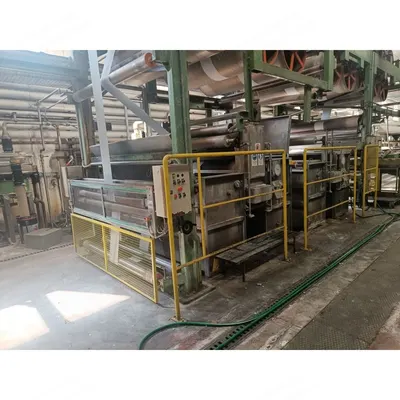

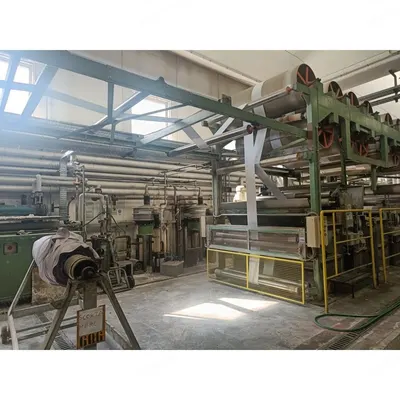

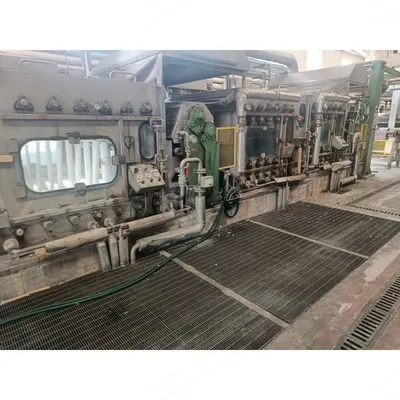

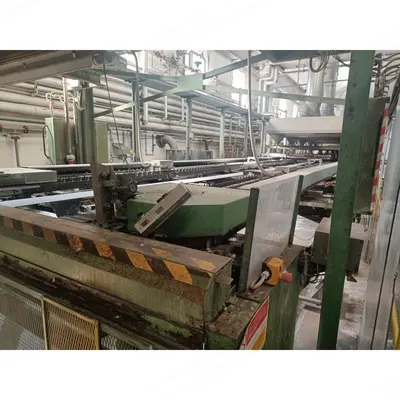

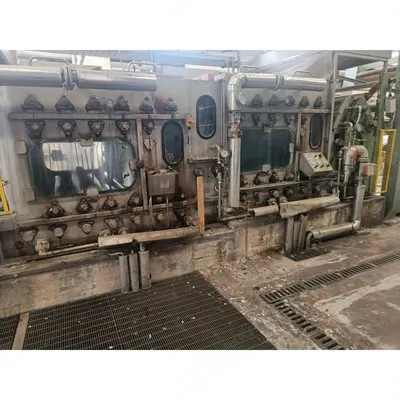

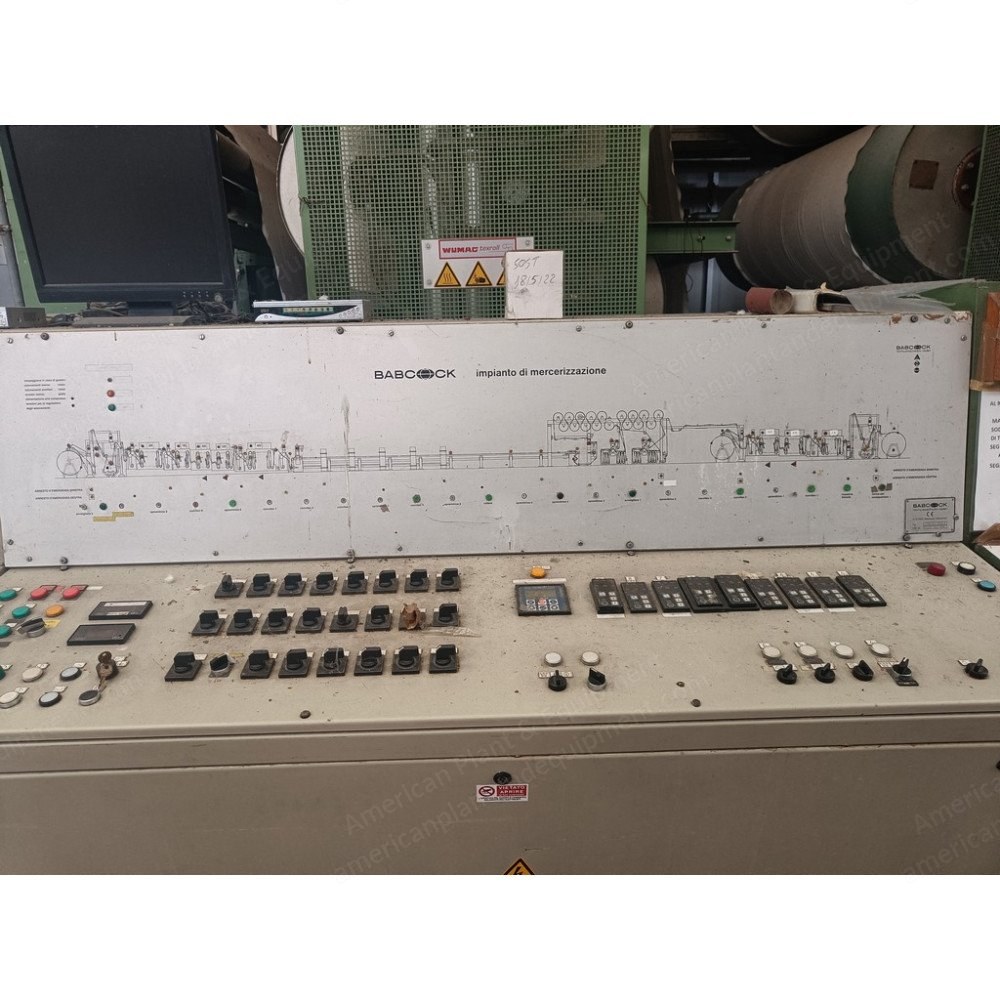

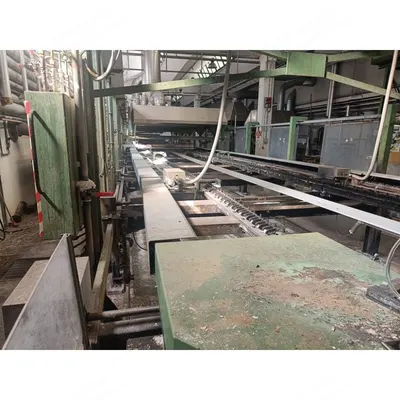

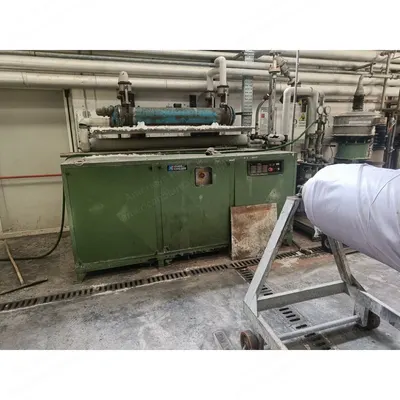

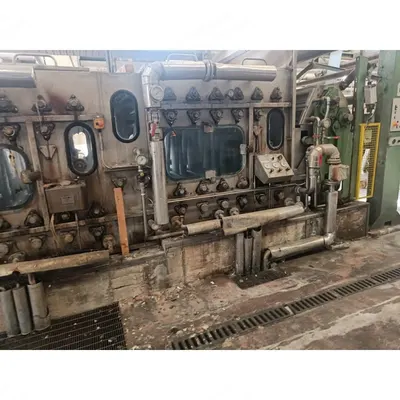

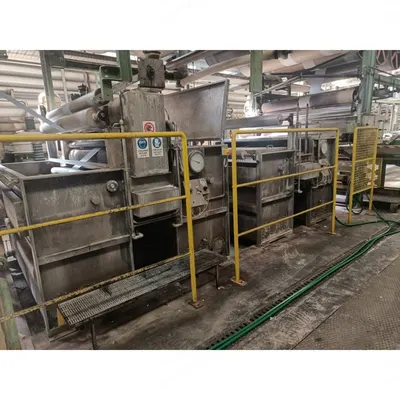

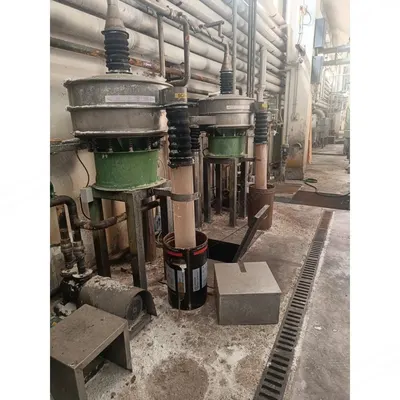

Description Overview Useful working width: 1800 mm Fabric entry from big roll with axial unwinding Entry with J-box for fabric accumulation entry Fabric exit in a big roll with tangential winding Washing and Preparation 3 washing-preparation tanks for soda treatment, but they can also work as a simple independent washing unit 5 washing and rinsing tanks, the last of which is equipped with an automatic chemical dosing system Mercerizing Line Overhead connection system between the washing line and the mercerizing line, with connection arms and passage cylinders 4 impregnation tanks 17 large diameter perforated cylinders for the oxidation of the fabric in air 1 chain mercerizing unit, length 21 meters complete with alkaline showers for greater stabilization of the fabric Filtration and Auxiliary Systems Chiller 2 filters to remove impurities from the soda, mainly fluff Filter-press for the exhausted soda Water system on board the machine Steam system on board the machine Electrical and pneumatic system on board the machine
