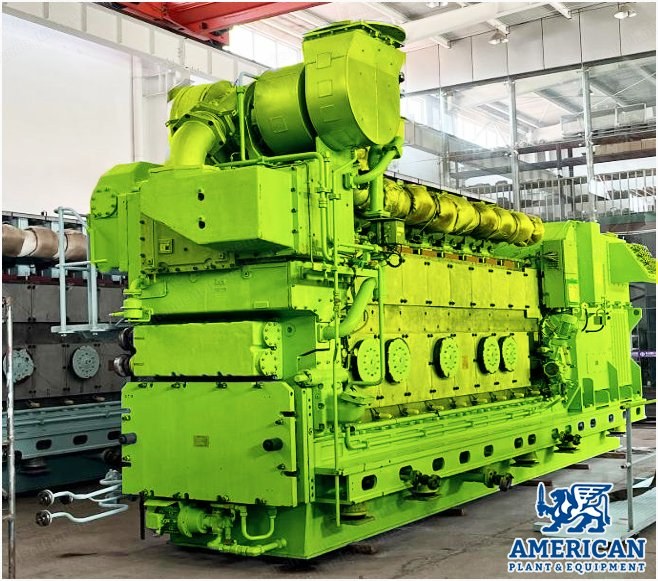

STX-MAN, 8L27/38, 2009, 2640kW, 60Hz, HFO Generator Set

STX-MAN, 8L27/38, 2009, 2640kW, 60Hz, HFO Generator Set

Description

  1. Overview
    1. Engine brand: STX-MAN
    2. Engine model: 8L27/38
    3. New, zero hours
    4. Year of manufacture: 2009
    5. Condition: genset, genuine new
  2. Generator Set Specifications
    1. Model: MAN8L27/38 gen-set
    2. Engine type: MAN8L27/38
    3. Alternator type: HFJ7 718-14K
    4. Voltage: 450V
    5. Rated power: 2500kW
    6. Rated speed: 720rpm
    7. Frequency: 60Hz
    8. Power factor: 0.8
    9. Weight: 59870kg
    10. Overall dimension: 8667mm x 2170mm x 3712mm
  3. Engine Specifications
    1. Model: MAN8L27/38
    2. Brand: STX
    3. Mode: four stroke, in-line, 8 cylinders
    4. Rated power: 2640kW
    5. Bore/stroke: 270 to 380mm
    6. Air intake: turbocharged and after cooled
    7. Rated speed: 720rpm
    8. Crankshaft rotation: counter-clockwise (viewed from flywheel)
    9. Fuel designation: MDO/HFO (HFO must satisfy ≤ 380 cSt/50°C)
    10. Fuel consumption: 95 +5% g/kWh
    11. Lube-oil designation: better than SAE CF40
    12. Lube-oil consumption: 0.8 g/kWh
    13. Air intake vacuum requirement: ≤2.5kPa
    14. Exhaust back pressure: ≤2.5kPa
    15. Weight: 47970kg
  4. Alternator Specifications
    1. Model: HFJ7 718-14K
    2. Brand: Hyundai
    3. Capacity: 3125kVA
    4. Voltage: 450V
    5. Protection degree: IP 44
    6. Ambient temp: 50°C
    7. Rated speed: 720rpm
    8. Frequency: 60Hz
    9. Power factor: 0.8
    10. Connection/rating: Y/cont
    11. Insulation class: F
