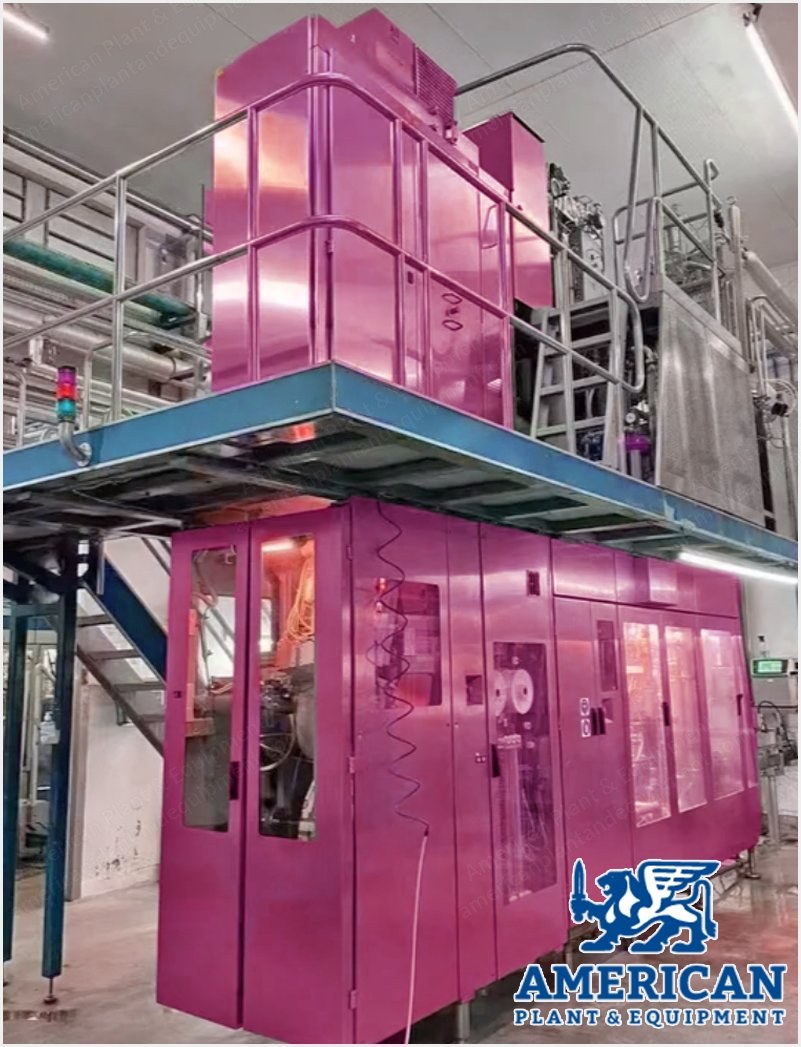

Tetra Pak, A3/Flex Compact 150V, 2008, 7000 BPH, 1.0 L, Aseptic

Tetra Pak, A3/Flex Compact 150V, 2008, 7000 BPH, 1.0 L, Aseptic Sold

Description

  1. Overview
    1. This second hand Tetra Pak A3/Flex 150V TBA 1000B is a proven aseptic carton filler engineered for industrial packaging and beverage production.
    2. Configured for Tetra Brik Aseptic 1000 ml (base) packs, it delivers reliable, continuous operation for UHT milk, juices, and other shelf-stable beverages.
    3. With a nominal capacity of approximately 7,000 packs/hour, this used bottling line component combines high throughput with aseptic integrity for modern carton packaging.
    4. Filling type: aseptic (non-isobaric carton filling).
    5. Package format: Tetra Brik Aseptic 1000 ml (base).
    6. Nominal speed: ≈ 7,000 packs/hour.
    7. Working hours: ≈ 30,000 hours.
  2. Specifications
    1. Speed: 7500 BPH.
    2. Products: dairy, juice.
    3. Containers: Brik.
    4. Formats: 1.0 L (0.3 gal).
    5. Measurements - width: 7mm (0.3 in), length: 3mm (0.1 in), height: 4.5mm (0.2 in).
    6. Electrical data: V: 480V.
    7. 50KW (67.1 hp).
    8. 60Hz.
    9. Weight: 7000 KG (15,432 lb).
    10. No. of valves: 1.
    11. Fill type: aseptic.
    12. Electronic pre-expulsion valve: auto-level.
    13. Rotation: clockwise.
    14. Safety features: yes.
    15. Manuals: yes.
    16. Machine hours: 34590 hours.
    17. Voltage: 480V
    18. Electrical frequency: 60Hz
  3. Utilities
    1. Electrical: 480 V, 60 Hz, 3-phase.
    2. Installed power: up to ≈ 50 KW (67.1 hp) (typ. 35 to 50 KW depending on configuration).
    3. Compressed air: 6–8 bar, ≈ 300 to 500 NL/min.
    4. Water/steam: ≈ 0.5–1.0 m³/h (for processing/sterilization utilities).
  4. Dimensions & Weight
    1. Approximate footprint (L × W × H): 7000 × 3000 × 4500mm.
    2. Approximate weight: ≈ 7,000 KG (15,432 lb) (model range 6,000 to 8,000 KG).
  5. Further specifications
    1. Year: 2008
