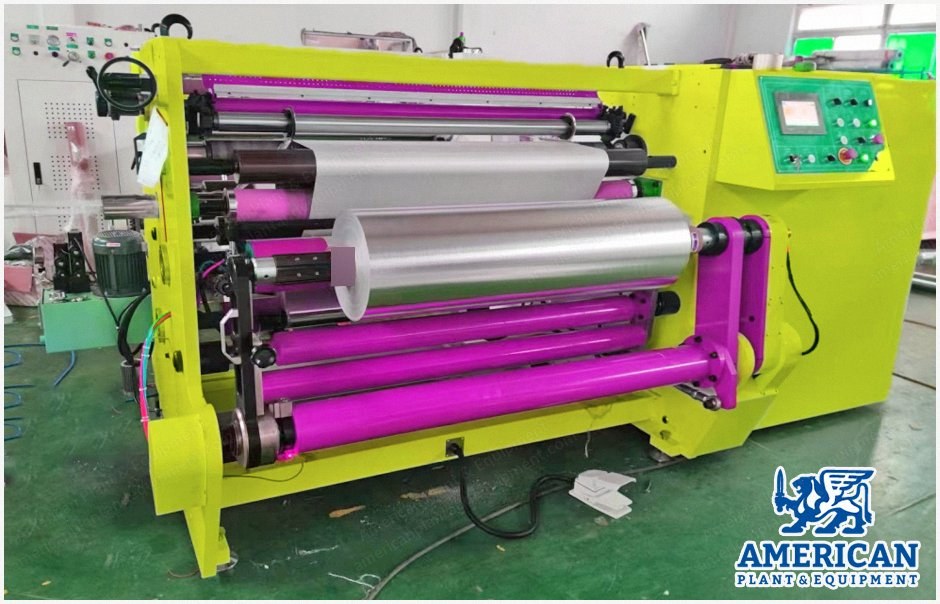

NovaStar, SR251, Fabric Slitter Rewinder, 2000mm Width, 200 m/min (New)

NovaStar, SR251, Fabric Slitter Rewinder, 2000mm Width, 200 m/min

Description

  1. Unwind Section
    1. Unwind base: connected shaft type of fixed unwind base
    2. Unwind shaft: 3” pneumatically compressed shaft
    3. Unwind system: hydraulic lift and shaft-less unwinding
    4. Unwind brake: air brake 40 kg
    5. Unwind tension: material O.D. detecting automatic control
    6. Unwind lay on roller: surface type roller by air control
  2. Rewind Section
    1. Rewind driver system: 2 motors in a system to control tension
    2. Main motor: Siemens AC motor 7.5 HP control by inverter
    3. Rewind motor: Siemens AC motor 15 HP control (tap tension control)
    4. Rewind shaft: 3” pneumatically compressed shaft
    5. Rewind arm control: pneumatic pressure roller automatic control
    6. Spread roller: adjustable bowed roller 100 mm
    7. Trim remove device: strong blower with AC motor 5 HP
    8. Maintenance kit: tools and instruction
  3. Electrical Section
    1. Control system: Mitsubishi PLC programmable center control
    2. Control panel: Schneider touch screen (for setting, tension, length, etc.)
    3. Control panel box: connected control frame
  4. Slitting Knife
    1. Male knife set: male knife set 105 x 60 x 20T (movable)
    2. Female knife: female knife sleeve O.D. 105 x I.D. 80 x T30 (movable)
  5. Specifications
    1. Voltage: 220V 60Hz 3 Phase
    2. Machine speed: 200 meters/minute
    3. Machine width: 2000mm
    4. Rewind diameter: 600mm
    5. Unwind diameter: 1200mm
