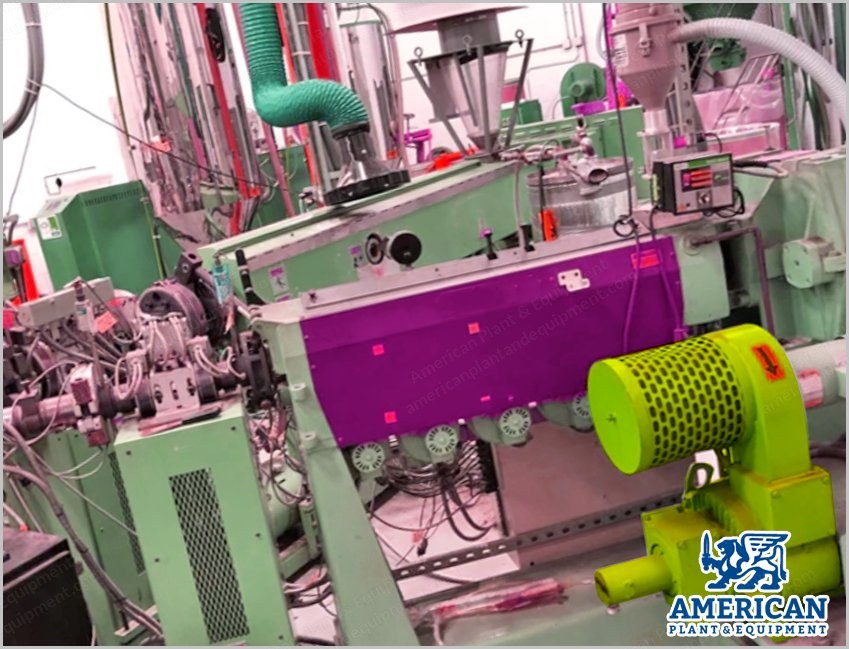

Marshall & Williams, Co-Extrusion Sheet Line, 7-Layer, 30" Wide, with 2.5" Welex and 1.5" & 1.25" Davis Standard Extruders

Marshall & Williams, Co-Extrusion Sheet Line, 7-Layer, 30" Wide, with 2.5" Welex and 1.5" & 1.25" Davis Standard Extruders

Description

  1. Overview
    1. Used co-extrusion sheet line by Marshall & Williams
    2. Brand: Marshall & Williams
    3. Model: Co extrusion sheet line
    4. This line was in a lab at a major resin producer; it has been meticulously maintained and has very low operation hours on it
    5. Ideal for acrylic resins and color concentrates
  2. Extruders

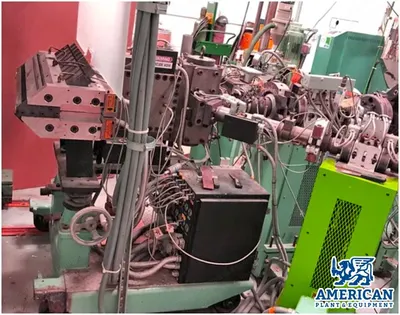

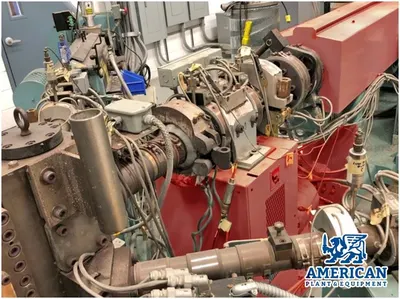

    1. 1.5" Davis Standard 28:1 L/D non-vented air cooled extruder including melt pump; new 1989 and equipped with 6.53/1 gearbox ratio
    2. 2.5" Welex 36/1 L/D with air cooled vented barrel, with 9.145/1 gearbox ratio including manual screen changer, water cooled screw and melt pump

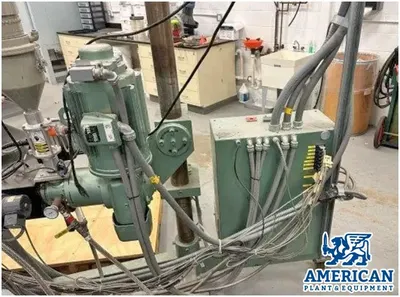

    3. 1.25" Davis Standard pedestal extruder, 36/1 L/D new 2001 with vented air cooled barrel and melt pump; includes 5 hp ac motor
  3. Feed Block And Die

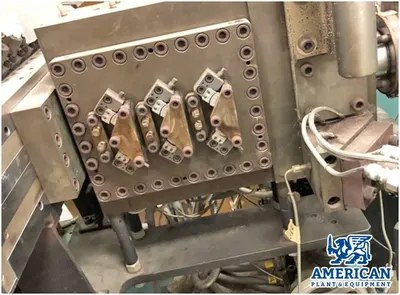

    1. 7-layer Cloeren co-ex block with additional sleeves for layer configurations; feed block with plugs for B/A/C/D/C/A/B, C/A/B/A, C/A/B, B/C/A/C/B, A/B/C, A/C/B/C/A; previously used as a 3-layer line

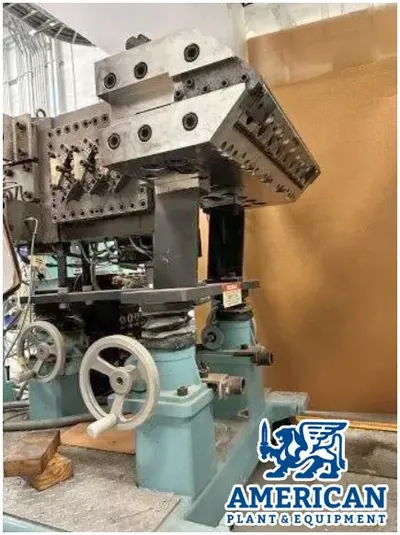

    2. 28" flex lip sheet extrusion die with removable lower lip including (1) spare lip for.001-.100 thickness
  4. Sheet Stack And Downstream

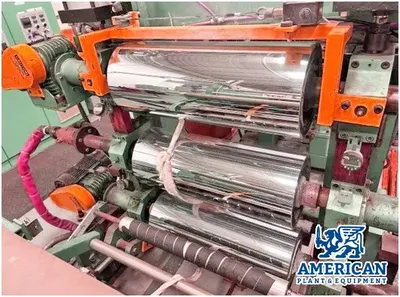

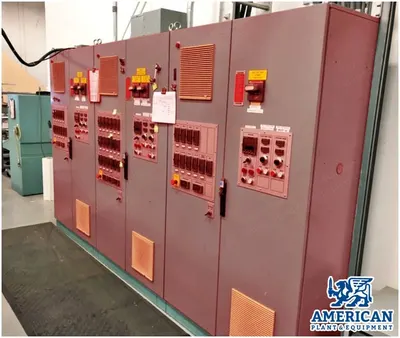

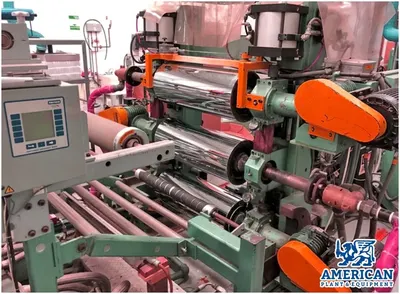

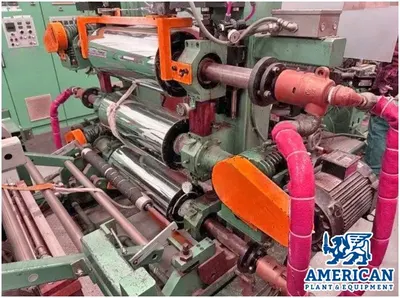

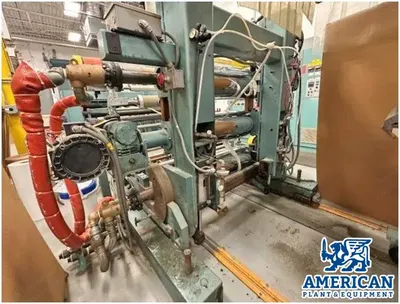

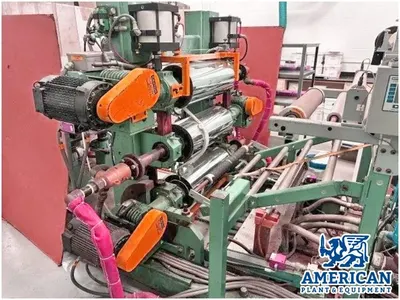

    1. 12" x 30" Marshall & Williams sheet extrusion stack with individual roll drives, air actuated rolls; includes cooling conveyor and rubber pull assembly, pumps and heat exchangers and operator controls
  5. Specifications And Operation
    1. The line was last run to a maximum.354" thickness
    2. Line has run acrylic resins and acrylic based color concentrates
