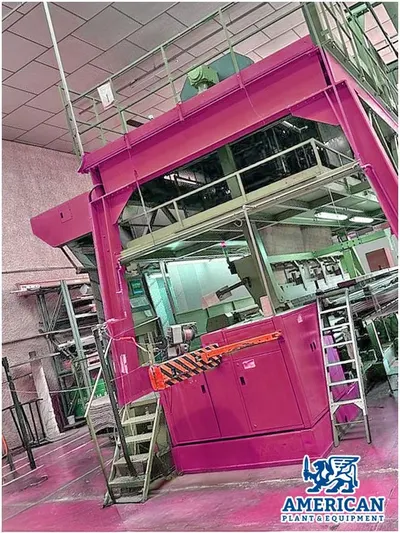

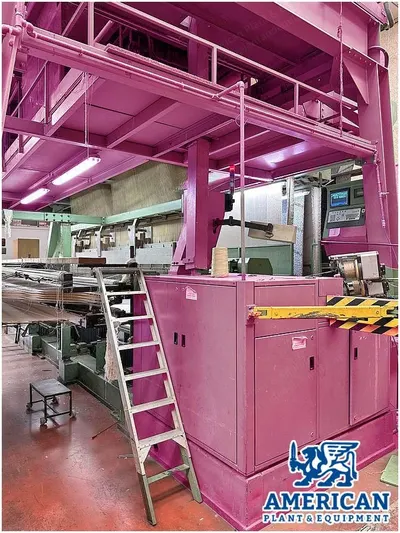

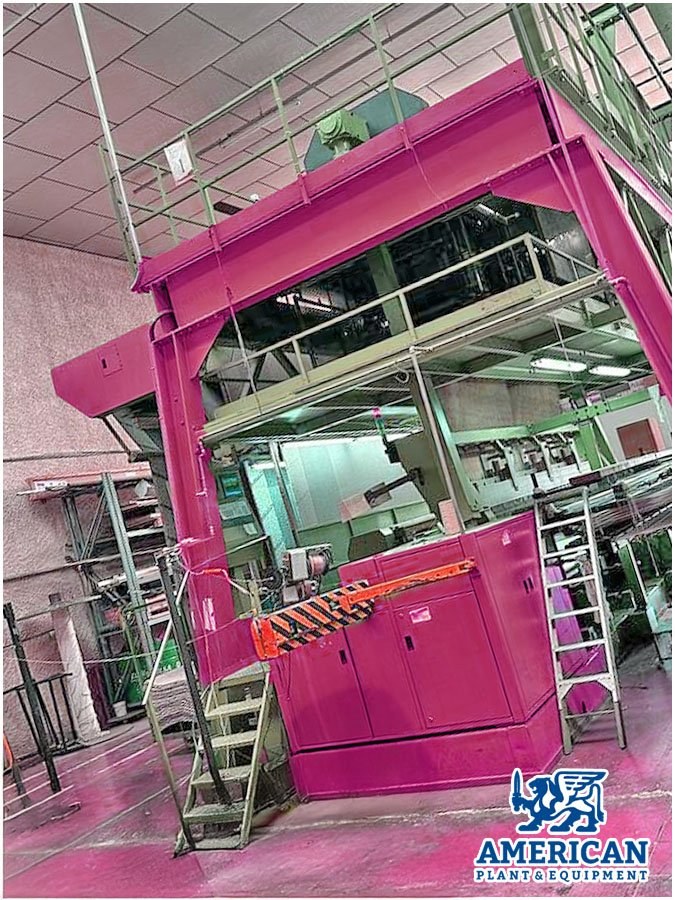

Van de Wiele, CRM72-400, 1993, 4000mm Weaving Width, 5 Colors, 2 PTR Electronic Jacquards

Van de Wiele, CRM72-400, 1993, 4000mm Weaving Width, 5 Colors, 2 PTR Electronic Jacquards Sold

Description

  1. Overview
    1. Carpet loom Van de Wiele type CRM72-400
    2. Brand: Van de Wiele
    3. Model: CRM72-400
    4. Condition: Used
    5. Year of manufacture: 1993
  2. Weaving Specifications
    1. Weaving width 4000mm (157.5 in)
    2. Roller guide
    3. Positive receiving gripper opening with a pressure unit (no rollers)
    4. Weaving structure 1/2V
    5. Recording system: roll-up system for rolling up carpets

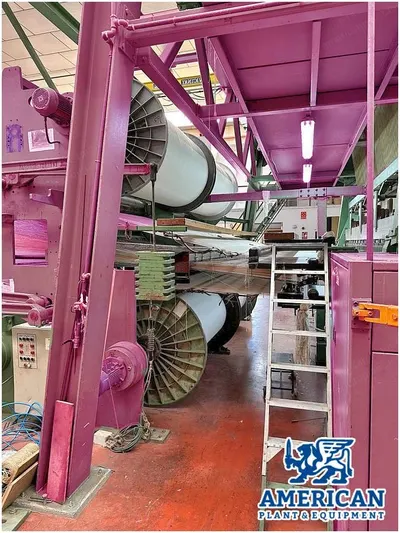

  3. Knife Stones And Chain Boom Stand
    1. Knife stones: number of stones: 2 round stones & 2 flat stones
    2. Chain boom stand: type tree stand: high tree stand for 8 trees
    3. Maximum tree diameter 1250mm (49.2 in) x high tree stand
    4. Tree unrolling system motor-driven
    5. Adjust tension with weights
  4. Reed
    1. Number of reeds: 1
    2. Carpet density: 320 D/M
    3. Carpet width: 4000mm (157.5 in)
    4. Division in pole part 1280 teeth
    5. Width of the selvedge 2 x 50mm
  5. Pre-Winder
    1. Number of pre-winders: 2
    2. Number of coil supports: 1 with 2 platforms of 4 coils each
  6. Electronic Jacquard Machine
    1. Number of heads: 2 PTR electronic jacquards
    2. Number of solenoids used: 6400 harness wires
    3. Weaving structures: ½ weaving structures integrated
    4. Controller: 1 electronic controller
    5. Drive for jacquard: double-sided cardan
  7. Harness
    1. Number of colors: 5
    2. Number of harness wires: 6400
    3. Springs
    4. Lever eye 1080R
  8. Ground Chain Booms
    1. Drive for the ground chain comes from below
    2. Levers length 640mm (25.2 in) 380R
    3. Number of trees: 6
  9. Stop Mechanism
    1. Number of pole stops: 1 with 6400 wires
    2. Number of chain stop mechanisms: 1 for top and 1 for bottom
    3. Latest revision: 2021 electronic conversion from Baldor to Lenze by VDW technician
