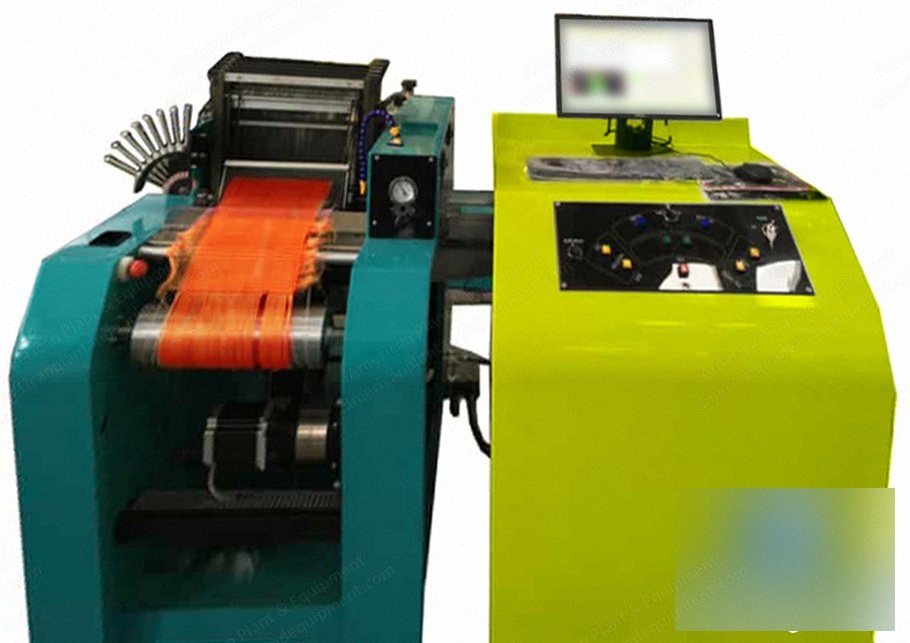

NovaStar, WM418, Automatic Rapier Sample Loom, 12 or 20 or 24 inch Reed Width, 8 Colors (New)

NovaStar, WM418, Automatic Rapier Sample Loom, 12 or 20 or 24 inch Reed Width, 8 Colors

Description

  1. Features
    1. Consists of control part (computerized control platform) and mechanical part (loom)
    2. Weft inserting with rigid rapier, suitable for 7s-100s cotton, terylene/cotton, chemical fiber, and other fabrics
    3. Stepper motor driving let-off device, automatically adjusts warp tension
    4. Imported pneumatic control element, can control up to 20 heald frames, easy to mount and dismount heald frames
    5. Heald frame adopts die drawing aluminium alloy profile with hard oxidation wear-resisting treatment
    6. Adjustable pneumatic controlled beating-up mechanism, large force and adjustable moment of force, suitable for fabrics of high count and high density
    7. Electronic control take-up mechanism driven by imported stepper motor and reducer, 10-300/inch of weft density
  2. Application
    1. Used for sample weaving of various fabrics such as cotton, wool, flax, silk, chemical fiber, and blending in weaving mills, scientific research units, textile institutes, and foreign trade companies
    2. Mechanical design is reasonable, with semi-closed and partially closed construction, beautiful appearance, and safe operation
    3. Previous step motor winding and distribution on both sides and exposed; now changed to focus on one side fully enclosed; pneumatic electronic control device is enclosed instead of bare, dustproof, reduces man-made faults, improves service life
    4. Uses uninterrupted power supply system to ensure machine can continue working during power failure and prevents computer file loss and crashing; friendly interface, easy to operate; movement is coordinated and coherent without misoperation; weft is uniform, faultless, with low filling rate
  3. Specifications
    1. Voltage: AC220V, 50Hz
    2. Capacity: 12 or 20 or 24 inches reed width
    3. Colors: 8 colors
    4. Air consumption: 530L/min max. (12"), 630L/min (20", 24")
    5. Yarn density range: 5-500tex
