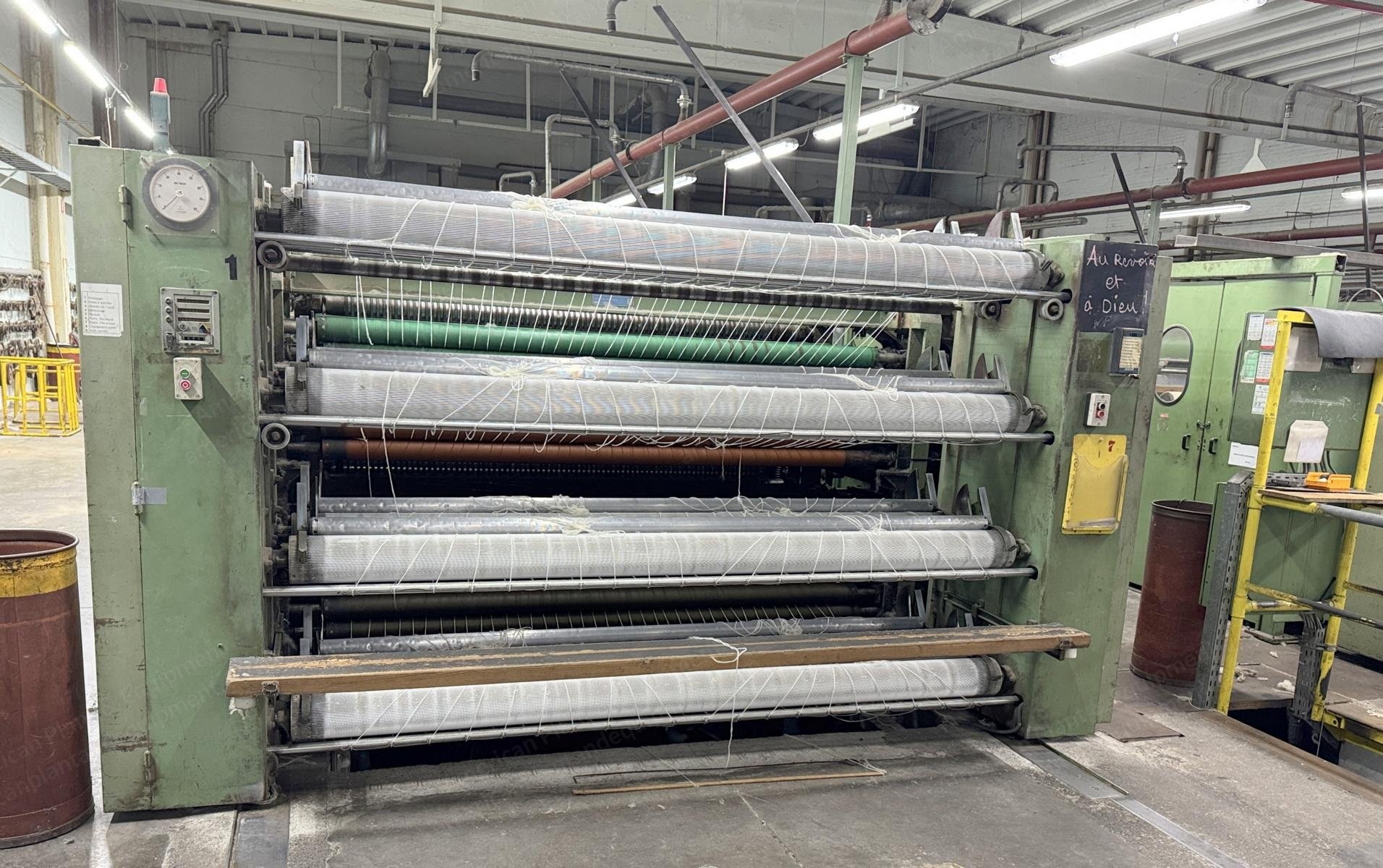

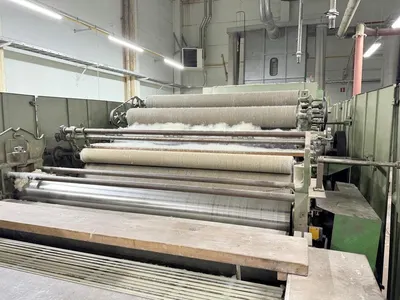

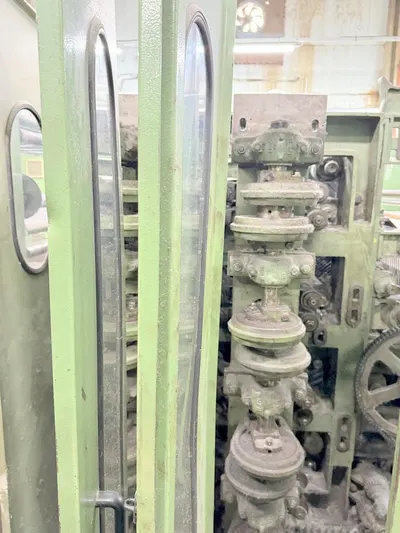

HDB, Galaxy, 1980, 3-Swift Woollen Card, Working Width 2500mm, 160 Good Ends

HDB, Galaxy, 1980, 3-Swift Woollen Card, Working Width 2500mm, 160 Good Ends

Description

  1. Overview

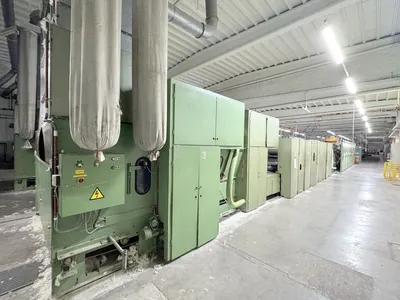

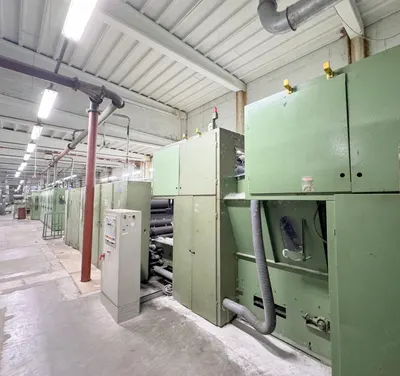

    1. 3-swift woollen carding machine with hopper feeder and galaxy card configuration.
    2. Year of manufacture: 1980; modernized in 2000.
    3. Working width: 2500 mm (98.4 in).
    4. 160 good ends.
    5. Machine is in good running condition; stopped on 30.8.2025.
  2. Feeding System

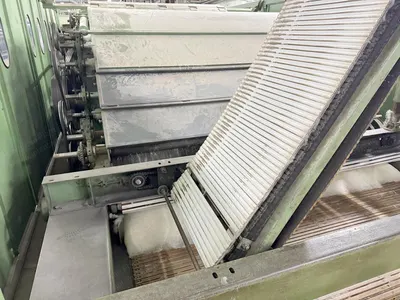

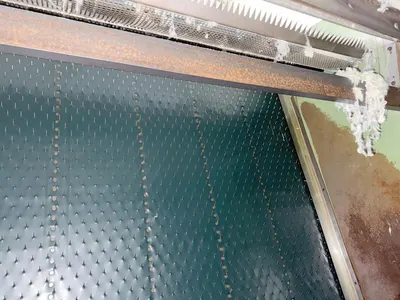

    1. Hopper feeder with chute feeder on top at a height of 3000 mm (118.1 in).
    2. Linked with a second hopper feeder.

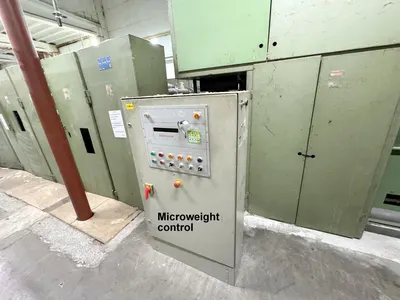

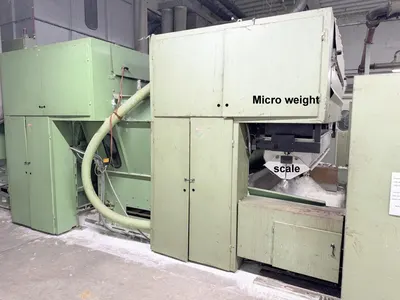

    3. Retrofitted with electronic scale microweight, ensuring the hopper feeder card operates with a tolerance of ± 1%.
  3. Breast Section
    1. Main cylinder diameter: 1250 mm (49.2 in).
    2. 4 pairs of worker and stripper rollers.
    3. Rigid wires.
  4. First Swift

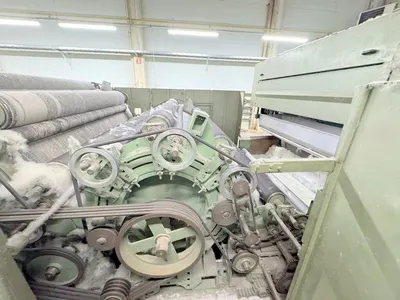

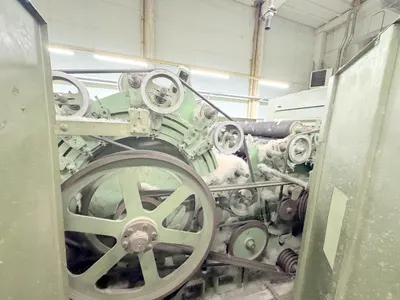

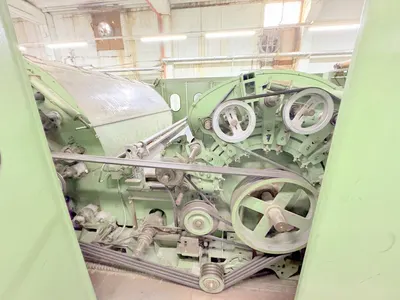

    1. Main cylinder diameter: 1500 mm (59.1 in) with 5 pairs of worker and stripper rollers.
    2. Doffer diameter: 1250 mm (49.2 in).
    3. Fancy roller.
    4. Flexible clothing with Peralta system.
    5. Wideband layer.
  5. Second Swift
    1. Main cylinder diameter: 1500 mm (59.1 in) with 5 pairs of worker and stripper rollers.
    2. Doffer diameter: 1250 mm (49.2 in).
    3. Fancy roller.
    4. Flexible clothing with transfer roller.
  6. Third Swift
    1. Main cylinder diameter: 1500 mm (59.1 in) with 5 pairs of worker and stripper rollers.
    2. Doffer diameter: 1250 mm (49.2 in).
    3. Fancy roller.
    4. Flexible clothing.
    5. High-speed flying comb with delivery speed up to 40 m/min.
    6. Double apron condenser.
    7. 160 good ends.

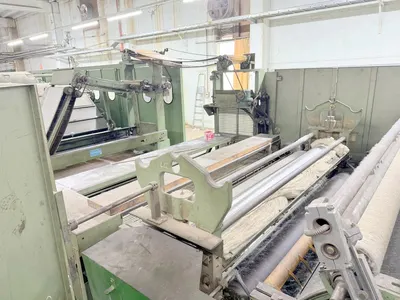

    8. Double winder frame with 8 bobbins, each with 20 ends.
  7. Condition and Features
    1. All main cylinders and doffers are equipped with a pneumatic cleaning system.
  8. Specifications
    1. Delivery speed: until 40 m/min.
