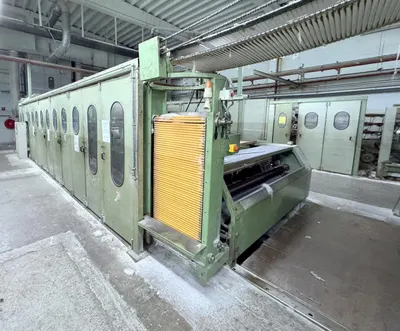

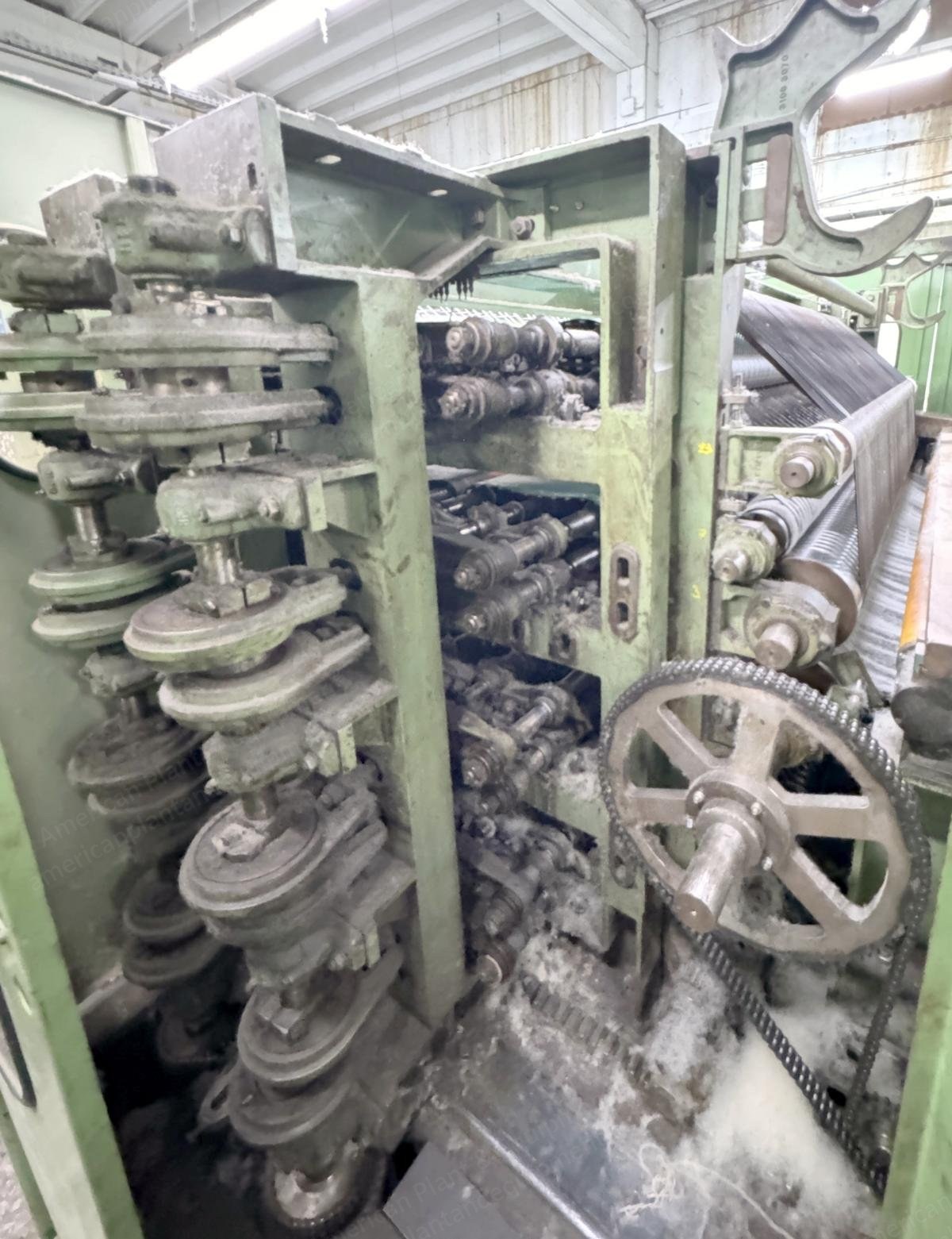

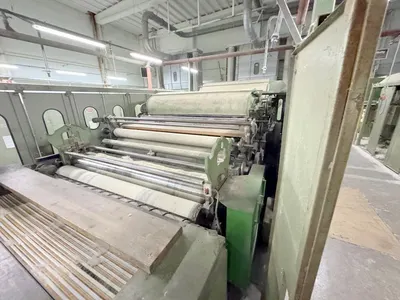

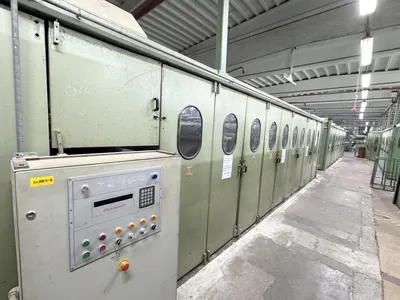

HDB, Galaxy, 1981, 3-Swift Woollen Card, Working Width 2500mm, 160 Good Ends

HDB, Galaxy, 1981, 3-Swift Woollen Card, Working Width 2500mm, 160 Good Ends

Description

  1. Overview
    1. 3-swift woollen carding machine
    2. HDB, Galaxy, Card model
    3. Year of manufacture 1981, modernized in 2000
    4. Working width 2500 mm (98.4 in)
    5. 160 good ends

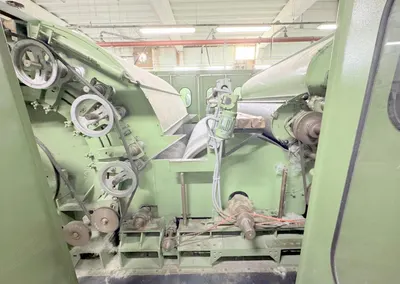

  2. Feeding System

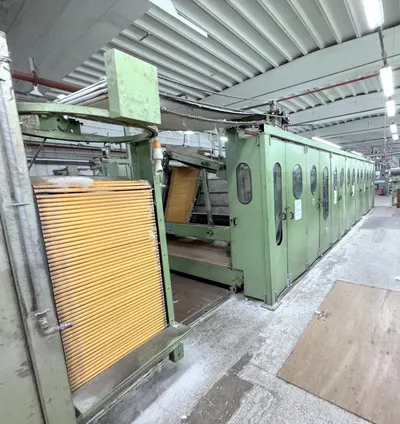

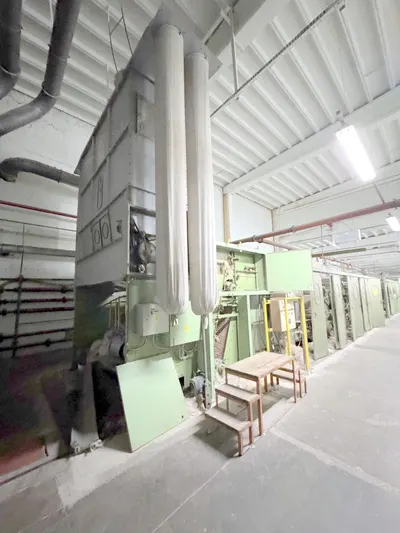

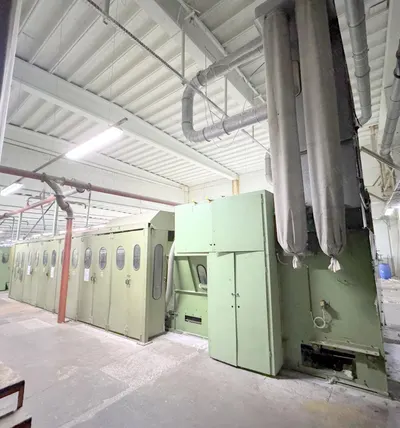

    1. Hopper feeder with chute feeder on top, total height 3000 mm (118.1 in)
    2. Linked with a second hopper feeder

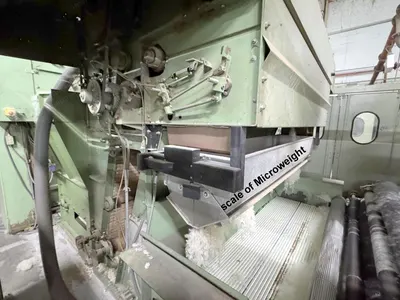

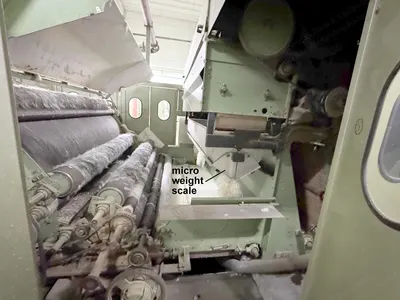

    3. Retrofitted with electronic scale microweight system
    4. Ensures hopper feeder card operates with a tolerance of ±1%
  3. Breast Section
    1. Main cylinder diameter 1250 mm (49.2 in)
    2. 4 pairs of worker and stripper rollers
    3. Rigid wire clothing

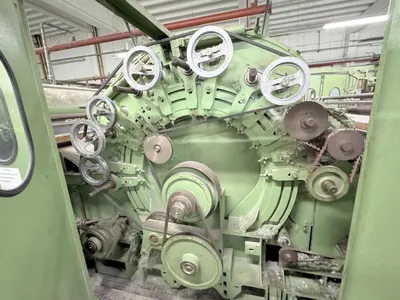

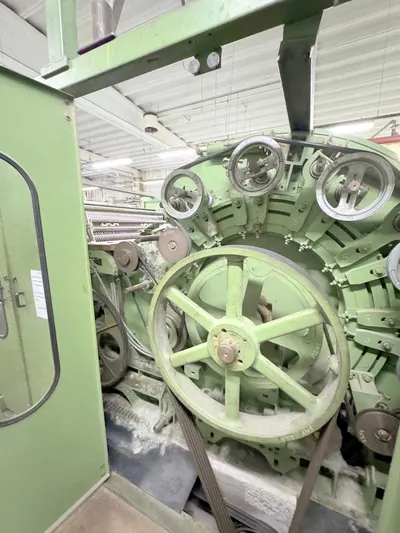

  4. First Swift
    1. Main cylinder diameter 1500 mm (59.1 in)
    2. 5 pairs of worker and stripper rollers
    3. Doffer diameter 1250 mm (49.2 in)
    4. Fancy roller
    5. Flexible clothing, Peralta type
    6. Wideband layer
  5. Second Swift
    1. Main cylinder diameter 1250 mm (49.2 in)
    2. 5 pairs of worker and stripper rollers
    3. Doffer diameter 1050 mm (41.3 in)
    4. Fancy roller
    5. Flexible clothing transfer roller
  6. Third Swift
    1. Main cylinder diameter 1500 mm (59.1 in)
    2. 5 pairs of worker and stripper rollers
    3. Doffer diameter 1250 mm (49.2 in)
    4. Fancy roller
    5. Flexible clothing high-speed flying comb
  7. Specifications

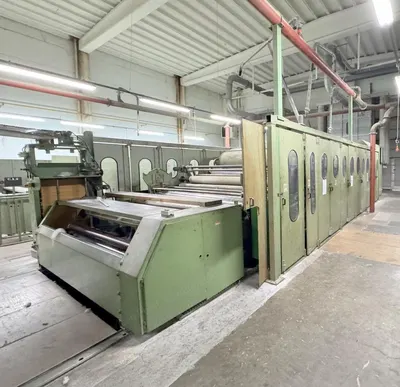

    1. Condenser: Double apron condenser

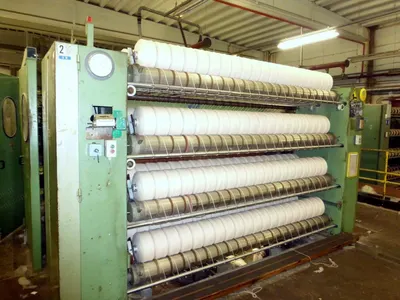

    2. Winder frame: Double winder frame with 8 bobbins each 20 ends
    3. Delivery speed: until 40 m/min
