Number of colors: 8, plus a 2-color downstream stack unit
Machine can be seen in production
Specifications
Max web width: 1350 mm
Max printing width: 1300 mm
Min to max printing repeat: 380 to 1100 mm
Max mechanical speed: 300 m/min
Repeat up to 1100 mm
Materials
OPP, PP: 20-40 µm
Aluminum: 10-50 µm
POF: 19 µm
HDPE: 9-100 µm
Paper: 30-200 g/m²
PVC: 19-300 µm
Unwind and Rewind
Unwind type: Automatic turret
Max unwind reel diameter: 1000 mm
Rewind type: Automatic turret
Max rewind reel diameter: 1000 mm
Drying and Auxiliary Equipment
Drying type: Gas
Video camera: Yes
Corona treater: Yes
Inline slitting: Yes
Included Components
Number of aniloxes: 20
Number of intermediates: 2 sets
Number of sleeves: 319
Mounting device included: Yes, optional for additional price a Microflex MS1700 V3 plate mounter from 2015
Condition and Notes

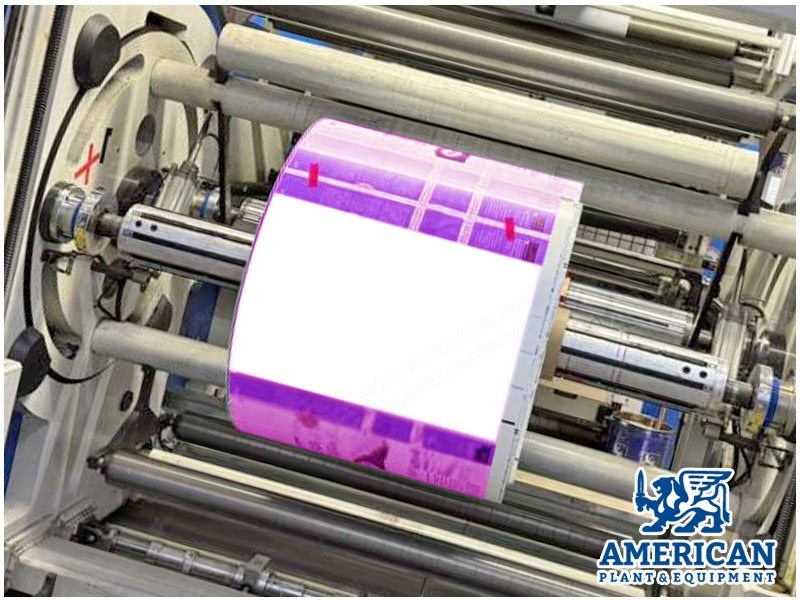

The Expert 8+2 color gearless printing press is part of a well-known generation of modern CI flexographic printing machines designed for converters who require high print quality, efficiency and flexibility
Expert presses are recognised in the flexible packaging industry for their stable performance, consistent print results and durable construction
As a gearless model, this press benefits from precise servo-driven technology, which reduces mechanical wear and supports smooth operation even at higher production speeds
This particular machine, built in 2011, offers a printing width of 1350 mm, making it suitable for a broad range of flexible packaging applications such as films, laminates and other web-based materials
One of its most notable technical features is the repeat length of up to 1100 mm, which is relatively high for machines in this category, providing converters with extended production possibilities, especially for larger format designs or specialised packaging jobs that require more print length flexibility
A major advantage of this model is the integrated 2-color downstream flexo unit, which can be used not only for additional color work but is also ideal for lacquering and applying various coatings, enhancing the versatility of the production process
Whether for spot applications, protective varnishes or simple two-color add-ons, the downstream unit increases efficiency by reducing the need for separate finishing equipment
Because of the combination of its wide web, long repeat capability and downstream lacquering functionality, this Expert 8+2 color press is a rare and highly sought-after machine on the used market, offering converters a unique opportunity to upgrade capacity with a reliable and multifunctional flexographic press
