1. Number of knives: 20 pieces, size Φ450 x 60mm (OD. x T), H13-detachable type
2. Number of spacers: 20 pieces.., size Φ280 x 60mm (OD. x T), 45 # steel
3. Number of shafts: 2 pieces, size Φ190 x 1830mm (OD.), 42CR
4. Chamber dimensions, 1200 x 980mm (length x width)
5. Motor power, 55 kW x 2 sets (75 HP x 2)
6. Reducer, GTN13 model x 2 sets, Palent model
7. Output size strips or pieces
II. Shredder Main Components Part
2 Gear reducer: Guomao - well known, top reducer brand, established in 1993

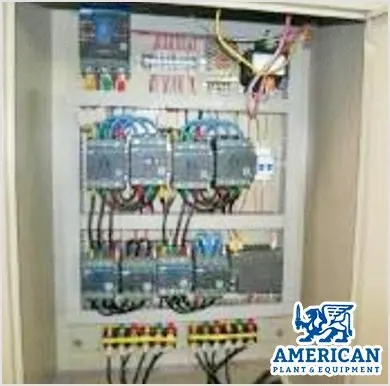

3 Electrical parts: Schneider - world famous brand
4 Blade/spacer material: H13 - material with excellent rigidity and abrasion resistance. HRC 55-58, detachable type
5 Shaft material: 40CR - material with great comprehensive mechanical properties, good low temperature impact toughness and low notch sensitivity. HB280-320
6 Chamber box material: Q345 steel
7 Control system: Siemens touch screen control panel PLC - easy to operate and very responsive (English language)
8 Bearing/coupling: Harbin – over 60 years experience in bearing design

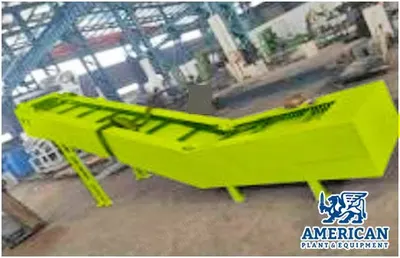

9 Input and output conveyors: steel material
Optional Configurations
1 XP motor: dust-proof and explosion-proof motor
2 XP controller: dust-proof and explosion-proof electrical cabinet
3 Blade material: 55SiCr/9CrSi/D2/SUS304/Hardrox 500 /550/650/9Cr2Mo (for detachable type blade)

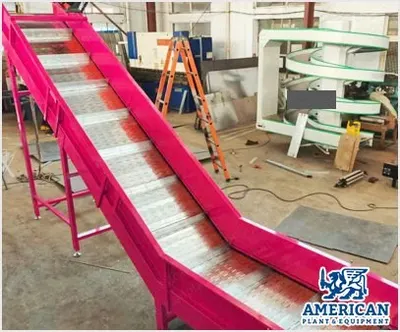

4 Conveyors: input and ouput, PVC or iron material
5 Hydraulic feeding arm: assists for easy material catching
III. Shredder Mechanical Parts – A. Design and Structure

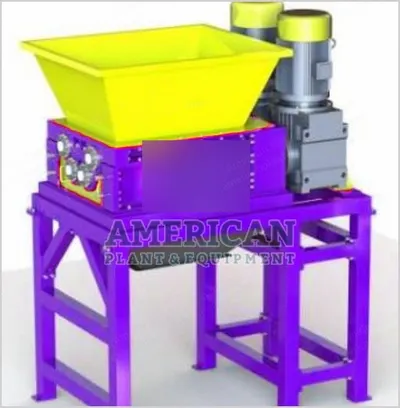

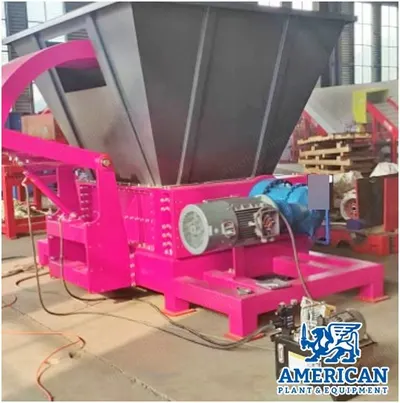

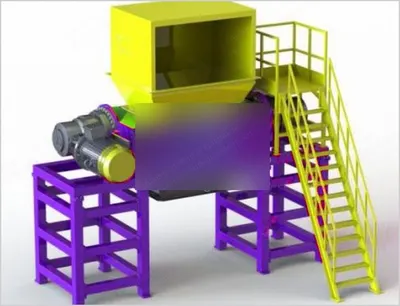

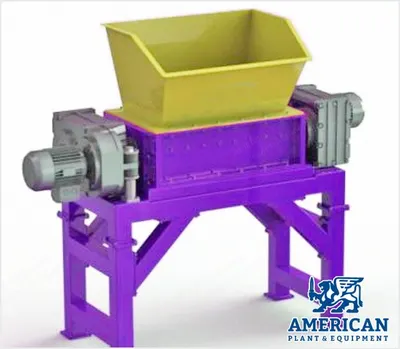

Main body view
Advantages
Heavy moving knives, high crushing efficiency knives and fixed knives are cast with alloy steel, strong, long service life, thick iron frame plate, high torque resistance, very strong, easy to adjust, low maintenance cost, economical and durable.
Capacity depends on the specific use and should be determined according to the actual density and shape of the material to be shredded.

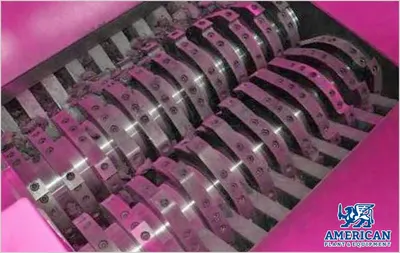

Chamber Part

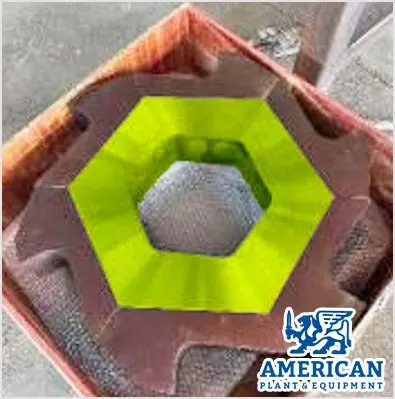

1. Rotary blade
2. Spacer
3. Shaft
The case of the twin-shaft shredder is an important part of the shredder unit, which includes the blade, the spacer, the shaft and the shredder chamber.
Users can customize the shredding machine cases of different sizes according to the production requirements of different materials prior to ordering.

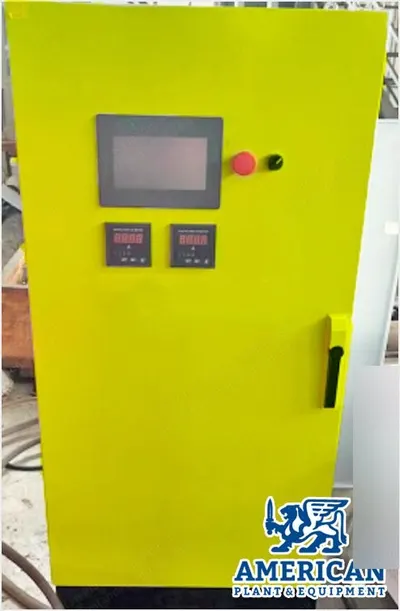

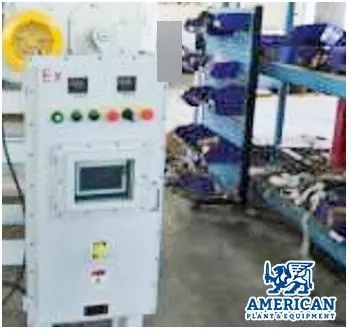

Control Panel Details
1. The display screen is a 7-inch display, Siemens touch SmartLine series, with precise touch and real-time control.
2. The screen controls the machine's forward rotation, reverse rotation, and the conveyor belt (optional configuration, according to customer requirements) transmission. Time can also be programmed.
3. The device will automatically reverse when it encounters jammed material during operation, ensuring that the machine will not damage the motor due to load.
4. The operation screen is easy to learn and practical.

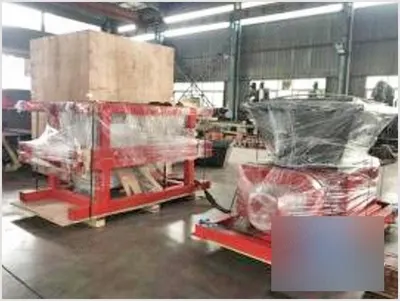

Shipping
Requires two 40 foot high cube containers to ship
