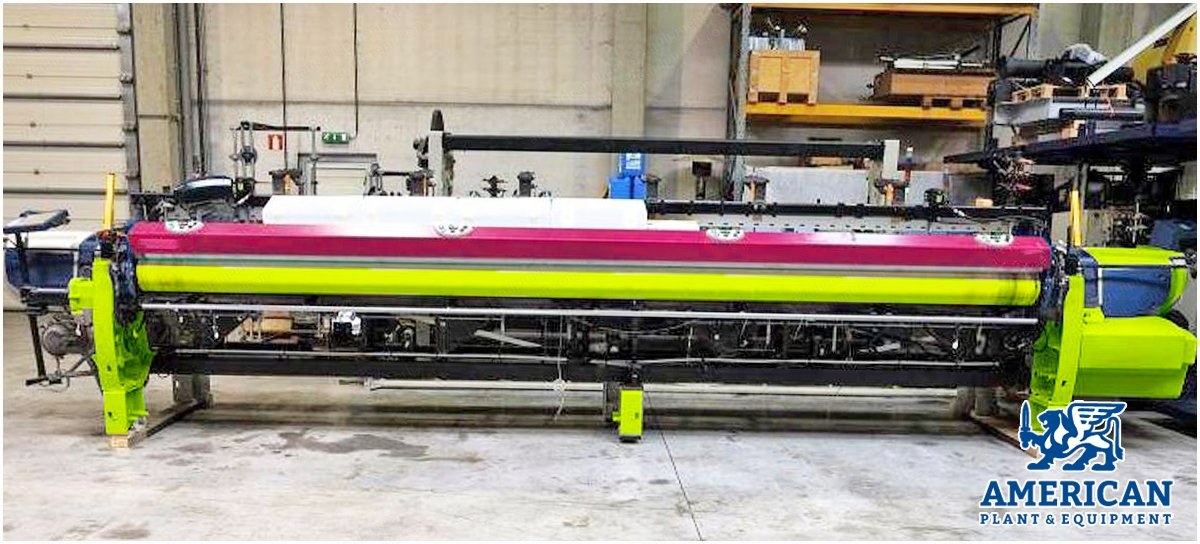

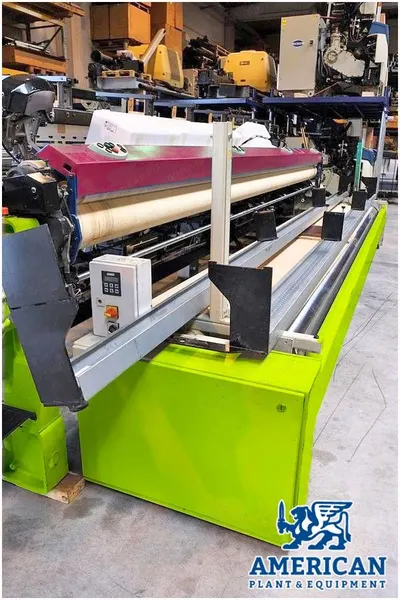

Description Overview Picanol rapier loom Type Optimax-4-R-540 Year of construction 2012 Working width 5400 mm 4 colors Electronic dobby Staubli type 2622B 12 levers installed Controlled positive rapier GPG Included Equipment Sumo Elo RHS+LHS (prepared for split beam, but without gear LHS and without mid support) Etu 4 QS colors Creel with bobbin switch sensor for 4 bobbins Feeder support 4 feeders Iro type XD X3 with PFL 10 heald frames XLF xtra light 152 DRC30 13” Grob detection with 6 warp stop motion bars Single warp beam Q4 Ø 800 mm (warp tube diameter 270 mm) Direct warp control type backrest Warp beam position 14 1 heavy and 1 standard pressure roll Elsy L and R Touchscreen ID3-3 3 steps Waste system RHS and LHS with 2 aspiration motors External batching motion Neuenhauser type DW 3133 LXT (WOB 5500)
