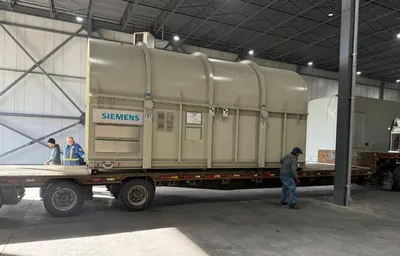

Siemens, SGT-600 Core Engine, 25 MW, 60Hz, Dry Low Emission (DLE)

Description

Overview
1. New, unused
2. Immediate availability
3. Model: Siemens SGT-600 core engine
4. Application: Spare core
Specifications
1. Nominal output: 25 MW shaft ISO / 45 MW heat
2. Exhaust flow: 80 kg/s at 540°C
3. Ambient range: -15°C to +42°C
4. Combustion system: Dry low emission (DLE)
5. Seismic zone: UBC zone 4
6. Area classification: Offshore zone 1 IIB T3 (also suitable for zone 2)
Scope Of Supply And Terminal Points
1. Part 1 – General: The scope of supply defines a functioning unit within the specified terminal points.
2. Alternative configurations are available upon request.
3. Part 2 – Technical specification: Application: Spare core
4. Nominal output: 25 MW shaft power (ISO: 15°C, sea level, no inlet/exhaust pressure losses, 60% relative humidity), 45 MW heat output (ambient condition dependent)
5. Exhaust gas flow: 80 kg/s at 540°C
6. Design conditions: Ambient temperature range from 15°C to +42°C
7. Seismic zone: UBC zone 4
8. Area classification: Electrical material rated for offshore zone 1 IIB T3 during normal operation; electrical equipment energized after loss of enclosure ventilation remains suitable for zone 1
9. Combustion system: Dry low emission (DLE) technology
