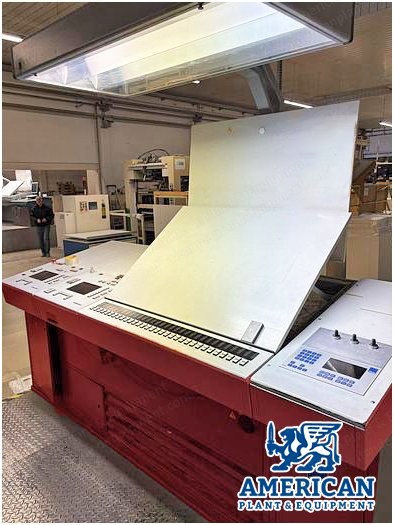

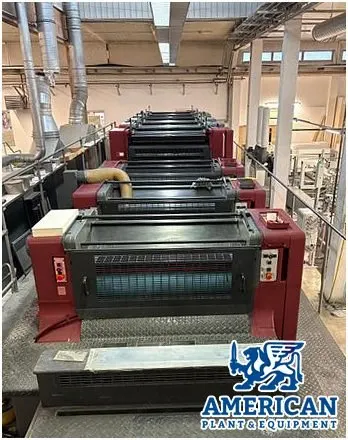

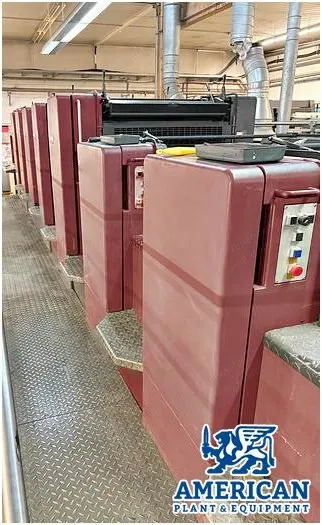

Heidelberg, CD 102-5-LYLX, 1997, 5 Colors, Double Coating Unit, 720x1020mm, 15000 Sheets/Hour

Heidelberg, CD 102-5-LYLX, 1997, 5 Colors, Double Coating Unit, 720x1020mm, 15000 Sheets/Hour

Description

  1. Overview
    1. Heidelberg CD 102-5-LYLX, year 1997
    2. Machine is raised
  2. Coating and Drying
    1. Double coating unit
    2. Coating system
    3. Grafix IR dryer
    4. Intermediate dryer
    5. Extended delivery
  3. Control System
    1. Heidelberg CPC 1.04
  4. Specifications
    1. Maximum paper size: 720 × 1020 mm
    2. Minimum paper size: 340 × 480 mm
    3. Maximum print size: 710 × 1020 mm
    4. Maximum thickness: 1.0 mm
    5. Gripper margin: 10 to 12 mm
    6. Speed: 15,000 sheets/hour
    7. Plate size: 790 × 1030 mm
    8. Plate thickness: 0.30 mm
