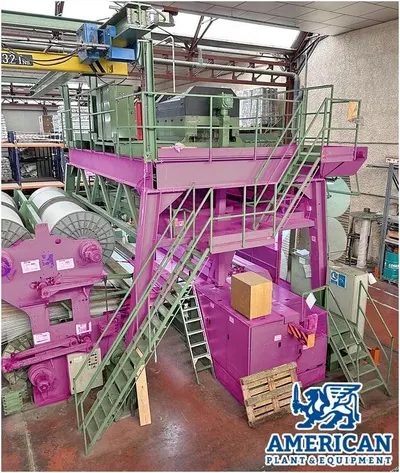

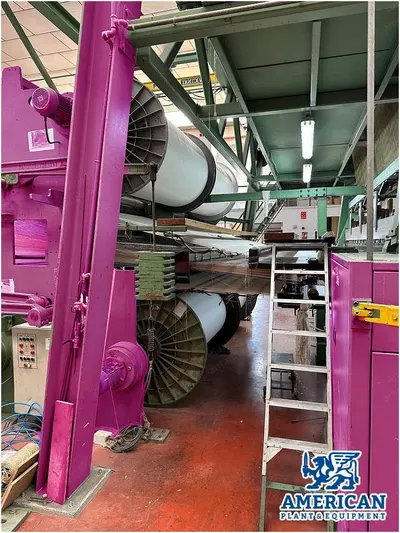

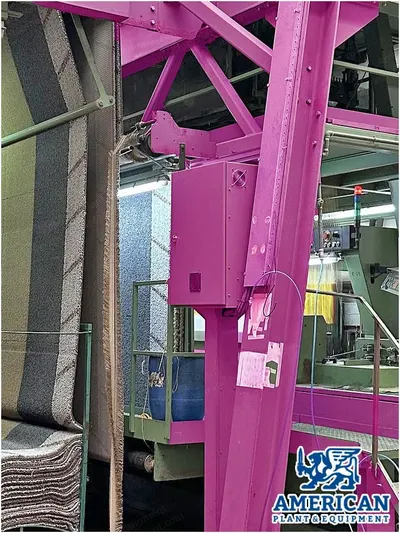

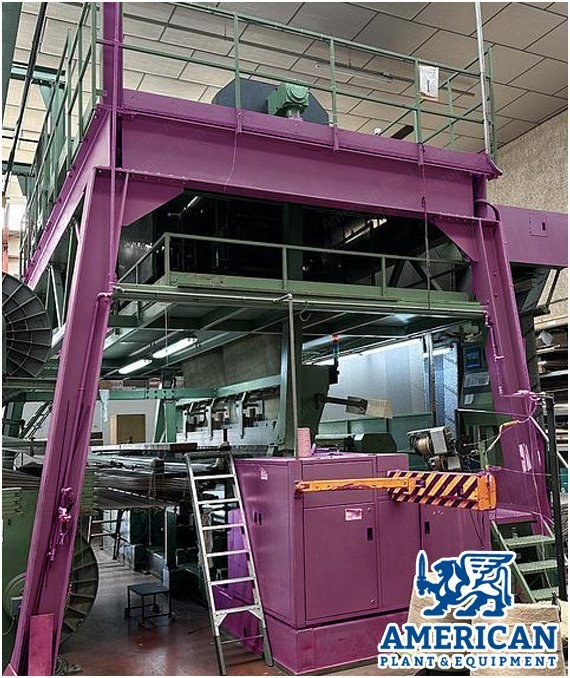

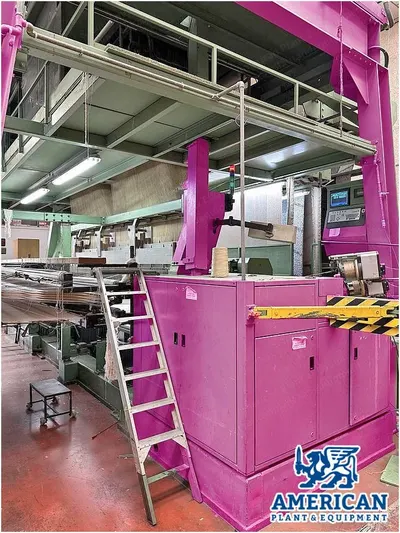

Description Overview Van de Wiele carpet loom Type CRM72-400 Weaving width 4000 mm Roller guide Positive receiving gripper opening with a pressure unit (no rollers) Weaving structure 1/2V Brand: Van de Wiele Model: CRM72-400 Year: 1993 Condition: used Recording System Roll-up system for rolling up carpets Knife Stones Number of stones: 2 round stones and 2 flat stones Chain Boom Stand Type tree stand: high tree stand for 8 trees Maximum tree diameter 1250 mm x high tree stand Tree unrolling system motor-driven Adjust tension with weights Reed Number of reeds: 1 Carpet density: 320 d/m Carpet width: 4000 mm Division in pole part 1280 teeth Width of the selvedge 2 x 50 mm Pre-Winder Number of pre-winders: 2 Number of coil supports: 1 with 2 platforms of 4 coils each Electronic Jacquard Machine Number of heads: 2 PTR electronic jacquards Number of solenoids used: 6400 harness wires Weaving structures: ½ weaving structures integrated Controller: 1 electronic controller Drive for jacquard: double-sided cardan Harness Number of colors: 5 Number of harness wires: 6400 Springs Lever eye 1080R Ground Chain Booms Drive for the ground chain comes from below Levers length 640 mm 380R Number of trees: 6 Stop Mechanism Number of pole stops: 1 with 6400 wires Number of chain stop mechanisms: 1 for top and 1 for bottom Latest revision: 2021 electronic conversion from Baldor to Lenze by VDW technician
