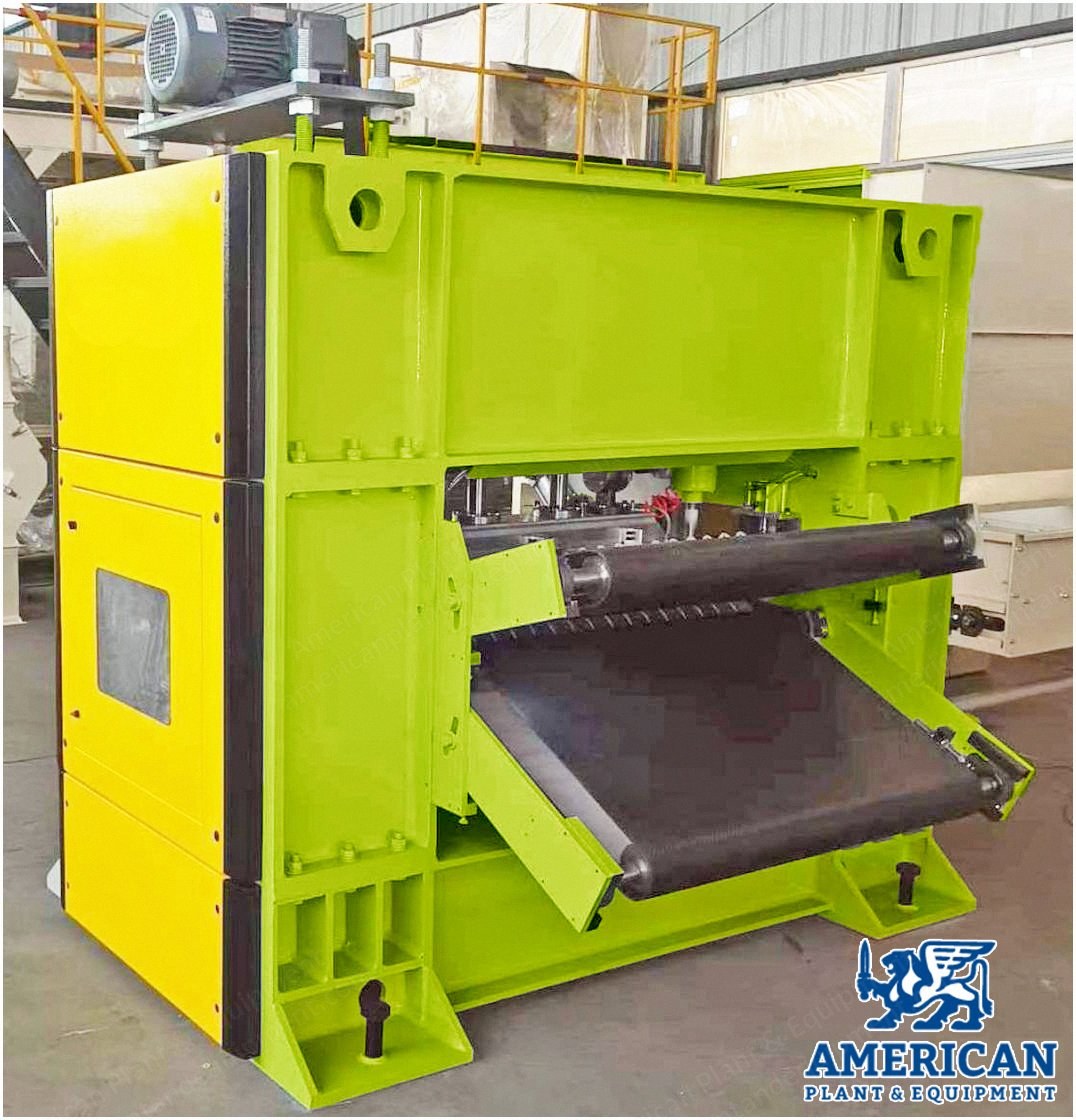

NovaStar, NN475, Working Width 1000mm, Down Stroke, 500 RPM (New)

NovaStar, NN475, Working Width 1000mm, Down Stroke, 500 RPM

Description

  1. Overview
    1. Medium speed needle punching machine
    2. Working width: ≤1000 mm
    3. Gsm range: 100 to 1000 g/m² (for reference, according to other machines and fibers)
    4. Electric control mode: ordinary electrical control with control panel
    5. Power supply: 480 V / 60 Hz (specified by customer)
    6. Total power: electrical power ~6.6 kW
    7. Inverter: Siemens brand
    8. Motor: Siemens-Beide brand
    9. Electrical apparatus: Schneider Electric
  2. General Parameters
    1. Working width: 1000 mm
    2. Needling frequency: ≤500 rpm
    3. Stroke: 60 mm (made to order)
    4. Needle density: 1000 to 7000 N/meter (design to need)
    5. Needling type: down stroke single needle plate x1
