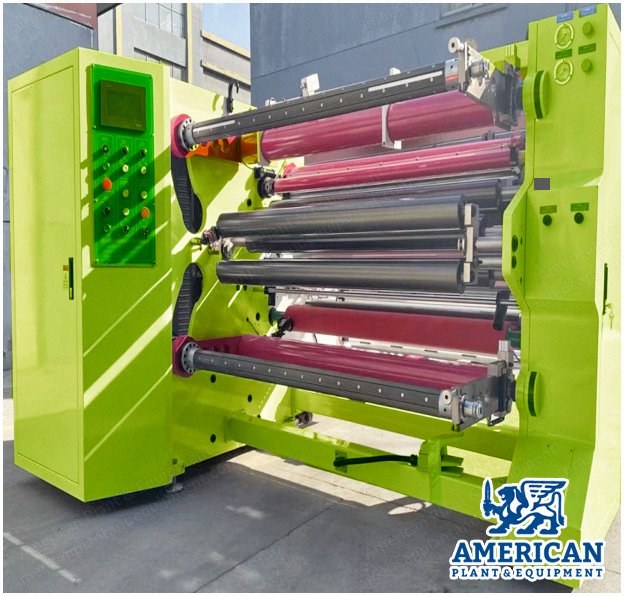

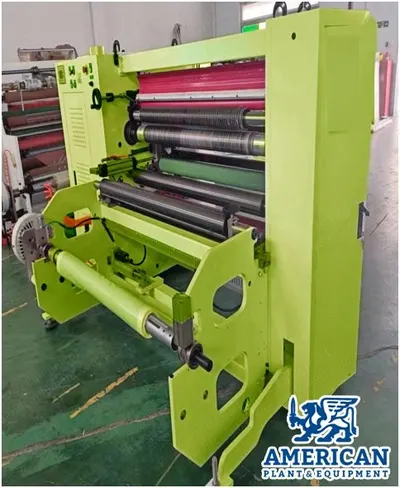

NovaStar, SR253, Double Shaft Slitting & Rewinding Machine, Width 1600mm, 15kW (New)

NovaStar, SR253, Double Shaft Slitting & Rewinding Machine, Width 1600mm, 15kW

Description

  1. Overview
    1. Double shaft slitting and rewinding machine
    2. For textile webs, nonwoven webs, paper, adhesive tape, label, etc.
  2. Unwind Section
    1. Unwind base: integral shaft type movable base - 1 set
    2. Unwind shaft: pneumatic compressed shaft 3" - 1 set
    3. Unwind brake: electromagnetic brake 20kg - 1 set
    4. Unwind web tension: PLC diameter auto calculation - 1 set
  3. Rewind Section
    1. Rewind driver system: 3 motors in a system to control tension - 1 set Japan Mitsubishi
    2. Rewind motor: A.C. motor 5 HP control by tension inverter - 1 set ABB
    3. Rewind system: pneumatic compressed shaft 3" - 2 sets
    4. Rewind gap roller: position auto activating by PLC control - 1 set
    5. Trim remove device: strong blower with motor A.C. 5HP - 2 sets
    6. Spread roller: adjustable bowed roller: 100mm - 1 set
    7. Maintenance kit: tools and instruction - 1 set
  4. Electrical Section
    1. Control system: PLC programmable unit and Schneider inverter bus system - 1 set Japan Mitsubishi
    2. Control panel: touch screen (for setting, tension, length, etc.) - 1 set French Schneider
    3. Rewind tension control: ultra-sonic detect diameter into PLC, to control E/A converter output tension - 2 sets
    4. Control panel box: connected control frame with - 1 set
  5. Slitting Knife
    1. Shear cutter: male knife stand roller - 1 set
    2. Female knife stand roller: - 1 set
    3. Male knife set: male knife set 105 x 60 x 20T (movable) - 15 sets
    4. Female knife: female knife sleeve O.D.105 x I.D.80 x T30 (moveable) - 15 sets
    5. Length x width x height: 3040 x 1900 x 1600mm
    6. Weight: NW 2200kg, GW 2400kg
    7. Total power: 15kW
  6. Specifications
    1. Capacity: Speed 200 m/min, Unwind 800mm, Rewind 650mm
