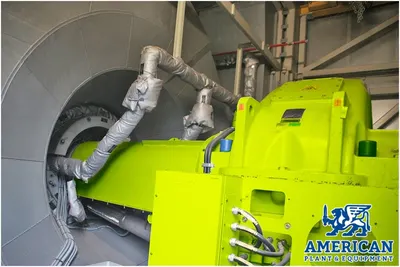

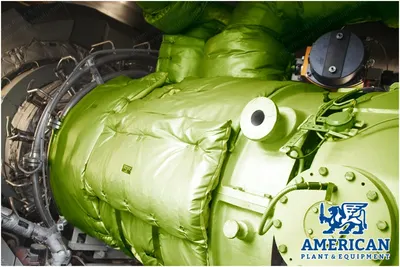

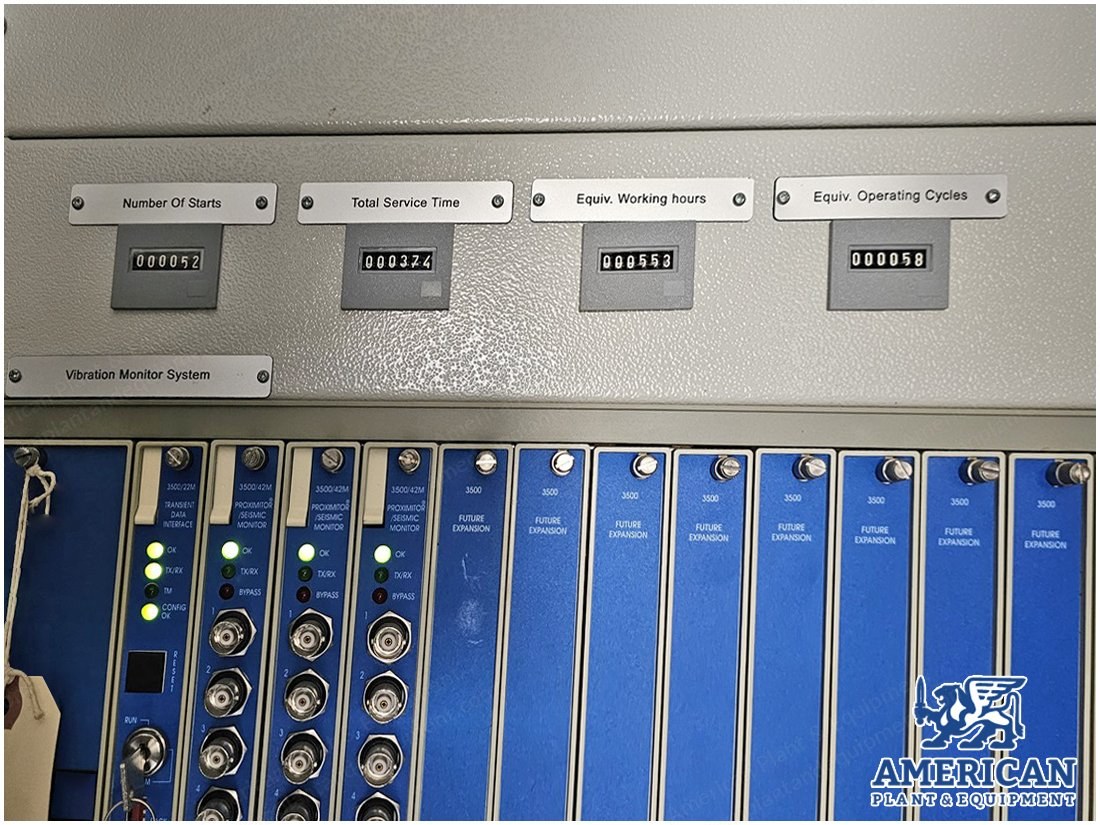

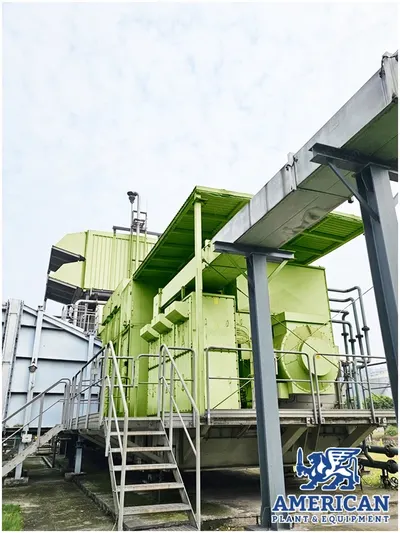

Siemens, SGT-600, 2011, 50 Hz, DLE Combustion, 7700 RPM

Siemens, SGT-600, 2011, 50 Hz, DLE Combustion, 7700 RPM

Description

  1. Overview

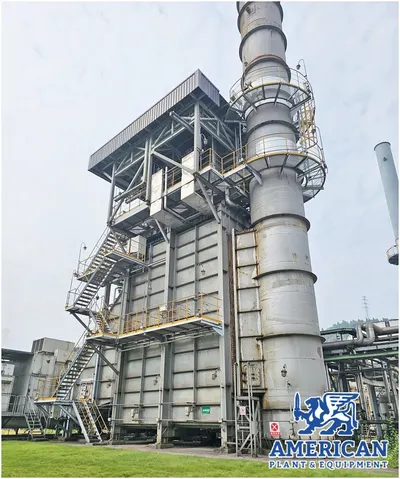

    1. Sgt-600 in combined cycle

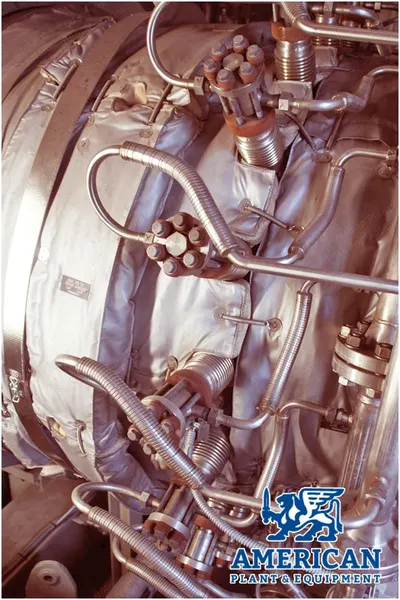

    2. Gas turbine: 1 x sgt-600
    3. Year: 2011
    4. Combustion chamber: dle combustion chamber and gaseous fuel capability
    5. A summary of the nominal performance calculation is enclosed on the following pages
  2. Specifications
    1. Altitude: 329 m above sea level
    2. Barometric pressure: 0.97435 bar
    3. Inlet pressure loss: 7.00 mbar
    4. Outlet pressure loss: 25.00 mbar
    5. Power turbine igv angle: 27.00 degree(s)
    6. Specified tbo: 40000 eoh
    7. Fuel: dazhou
    8. Lhv: 46865.0 kj/kg
    9. Fuel temperature: 25.0 c (ref. temperature 25c)
    10. Generator drive 50 hz with gear
    11. Power factor: 0.90
    12. Power turbine: 7700 rpm
  3. Spare Parts
    1. Converter varispeedf7 clmr c4037, quantity 1
    2. Converter varispeedf7 clmr c40p7, quantity 1
    3. Powercontroller powercon service, quantity 1
    4. Motor 1.4kw, 380v, 3.1a, 2828r/min, quantity 1
    5. Air opening, quantity 1
    6. Differential pressure transmitter -4-2000kpa, quantity 1
    7. 3500 card 92 card, quantity 1
    8. Siemens card 6gk1161-3aa01, quantity 1
    9. 7401 oa jaquet, quantity 2
    10. 6gk7443-1ex20-oxeo, quantity 1
    11. Siemfns 6gk7443-1ex20-oxeo, quantity 1
    12. Godsm ottagning 6gk5204-2bb10-2aa3, quantity 1
    13. Filter cgt-hf-p-e10-592x592x292-01, quantity 25
    14. Filter cfss-f7-592/592/640-10-25, quantity 40
