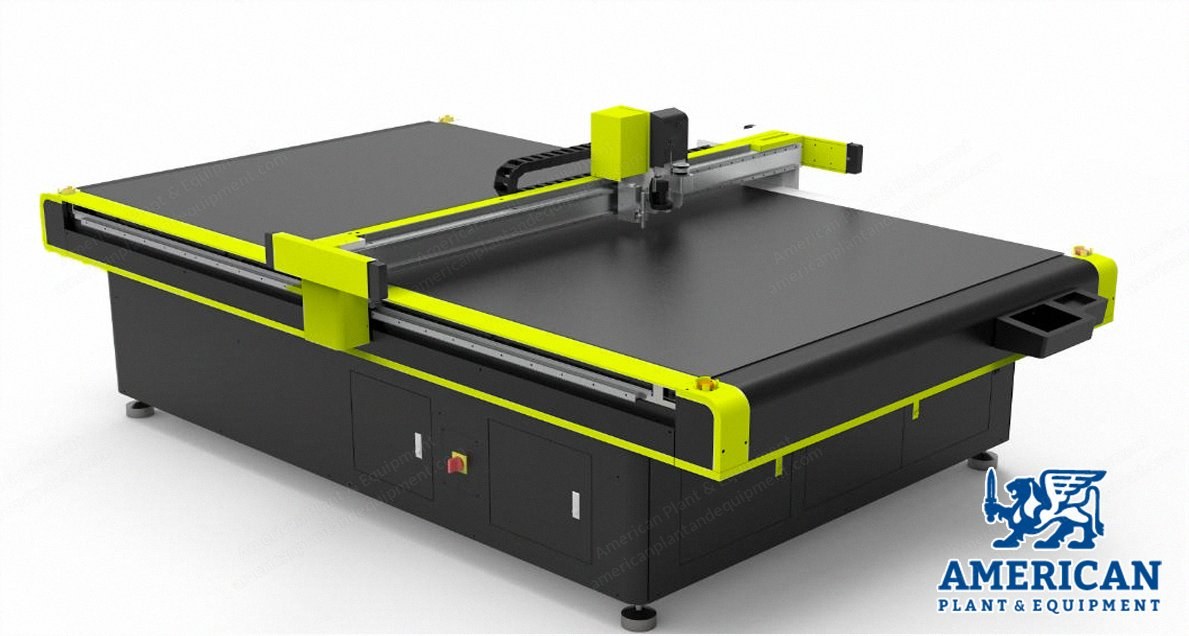

NovaStar, DN138, Cutting Machine, Working Area 1300x2500mm, High Power Oscillating Cutting Tool, 9 kW Vacuum Pump (New)

NovaStar, DN138, Cutting Machine, Working Area 1300x2500mm, High Power Oscillating Cutting Tool, 9 kW Vacuum Pump

Description

  1. Overview

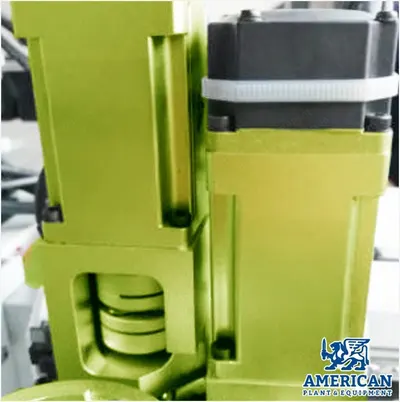

    1. Multifunctional head
    2. 1 x high power oscillating cutting tool

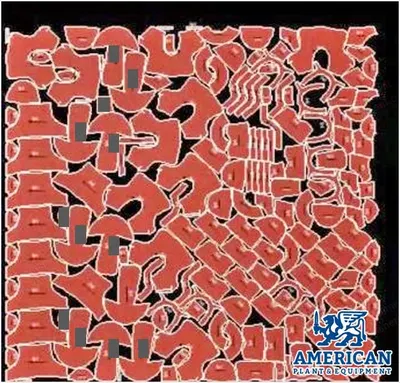

    3. 1 x projector nesting, manual type
    4. 1 x 30 blades
  2. Working Area
    1. 1300 x 2500 mm (width x length)
  3. Transmission Interface
    1. Ethernet
  4. Safety Devices
    1. Emergency button
    2. Anti-collision device
    3. Infrared sensor
  5. Performance Specifications
    1. Max cutting speed: 1200 mm/s
    2. Translational velocity: 1500 mm/s
  6. Applicable Materials
    1. Skirting leather 6 to 8 mm
    2. Cutting thickness: 0.1 to 20 mm (subject to material)
  7. Drive System

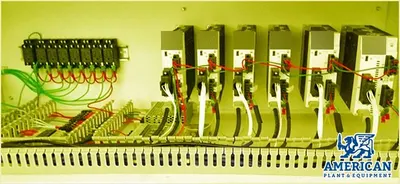

    1. Panasonic servo motor: 1 x x axis 750 w, y axis 400 w, z axis and w axis 100 w
    2. Rack and linear rail
  8. Fixed Mode
    1. Vacuum absorption

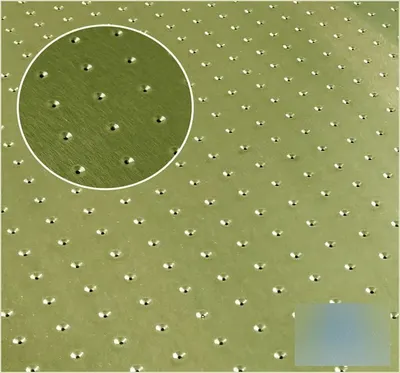

    2. Aluminum suction platform with honeycomb structure

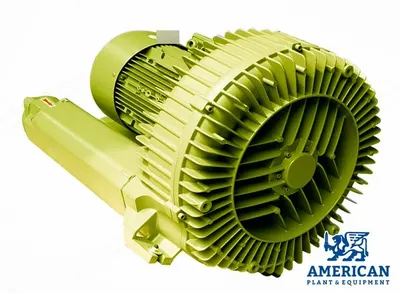

    3. 9 kw vacuum pump
    4. Different zones of suction
  9. Electrical Specifications
    1. Supply voltage: single phase 220 v ± 10%
    2. Three phase 220 v ± 10%
    3. Frequency: 50 hz / 60 hz
    4. According to client’s actual voltage
