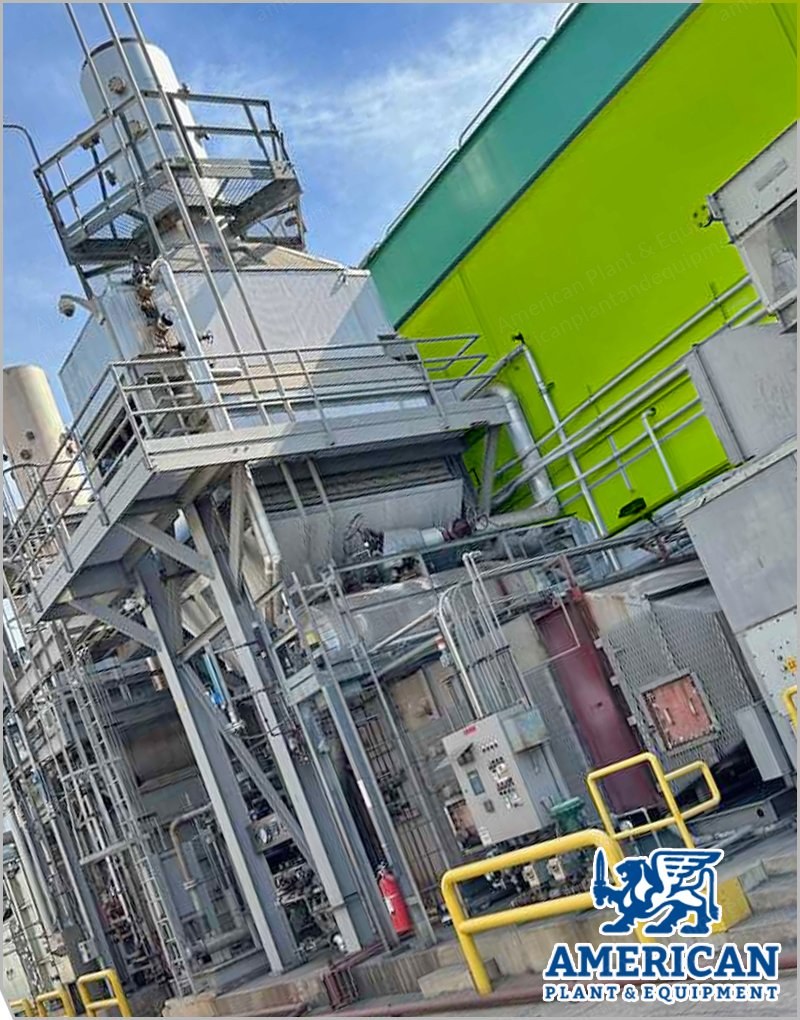

Solar, Centaur 40, 1998, 3.5 MW, 60 Hz, 4160V, Natural Gas

Solar, Centaur 40, 1998, 3.5 MW, 60 Hz, 4160V, Natural Gas Sold

Description

  1. Overview
    1. Brand: Solar
    2. Model: Centaur 40
    3. Year: 1998
    4. Fuel type: Natural gas
    5. Rating: Continuous
    6. Original package 1998, total package hours 230,891
  2. Specifications
    1. Power: 3500 kW
    2. Generator rated at: 4375 kVA
    3. Voltage: 4160 V
    4. Frequency: 60 Hz
    5. RPM: 1500
    6. 3 ph
  3. Condition
    1. Condition: Used
    2. Warranty: No
    3. Hours: 17,522 on new turbine
    4. C40 turbine fully replaced in 2021 with hours 17,522 by Solar (reports available)
    5. RGB (main gearbox) replaced with new exchange in 2023 by Solar (reports available)
    6. New wet coupling included
    7. Generator was cleaned and tested (megger and PI) in January 2017
    8. Previous owner indicated generator was refurbished in 2012 but no supporting documents
    9. The condition of the equipment supports the refurbishment
    10. UT testing records and other NDT performed on the steam plant pending
    11. All vessels have been drained and open to atmosphere
    12. All equipment in full operation up to September 2024 when the previous owner had to switch to fuel cells to meet current emission regulations
    13. All maintenance records (by Solar) up to date and available if needed
  4. Included
    1. Fully enclosed for outdoor use
    2. CEMS continuous emission monitoring system cabinet
    3. Co-gen / boiler for heat (CHP)

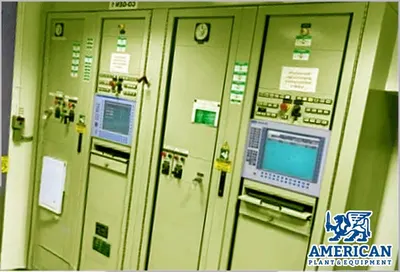

    4. Local and remote control panels
    5. Economizer
