Wartsila, W20V32, 2010, 100 MW, 50 Hz, 11,000 V, 12x Gensets

Wartsila, W20V32, 2010, 100 MW, 50 Hz, 11,000 V, 12x Gensets

Description

  1. Overview
    1. Used 100 mw heavy fuel oil (hfo) power plant consisting of 12 × wartsila 20v32 medium-speed generating sets, complete with alternators, transformers, cooling system, fuel treatment, and full balance of plant.
    2. The facility was manufactured in 2010 and operated under base-load conditions with proper maintenance.
  2. Generating Units (Prime Movers)
    1. Engine brand: Wartsila
    2. Engine model: W20V32
    3. Engine type: Medium-speed hfo diesel engines
    4. Number of units: 12 identical gensets
    5. Year of manufacture: 2010
    6. Rated speed: 750 rpm
    7. Rated mechanical output: 9,200 kw per engine
    8. Fuel type: Heavy fuel oil (hfo)
  3. Operating Hours (Per Unit)
    1. Minimum: ~44,600 hours
    2. Maximum: ~55,500 hours
    3. Average running hours: approx. 48,500–50,000 hours
  4. Alternators / Generators
    1. Alternator manufacturer: Avk
    2. Model: Dig 167 f/8
    3. Year of manufacture: 2010
    4. Quantity: 12 units
    5. Rated apparent power: 11,155 kva per genset
    6. Rated active power: approx. 8.9 mw per genset
    7. Voltage: 11,000 v
    8. Frequency: 50 hz
    9. Power factor: 0.80
    10. Phase: 3-phase
    11. Rated current: 585 a
  5. Plant Capacity
    1. Installed mechanical capacity: 110.4 mw (12 × 9.2 mw engine rating)
    2. Net electrical output: ~100 mw (generator-limited / contractual rating)
  6. Key Highlights
    1. Proven wartsila 32-series engine technology
    2. Suitable for base-load and continuous operation
    3. 50 hz / 11 kv / 3-phase electrical configuration

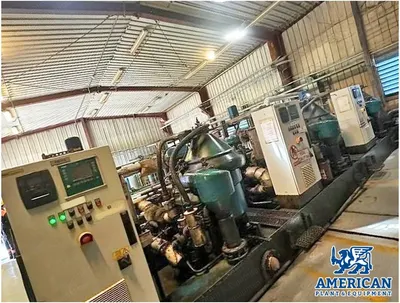

    4. Complete fuel treatment, cooling, electrical, and auxiliary systems
    5. Maintained under cold-stop procedures with turning gear and pre-lubrication
    6. Ideal for ipp projects, utility power, industrial captive power, and relocation projects
    7. Can be adapted for data center power supply with appropriate fuel and emissions upgrades
