Wartsila, W20V32, 2010, HFO Power Plant, 100 MW

Name: Wartsila, W20V32, 2010, HFO Power Plant, 100 MW
Brand: Wartsila
SKU: TT-9813

‹ Go Back Next Product ›

Description

Overview

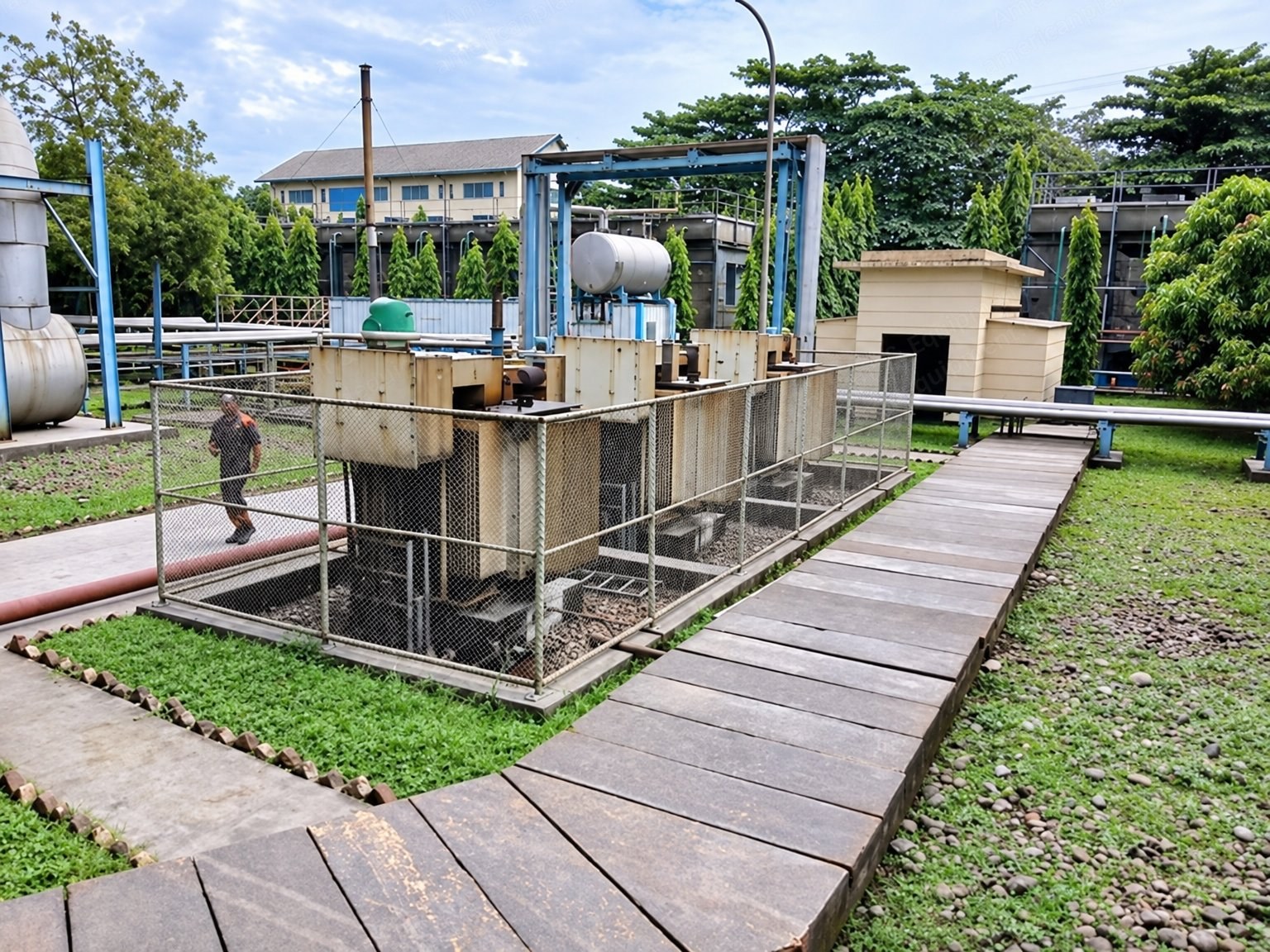

1. Used 100 MW heavy fuel oil (HFO) power plant consisting of 12 x Wartsila W20V32 medium-speed generating sets, complete with alternators, transformers, cooling system, fuel treatment, and full balance of plant.
2. The facility was manufactured in 2010 and operated under base-load conditions with proper maintenance.

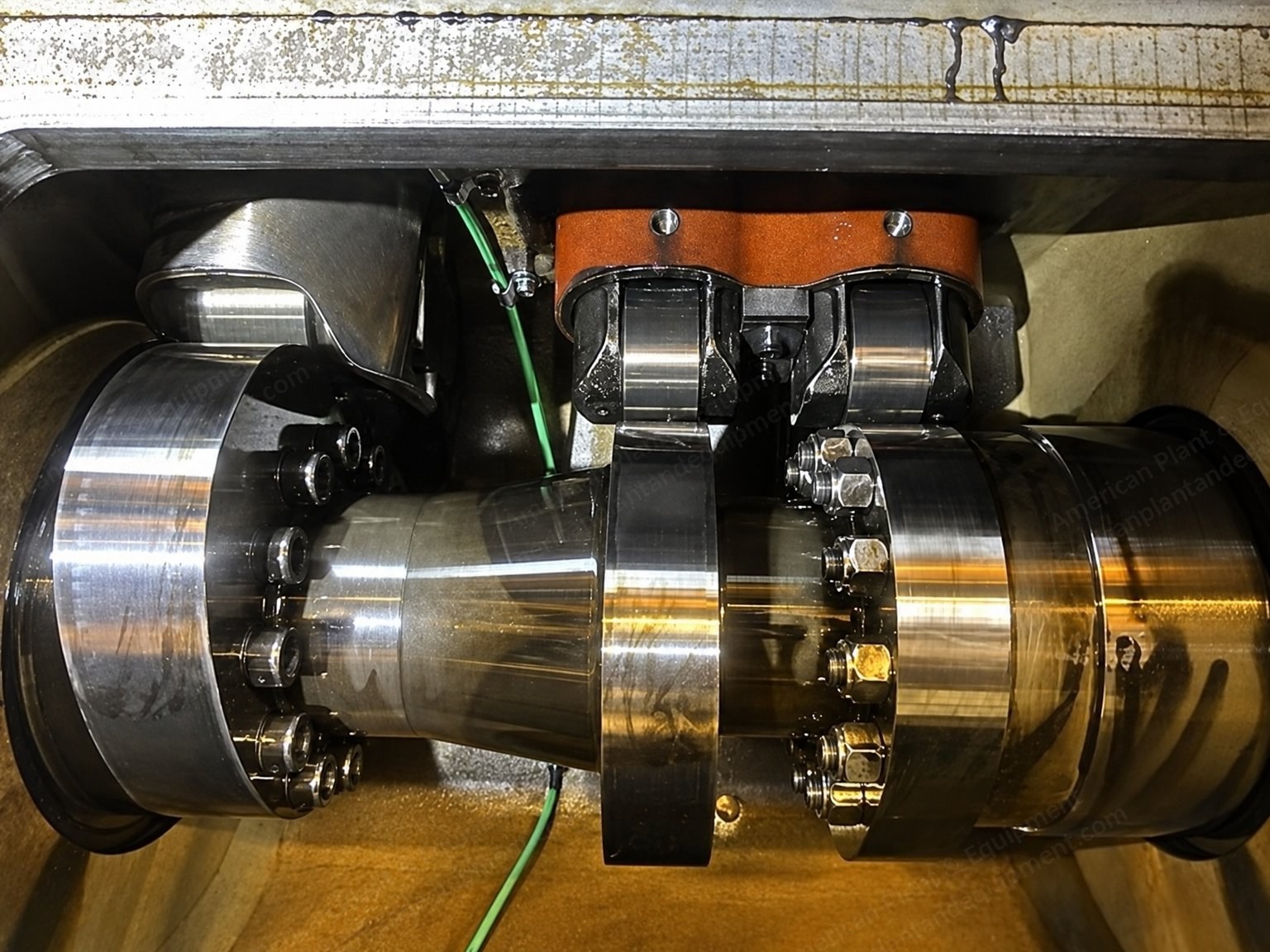

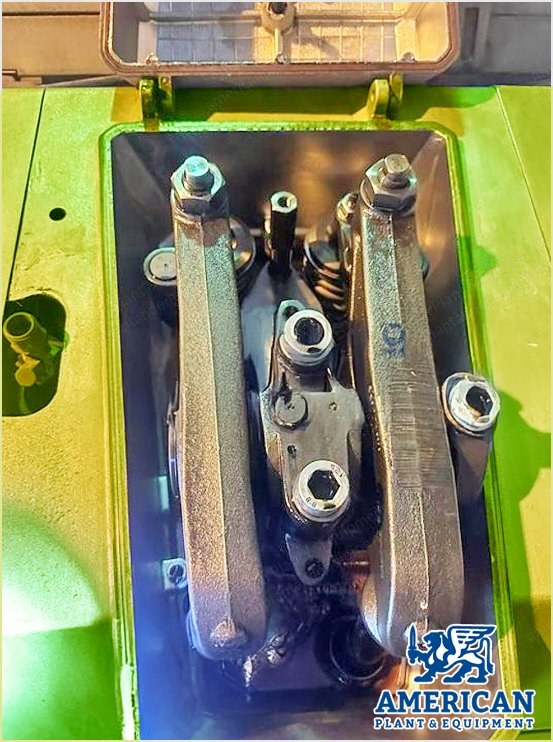

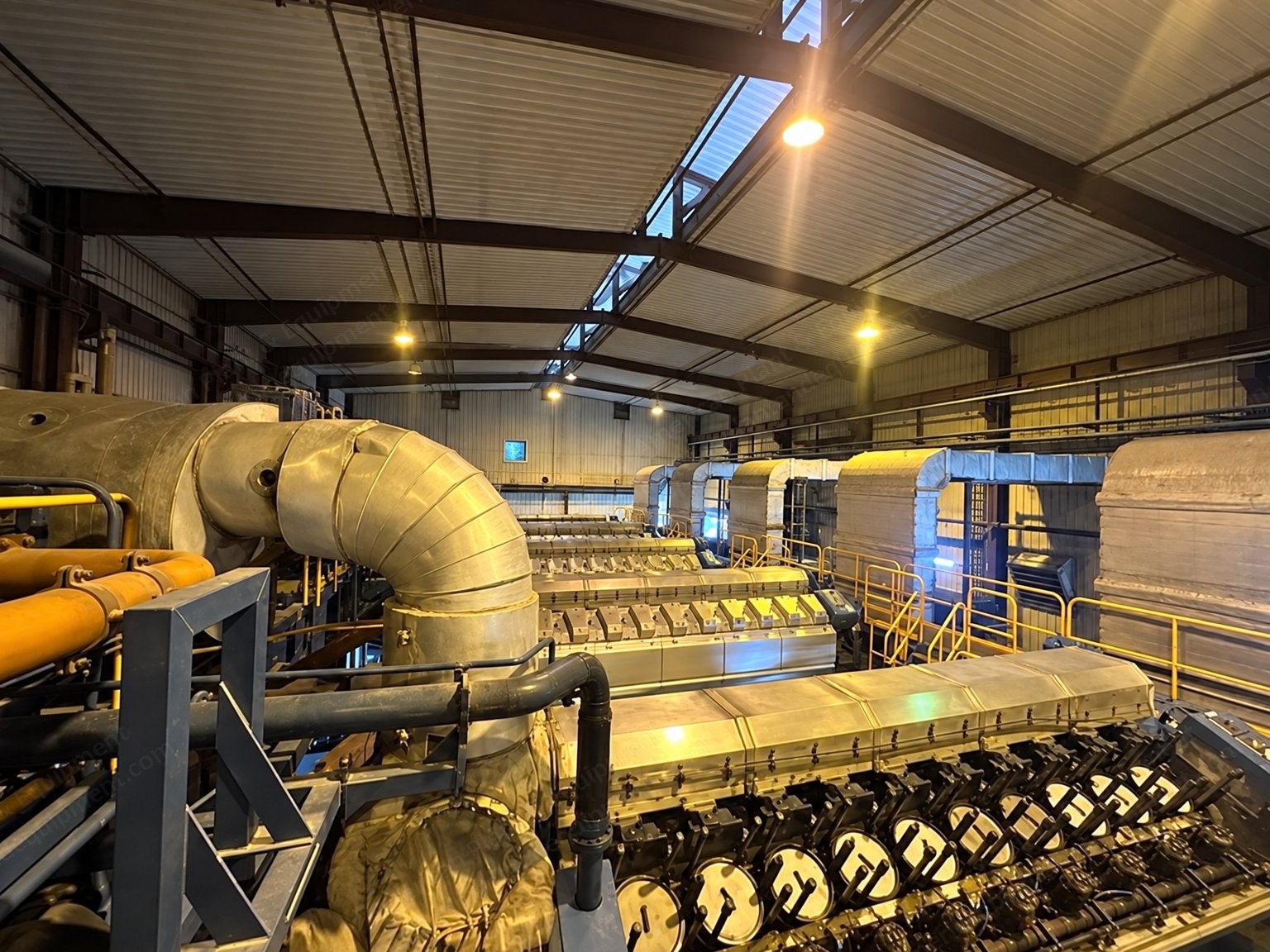

Generating Units (Prime Movers)
1. Engine brand: Wartsila
2. Engine model: W20V32
3. Engine type: Medium-speed HFO diesel engines
4. Number of units: 12 identical gensets
5. Year of manufacture: 2010
6. Rated speed: 750 rpm
7. Rated mechanical output: 9,200 kW per engine
8. Fuel type: Heavy fuel oil (HFO)
Operating Hours (Per Unit)
1. Minimum: ~44,600 hours
2. Maximum: ~55,500 hours
3. Average running hours: approx. 48,500-50,000 hours

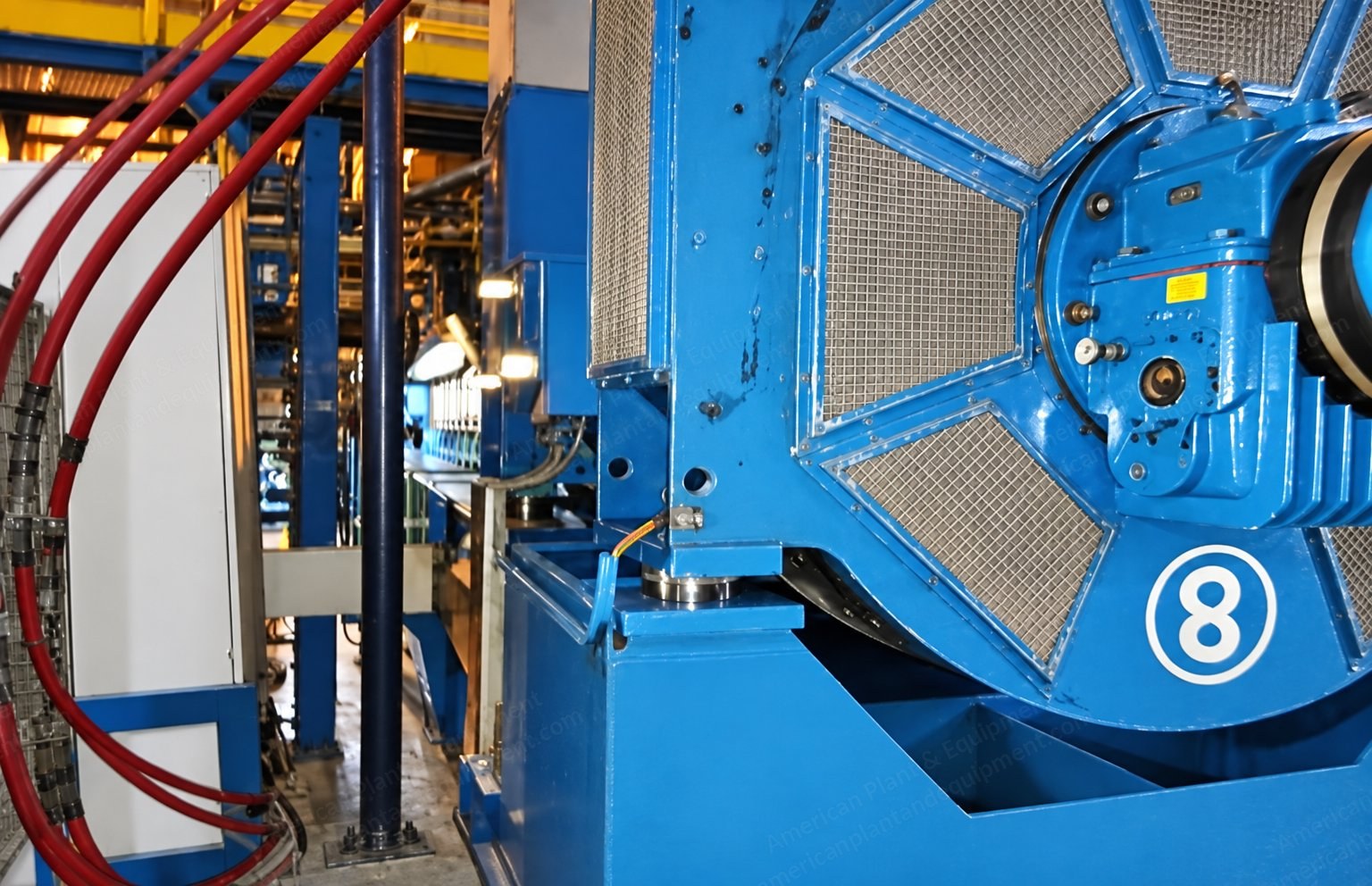

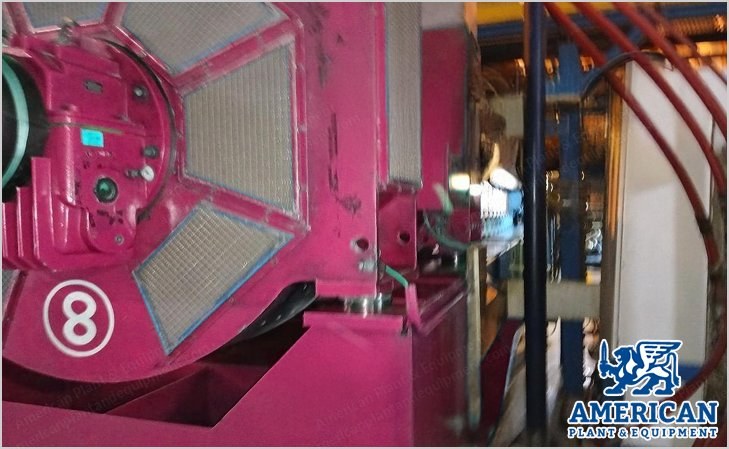

Alternators / Generators
1. Alternator manufacturer: AVK
2. Model: DIG 167 F/8
3. Year of manufacture: 2010
4. Quantity: 12 units
5. Rated apparent power: 11,155 kVA per genset
6. Rated active power: approx. 8.9 MW per genset
7. Voltage: 11,000 V
8. Frequency: 50 Hz
9. Power factor: 0.80
10. Phase: 3-phase
11. Rated current: 585 A
Plant Capacity
1. Installed mechanical capacity: 110.4 MW (12 x 9.2 MW engine rating)
2. Net electrical output: ~100 MW (generator-limited / contractual rating)
Key Highlights
1. Proven Wartsila 32-series engine technology
2. Suitable for base-load and continuous operation
3. 50 Hz / 11 kV / 3-phase electrical configuration

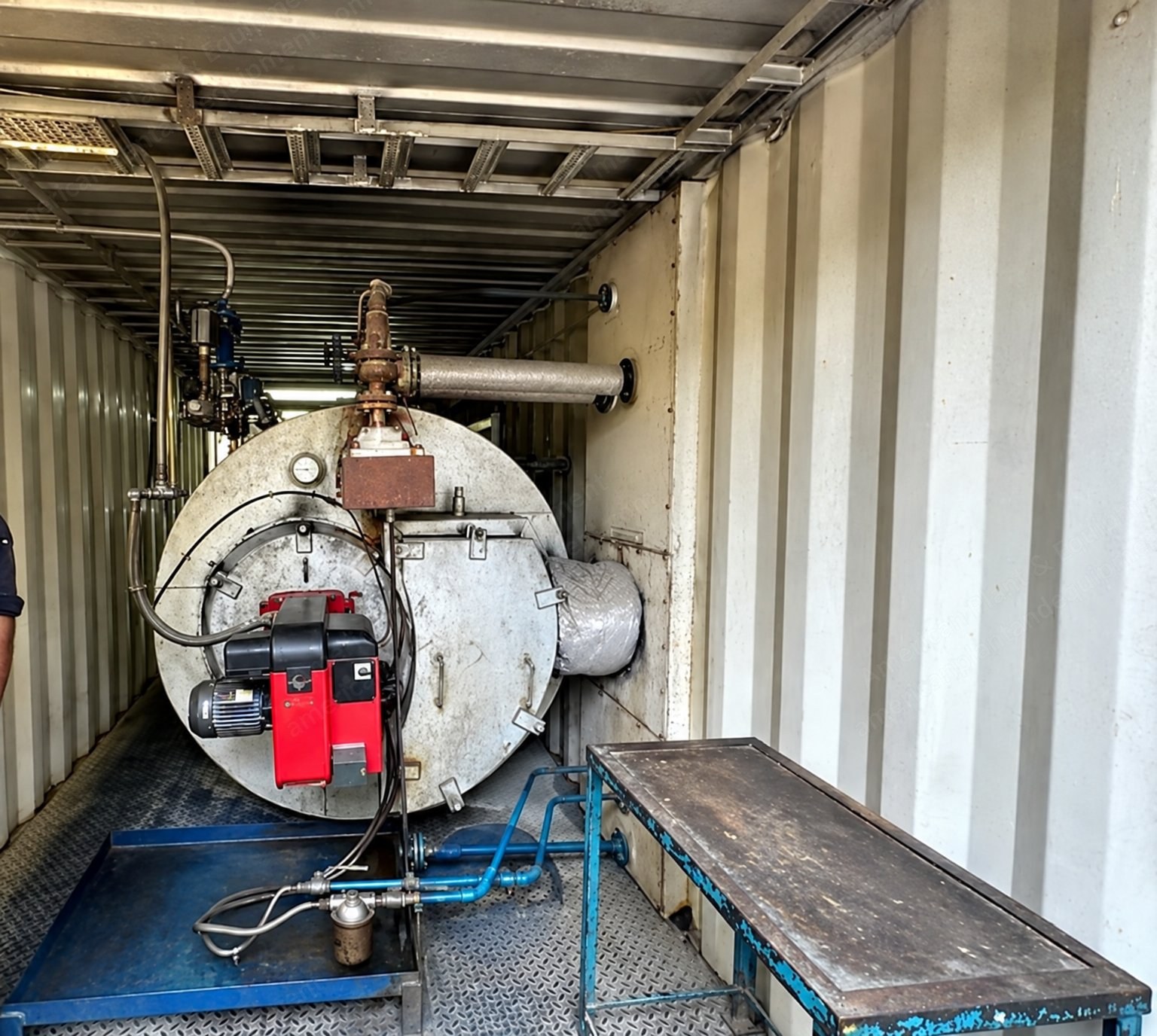

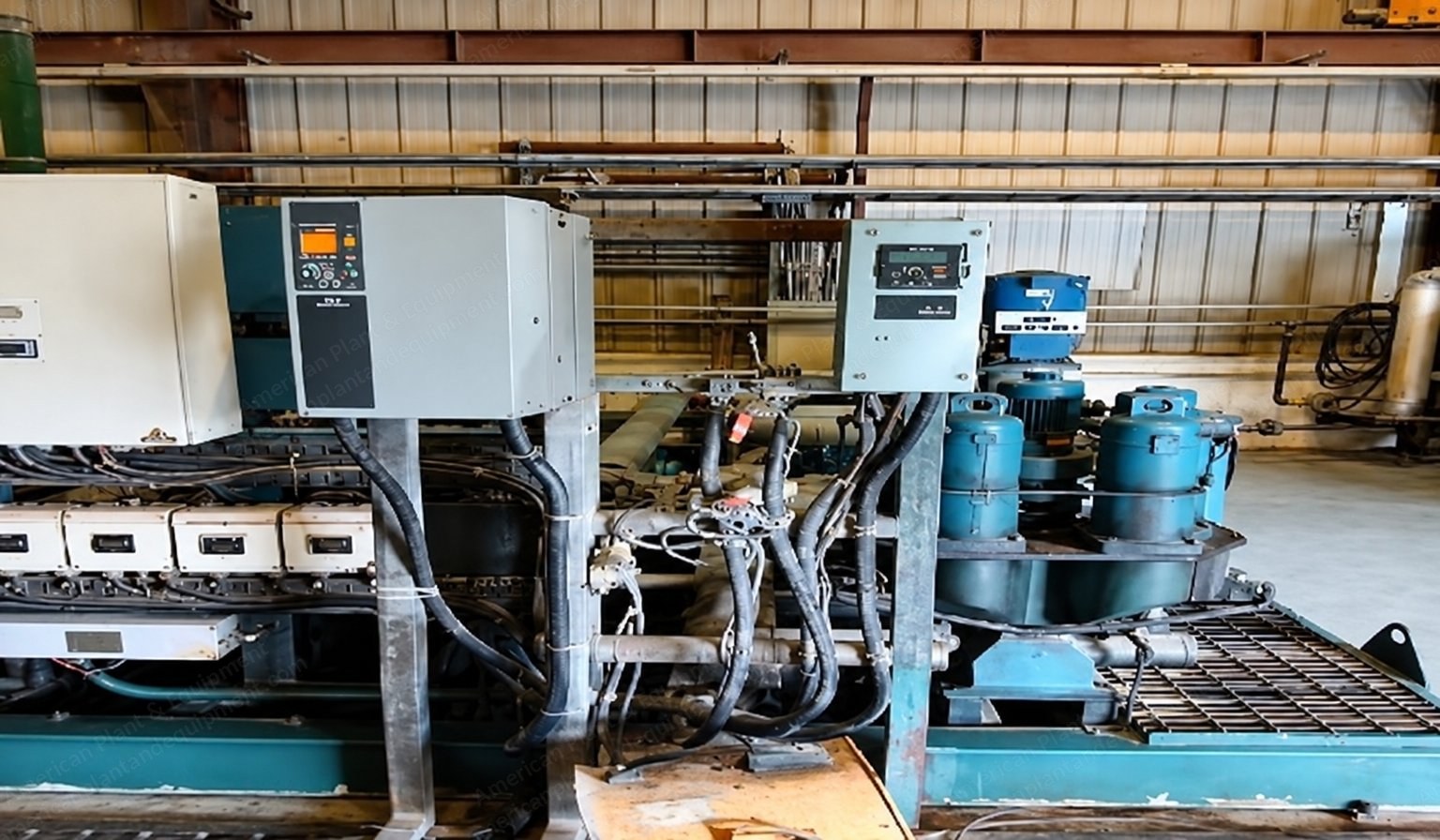

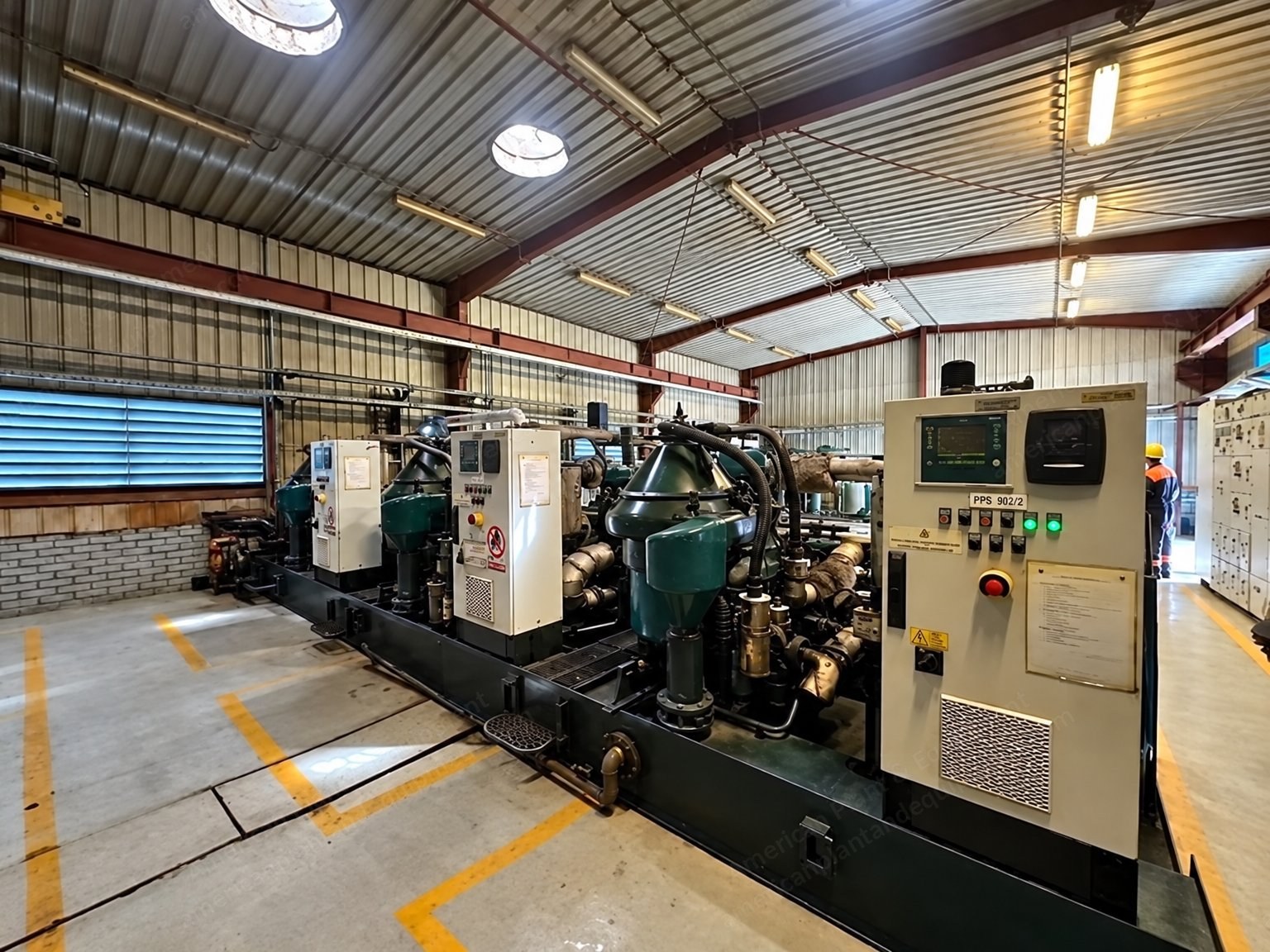

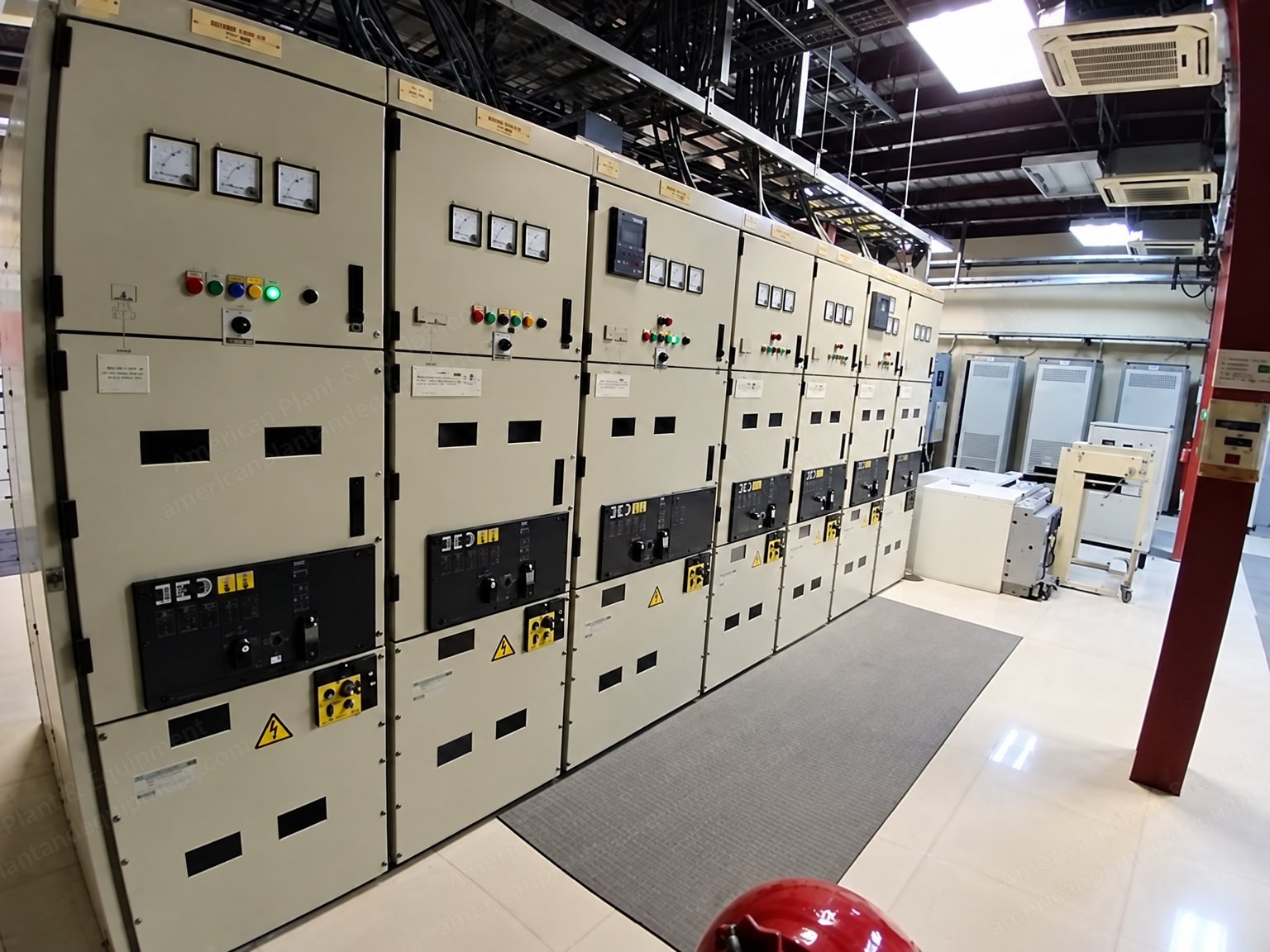

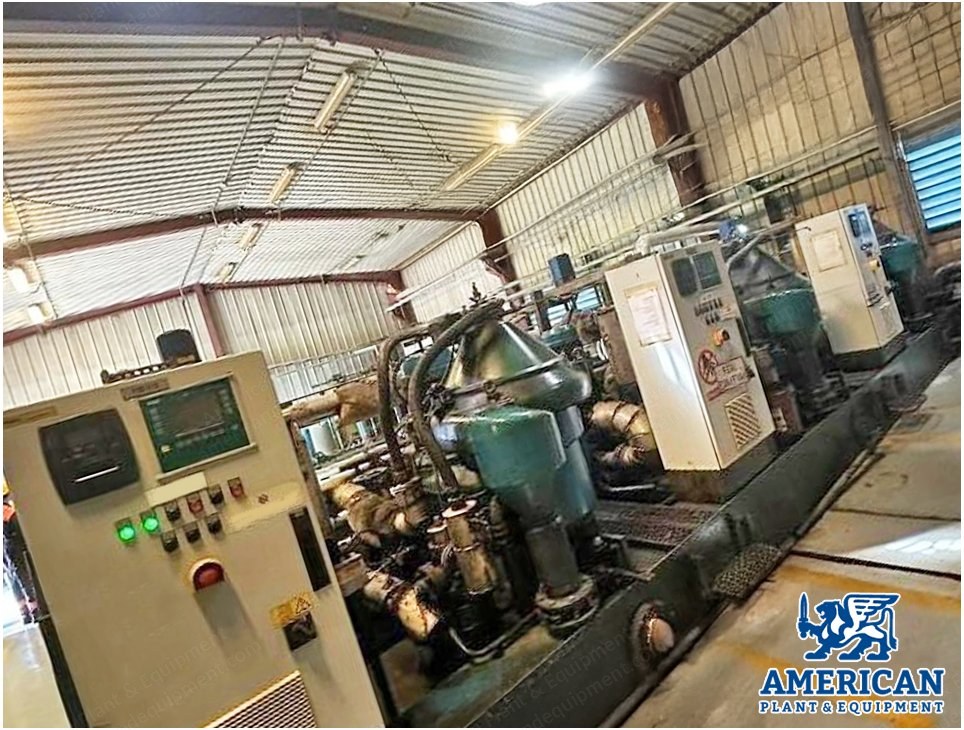

4. Complete fuel treatment, cooling, electrical, and auxiliary systems
5. Maintained under cold-stop procedures with turning gear and pre-lubrication
6. Ideal for IPP projects, utility power, industrial captive power, and relocation projects
7. Can be adapted for data center power supply with appropriate fuel and emissions upgrades
