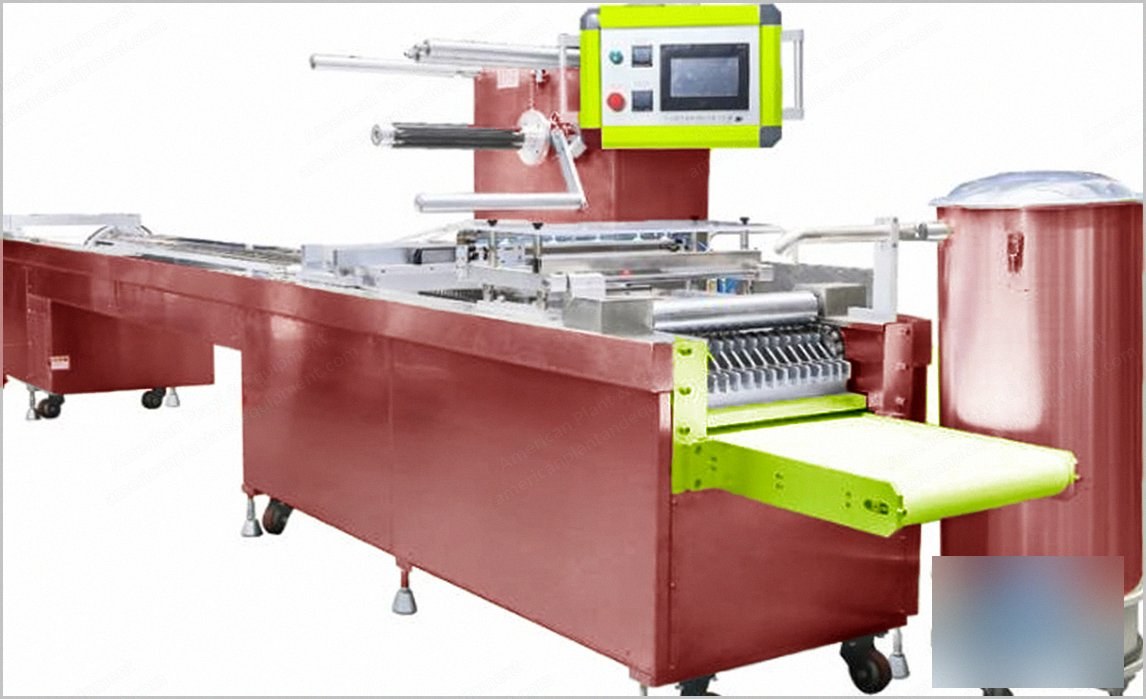

NovaStar, GK169, Thermoformer Blister Packaging Machine, Working Width 400mm to 520mm, 10kW
Scroll to zoom
100%
Description
Composition
The equipment is composed of machine frame, drive system, paper unrolling system, film unrolling system, plastic-forming assembly, heat-sealing assembly, color code testing system, transverse-cutting system, lengthway-cutting and control system, etc.
This equipment can be supported with below optional devices: online printer, air jet code printer, auto syringe loader, auto needle loader and other supportable devices.
Mould for option: fixed depth / adjustable depth.
Main Technical Parameters
Working widths available: 400 mm, 420 mm, 460 mm, 480 mm, 500 mm, 520 mm, etc.
Min. package width: 19 mm
Max. package depth: 60 mm
Film material: PP/PE, PA/PE
Working cycle: 4 to 6 s, with vacuum: 6 to 8 s
Power: 10 kW
Cooling water: approx. 80 L/h (<25 °C)
Air pressure: 0.6-0.8 MPa
Weight: approx. 1500 kg
Machine size: approx. 7300 x 1100 x 1700 mm (L x W x H)
Vacuum: optional
Optional Equipment
Automatic labeling machine
Online flexible printing machine
Ink jet printer
Cooling machine
Automatic syringe loading machine
