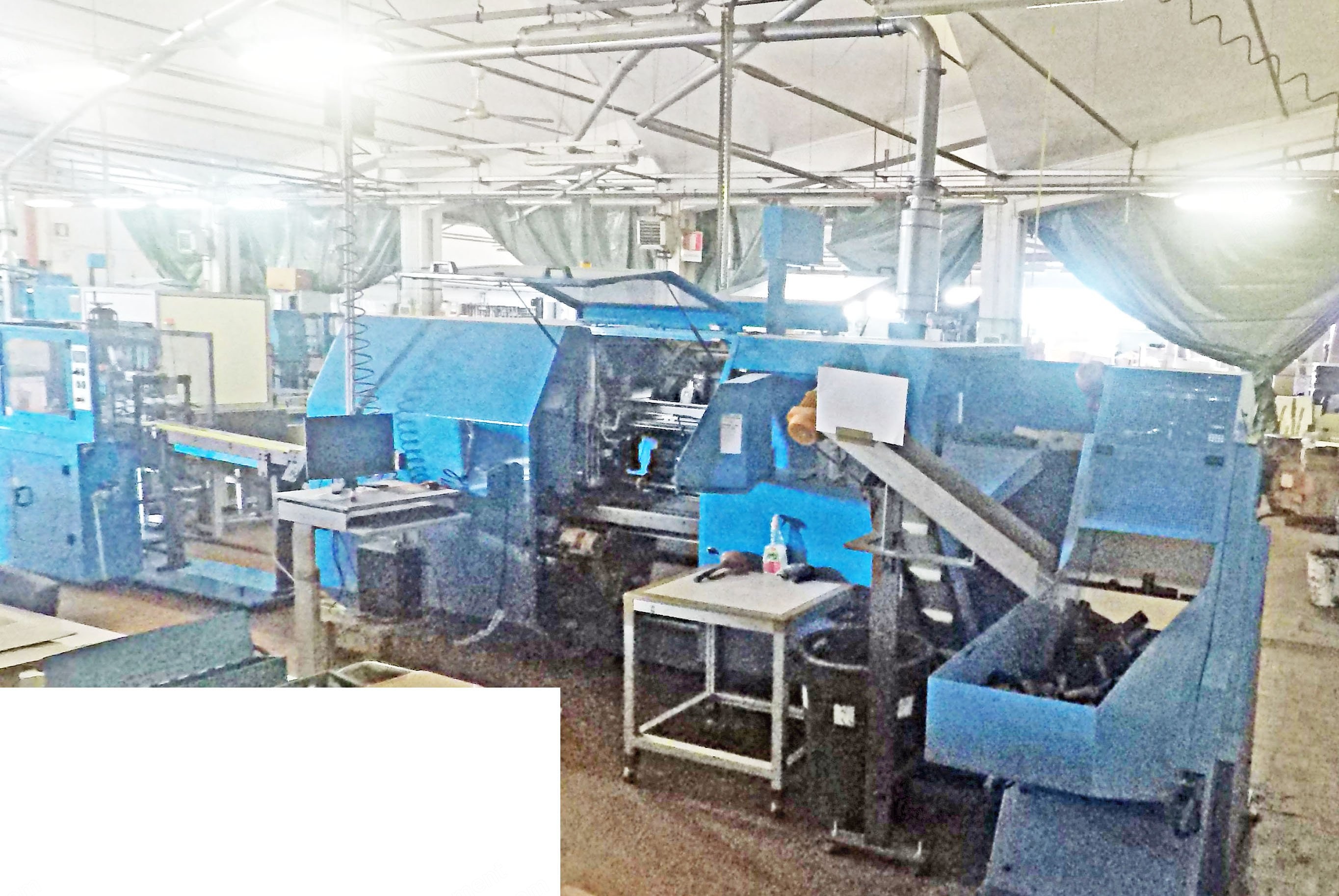

Lemu, Roboplus 800, 2010, 1380mm Working Width, 700 m/min Max Speed

Lemu, Roboplus 800, 2010, 1380mm Working Width, 700 m/min Max Speed

Description

  1. Overview
    1. Lemu slitter-rewinders
    2. Model: Roboplus 800
    3. Year of manufacture: 2010
    4. Plus converting line components: 1996 to 2008
    5. Quantity: 2 units
  2. Roll Winding Machine With Punching Unit
    1. Unwinder with integrated disc brake and grippers.
    2. Electronic web guiding system for paper alignment.
    3. Hydraulic punching unit for marking the start of the winding process.
    4. Hydraulic shaft featuring marking holders and optional signature management via the machine software.
    5. Integrated barcode scanner for reading printed codes (if present), operating in conjunction with a Windows PC and the associated software.
    6. The machine is equipped with an automatic core loader that accommodates various formats through the adjustment of blade position, contact pressure, roll length (in meters), and roll length measurement (determined either by counting size markers or measuring the roll diameter).
    7. Upon completion of the winding process, a cross-cut is performed, the roll end is automatically glued, and the finished roll is ejected.
    8. Maximum paper roll size: diameter 1200/1300 mm.
    9. Maximum packaging speed: 700 m/min with optional automatic cycles: continuous loading, winding, cutting, and ejection.
    10. Once the rolls have been ejected, they are transported via conveyor belts—first to a vibrating unit that smooths out any irregularities—and subsequently to the outfeed table for packaging and, if applicable, palletizing.
    11. The machine is equipped with all safety devices and sensors, all of which are fully functional.
    12. It also features a waste disposal system.
  3. Roll Winding Machine With Flexographic Printing Unit
    1. Unwinder with integrated disc brake and grippers.
    2. Electronic web guide for paper alignment.
    3. Integrated flexographic printing unit utilizing water-based ink and air drying for controlling strip length, position, and placement within the printed image.
    4. Integrated barcode scanner for reading printed codes (if present), interfaced with a Windows-based computer and accompanying software.
    5. The machine is equipped with an automatic core loader that accommodates various formats through the adjustment of blade position, contact pressure, roll length (in meters), and roll length (determined either by counting size markers or measuring the roll diameter).
    6. Upon completion of the winding process, a cross-cut is performed, followed by the sealing of the roll tail and automatic ejection.
    7. Maximum paper roll size: diameter 1200/1300 mm.
    8. Maximum winding speed: 700 m/min with optional automatic cycles: continuous loading, winding, cutting, and ejection.
    9. After ejection, the rolls are transported via conveyor belts—first to a vibrating machine that eliminates any irregularities—and subsequently to the outfeed table for packaging and, if applicable, palletizing. The machine is equipped with all safety devices and sensors, which are fully functional.
  4. Specifications
    1. Working width: 1380mm
