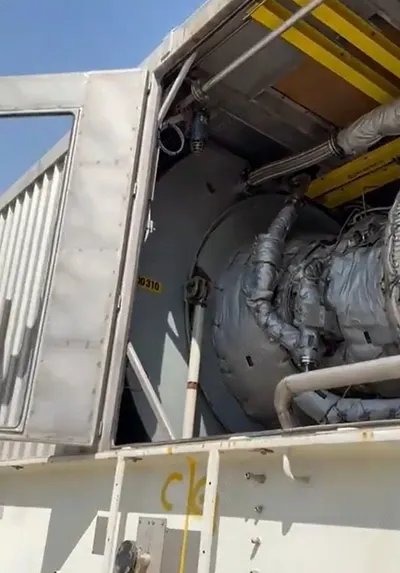

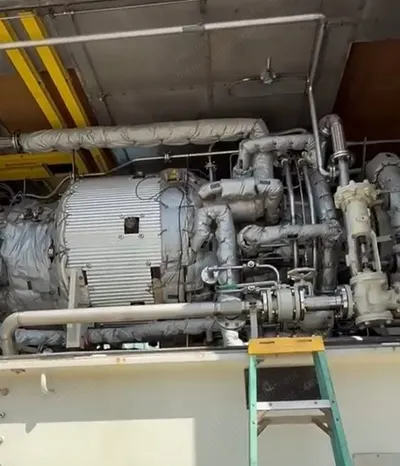

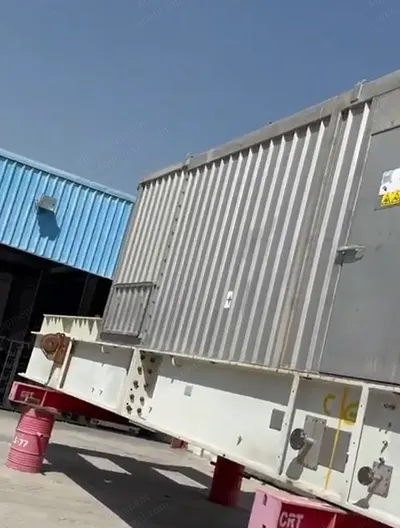

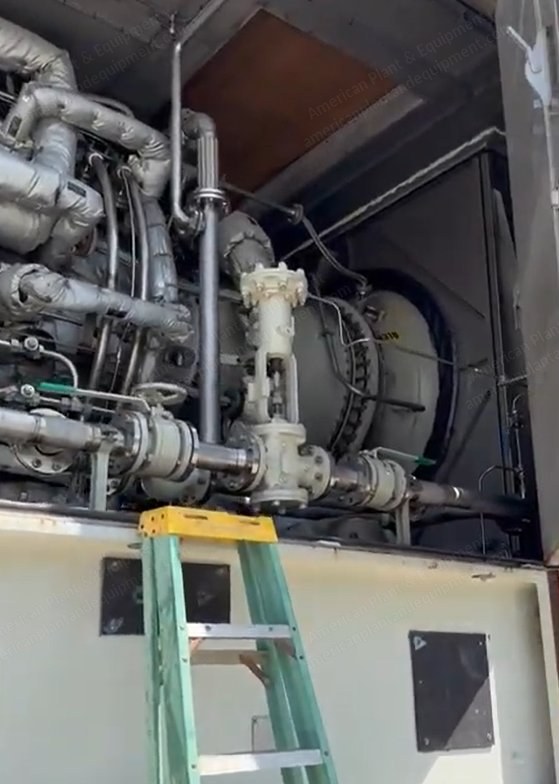

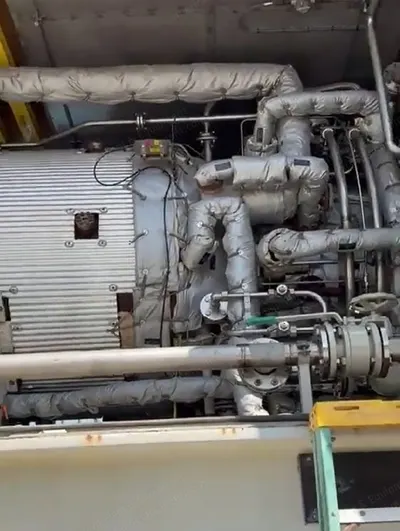

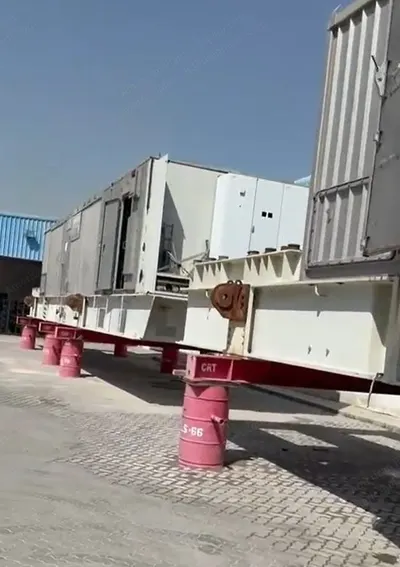

Siemens, SGT-500, 2007, 35 MW, 50-60 Hz, Dual Fuel Gas Turbine Package

Siemens, SGT-500, 2007, 35 MW, 50-60 Hz, Dual Fuel Gas Turbine Package

Description

  1. Equipment Overview
    1. Siemens SGT-500 gas turbine package
    2. Siemens SGT-500 gas turbines
    3. Quantity: two (2) units available
    4. Condition: new surplus / zero hours
    5. Originally supplied for an FPSO project that was cancelled
  2. Manufacturing & Storage
    1. Year manufactured in 2007
    2. New surplus, never used
    3. Zero operating hours
    4. Stored strictly in accordance with OEM preservation procedures
  3. Certification
    1. Marine rated
    2. DNV (Det Norske Veritas) certified
  4. Gas Turbine – Technical Data
    1. Model: Siemens SGT-500
    2. Configuration: single-shaft industrial gas turbine
    3. Fuel: dual fuel – natural gas / diesel
    4. Frequency capability: 50 / 60 Hz
    5. Power output (ISO conditions – indicative)
    6. Natural gas: approx. 17.4 MW
    7. Diesel: approx. 17.0 MW
    8. (Output may be slightly higher depending on site conditions)
  5. Performance
    1. Specific fuel consumption
    2. 221 g/kWh (natural gas)
    3. 262 g/kWh (diesel)
    4. Heat rate: 11,066 kJ/kWh (natural gas), 11,200 kJ/kWh (diesel)
  6. Generator Package
    1. Brand: ABB
    2. Year: 2007
    3. Type: AMS 900 LH
    4. Rated output: 20,400 kVA @ 35°C
    5. Voltage: 13.8 kV
    6. Frequency: 60 Hz (or 50 Hz upon request)
    7. Speed: 1,800 rpm
    8. Power factor: 0.8
    9. Type: synchronous generator
  7. Gearbox
    1. Manufacturer: Flender Graffenstaden (France)
    2. Rated power: 22,500 kW
    3. Gearbox supplied complete with couplings and coupling guards
  8. Lube Oil System
    1. Marine rated
    2. Complete lube oil system included
    3. Fin-fan type lube oil cooler included
  9. Scope of Supply – Skid-Only Package (Included)
    1. Gas turbine package B003711 and gas turbine package B003712
    2. SGT 500 power turbine and gas generator
    3. ABB AMS 900 LH electrical generator (to be shipped separately, brand new)
    4. Intake and exhaust system
    5. Lubricant oil system
    6. Liquid fuel system
    7. Fuel forwarding pump skid
    8. Gas fuel system
    9. Gear system: gearbox with coupling and coupling guards
    10. Compressor wash system
    11. Air intake system: turbine combustion air inlet casing
    12. Exhaust system: exhaust plenum
    13. Cooling system: fin type lube oil cooler
    14. Complete lube oil system
    15. Base frame, enclosure and platform
