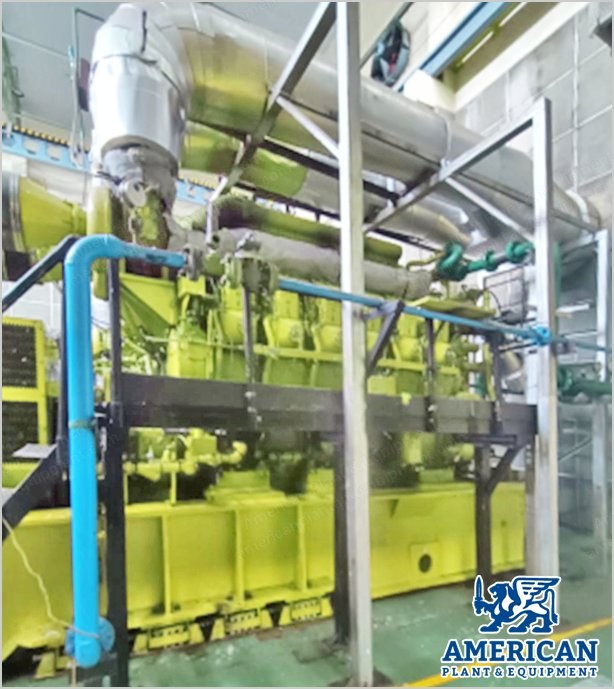

Caterpillar, G3612, 2009, 2.75 MW and 2.5 MW, Gas Engine Generator Sets

Caterpillar, G3612, 2009, 2.75 MW and 2.5 MW, Gas Engine Generator Sets

Description

  1. Overview
    1. Caterpillar make gas engine generator sets
    2. Two units of 2.75 MW and one unit of 2.5 MW
    3. Available with immediate delivery
    4. Generators are in excellent condition, complete with their accessories and can be inspected
  2. Generator Set 1 (2.5 MW)
    1. Natural gas engine: 12 cylinder, V type, 1000 rpm, model G3612, Caterpillar, 3481 hp, indoor
    2. Alternator: 11 kV, 164 A, Kato, 2500 kW / 3125 kVA, indoor
    3. AC/OC motor: 3 phase induction motor, model 3 MOTMG 16, Grundfos, 15 kW / 20 hp, outdoor
    4. AC/OC pump: Centrifugal pump, model B99659951P1, Grundfos, 115 m³/hr, outdoor
    5. Radiator cooling system: Shell and tube type forced draft cooling system, GEA Energy, LT fluid flow 123,000 kg/hr, HT fluid flow 144,000 kg/hr, outdoor
    6. Radiator fan motor 1: 415 V, 51 A, 1475 rpm, S1, IP55, model YGAM0879, Crompton Greaves, 40 hp, outdoor
    7. Radiator fan motor 2: 415 V, 51 A, 1475 rpm, S1, IP55, model YGAM0880, Crompton Greaves, 40 hp, outdoor
  3. Generator Set 2 (2.75 MW)
    1. Natural gas engine: 12 cylinder, V type, 1000 rpm, model G3612, Caterpillar, 3787 hp, indoor
    2. Alternator: 11 kV, 180 A, Kato, 2740 kW / 3425 kVA, indoor
    3. AC/OC pump: Centrifugal pump, Q = 115 m³/hr, model B99659951P1, Grundfos, 80 m³/hr, outdoor
    4. AC/OC motor: 3 phase squirrel cage induction motor, model B 97904512P1, Grundfos, 15 hp, outdoor
    5. Radiator cooling system: Shell and tube type forced draft cooling system, GEA Energy, LT fluid flow 123,000 kg/hr, HT fluid flow 144,000 kg/hr, outdoor
    6. Radiator fan motor 1: 3 phase squirrel cage induction motor, Crompton Gre, 40 hp, outdoor
    7. Radiator fan motor 2: 3 phase squirrel cage induction motor, Crompton Gre, 40 hp, outdoor
  4. Generator Set 3 (2.75 MW)
    1. Natural gas engine: 12 cylinder, V type, 1000 rpm, model G3612, Caterpillar, 3787 hp, indoor
    2. Alternator: 11 kV, 180 A, Kato, 2740 kW / 3425 kVA, indoor
    3. AC/OC pump: Centrifugal pump, model B 97904512P1, Grundfos, 80 m³/hr, outdoor
    4. AC/OC motor: 3 phase squirrel cage induction motor, ABB, 15 hp, outdoor
    5. Radiator cooling system: Shell and tube type induced draft cooling system, model FCW-360, International Co IL Ltd, outdoor
    6. Radiator fan motor 1: 3 phase squirrel cage induction motor, Crompton Gre, 15 hp, outdoor
    7. Radiator fan motor 2: 3 phase squirrel cage induction motor, Crompton Gre, 15 hp, outdoor
    8. Radiator fan motor 3: 3 phase squirrel cage induction motor, Crompton Gre, 15 hp, outdoor
    9. Black start DG: 4 cylinder inline diesel engine, model NTC495G, Cummins, 125 kVA, indoor
  5. Vapor Absorption Machine 3 (VAM 3)
    1. Double effect vapor absorption machine, model ED2ODTHU, Thermax, 178 TR, indoor
    2. Vacuum pump: model IVP/T 108(M), Indo Woosung, 180 L/min, indoor
    3. Vacuum pump motor: 3 phase squirrel cage induction motor, model EB080054-03, Mehala Machines Pvt Ltd, 1 hp, indoor
    4. Cooling water pump: Centrifugal pump
    5. Cooling water pump motor: model HX+160MLD2, ABB, 20 hp, outdoor
    6. Radiator cooling system: Shell and tube type induced draft cooling system, model FC 400/01, Thermax, outdoor
    7. Radiator fan motor 1: 3 phase squirrel cage induction motor, Champion series, Siemens, 15 kW, outdoor
    8. Radiator fan motor 2: 3 phase squirrel cage induction motor, Champion series, Siemens, 15 kW, outdoor
  6. Vapor Absorption Machine 4 (VAM 4)
    1. Double effect vapor absorption machine, model ED2ODTHU, Thermax, 178 TR, indoor
    2. Vacuum pump: model IVP/T 108(M), Indo Woosung, 180 L/min, indoor
    3. Vacuum pump motor: 3 phase squirrel cage induction motor, model EB080054-03, Mehala Machines Pvt Ltd, 1 hp, indoor
    4. Cooling water pump: Centrifugal type
    5. Cooling water pump motor: 3 phase squirrel cage induction motor, model HX+160MLD2, ABB, 20 hp, outdoor
    6. Radiator cooling system: Shell and tube type induced draft cooling system, model FC 400/01, Thermax, outdoor
    7. Radiator fan motor 1: 3 phase squirrel cage induction motor, Champion series, Siemens, 15 kW, outdoor
    8. Radiator fan motor 2: 3 phase squirrel cage induction motor, Champion series, Siemens, 15 kW, outdoor
