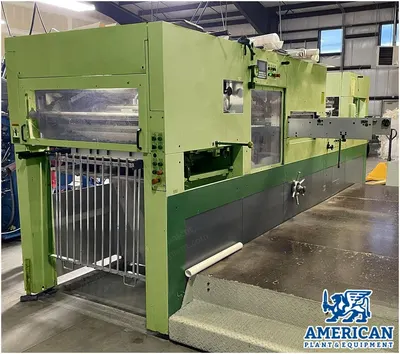

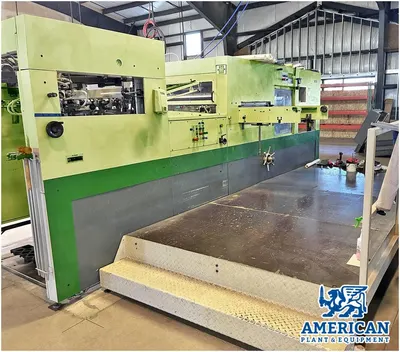

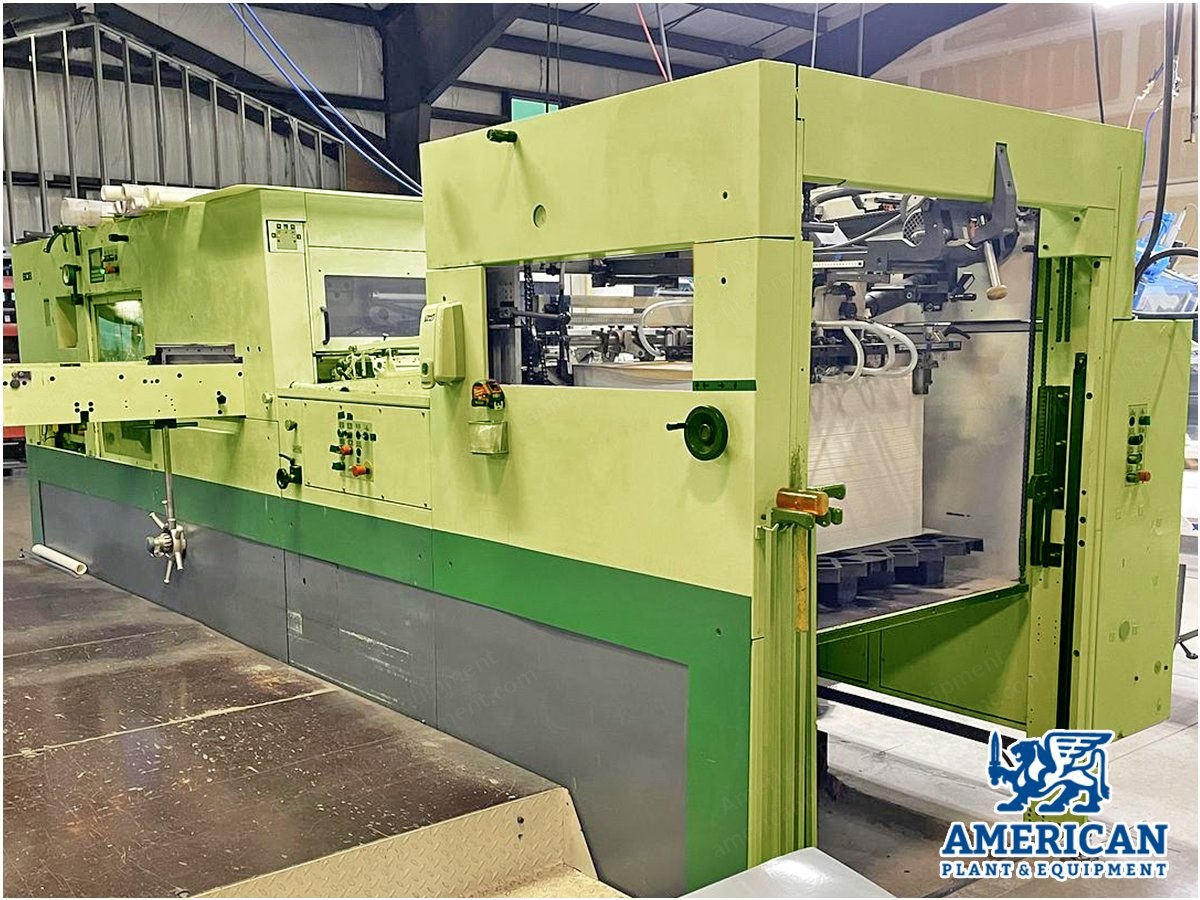

Description Overview Bobst Sp-102e-Ii autoplaten die cutter Year 2002 Specifications Max sheet size: 40 1/8” x 28 3/8” (1020mm x 720mm) Min sheet size: 15 ¾” x 13 ¾” (400mm x 350mm) Max cutting force: 250 ton Production speed: up to 7,500 sheets per hour (varies based on material and job type) Processing Capabilities Paper: min. 80g/m² Cardboard: 250 to 2000 g/m² Corrugated board: e & b flute, max. 4mm thickness Cutting Area With front trim: max. 705 x 1020mm Without front trim: max. 720 x 1020mm Key Features Feeder: standard feeder with all necessary equipment Non-stop feeder system for uninterrupted production Pile height at feeder with non-stop system: max. 1100mm Pile height at feeder without non-stop system: max. 1400mm Continuous feed Os and oop pull guides 1 chase, 1 plate, 1 resocel w/micro adjust 1 set of stripping frames - bars and pins Sheet blow down for thin paper Continuous delivery New chains and gripper bar end fittings 2022 Condition Used
