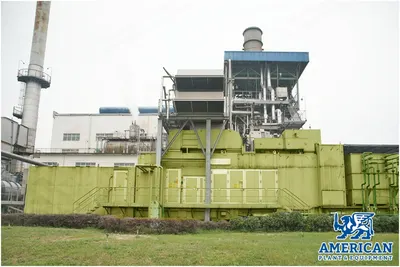

Siemens, SGT600DLE, 2011, 25MW, 50Hz, 10.5kV, Dual Fuel

Siemens, SGT600DLE, 2011, 25MW, 50Hz, 10.5kV, Dual Fuel

Description

  1. Specifications
    1. Power turbine speed: 7759 rpm

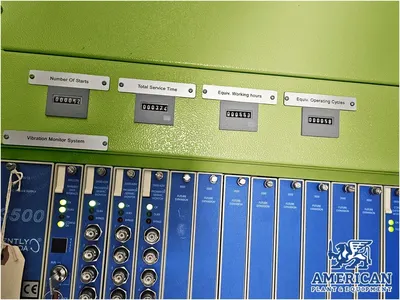

    2. Equivalent working hours: 553
    3. Number of starts: 52 times
    4. Total service time: 374
    5. Equivalent operating cycles: 58
    6. Generator: Abb, speed 1500 rpm to 1800 rpm (50 hz and 60 hz)
    7. Fuel: Dual (Natural Gas)
    8. Origin: Sweden
    9. Emission type: DLE (Dry Low Emission)
    10. Gearbox ratio: 5.172 (50Hz) or 4.311 (60Hz)
    11. Quantity of shafts: Dual Shafts
  2. Scope Of Supply
    1. High pressure compressor

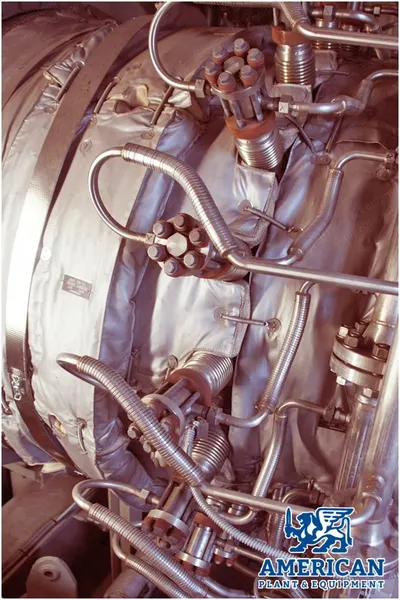

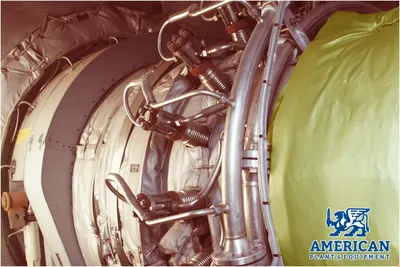

    2. Combustor
    3. High pressure pt
    4. Pt

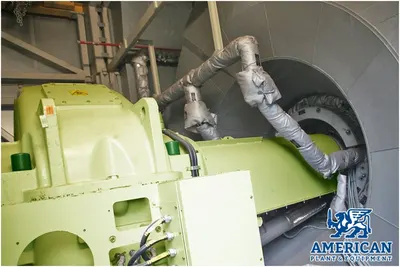

    5. Gearbox (voith)
    6. Alternator (abb)

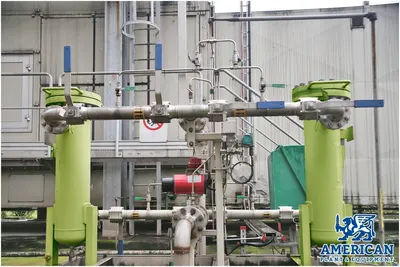

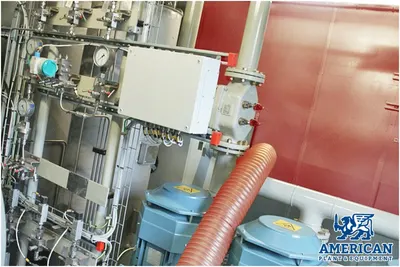

    7. Gas control part

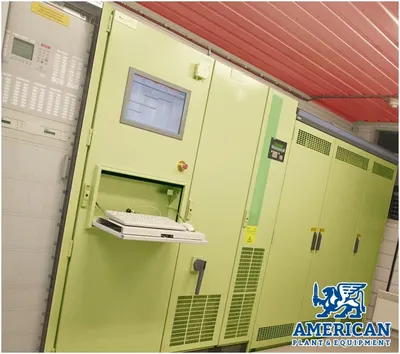

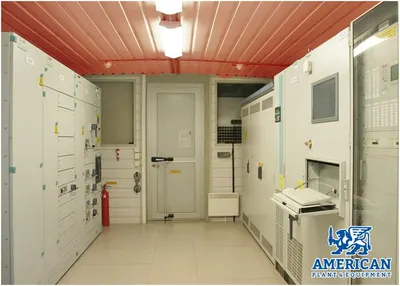

    8. Control room

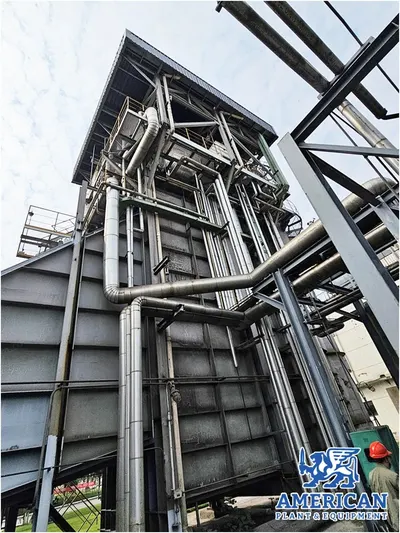

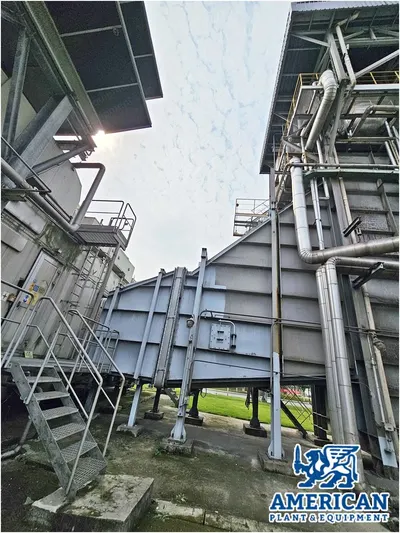

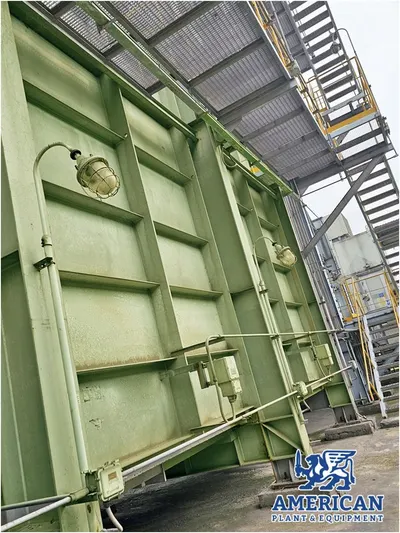

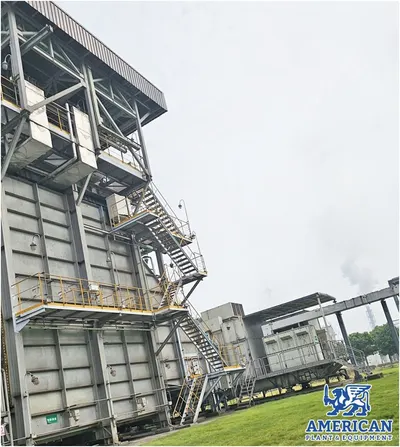

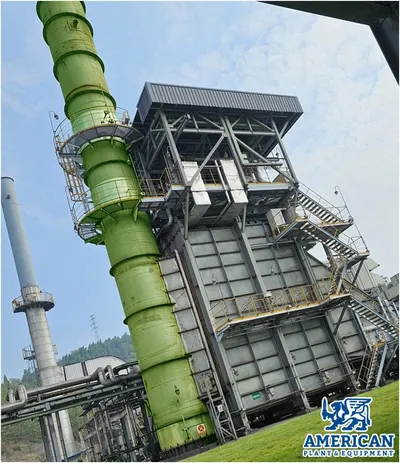

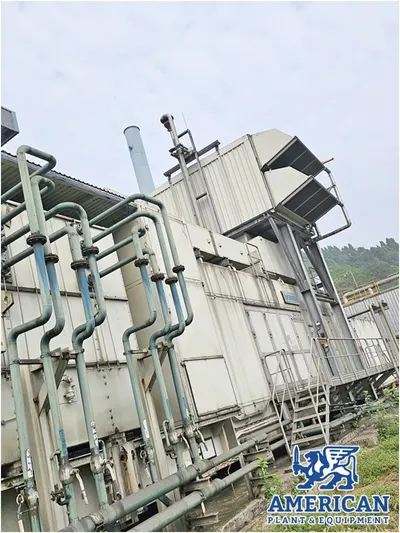

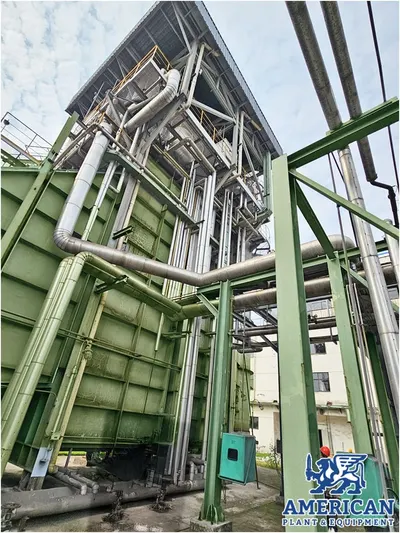

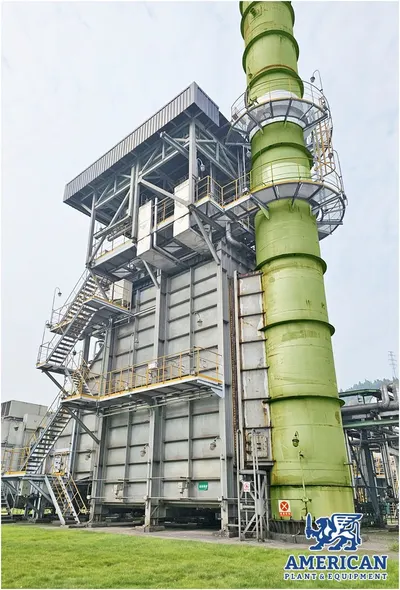

    9. Recovery heat boiler

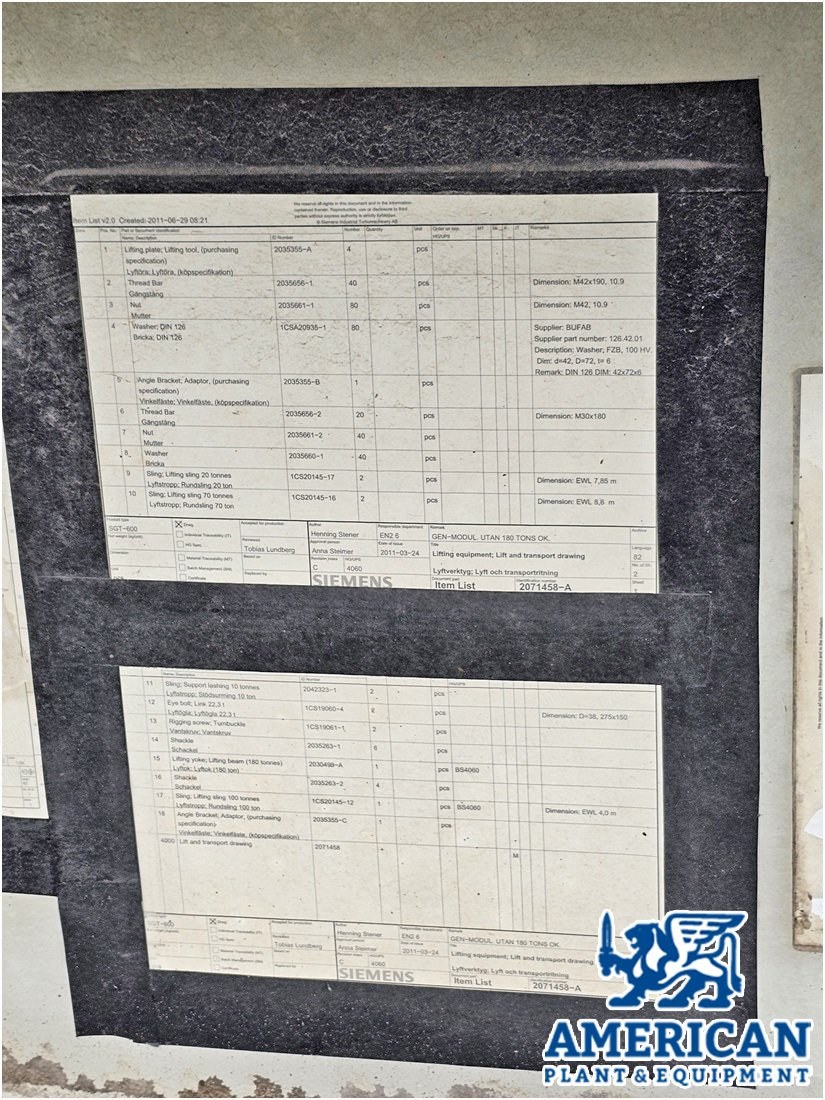

    10. Original manual book
    11. Chimney
    12. Transformer
    13. Dryer
    14. Fans
    15. Air conditioner

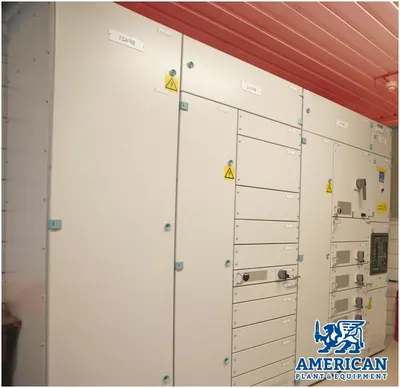

    16. Control boxes
    17. Control computer
    18. Cable

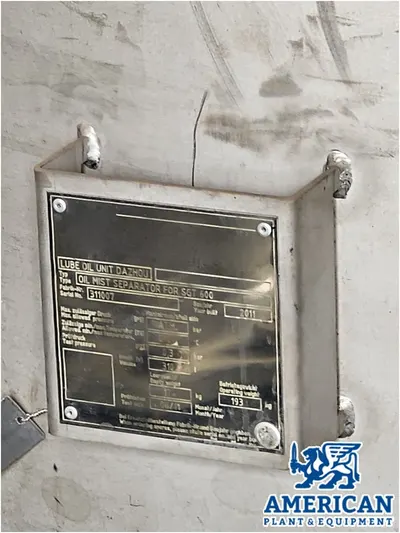

    19. Lube system
    20. Some new spare parts
  3. Maintenance Record
    1. The maintenance mainly involves passing hot air from the dryer to the combustion chamber. We have previously tried turning the dryer. Desiccant is placed inside the steam drum of the waste heat boiler.
    2. The last run was in December 2017, and it was started every three months for about a year. Finally, we communicated with Siemens to adopt a long-term maintenance method, so we did not attempt to ignite again.
