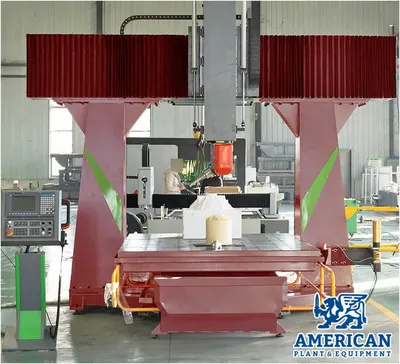

NovaStar, CM118, 5-Axis CNC Router Machine, 2000x3000x1200mm, 13.5kW Spindle (New)

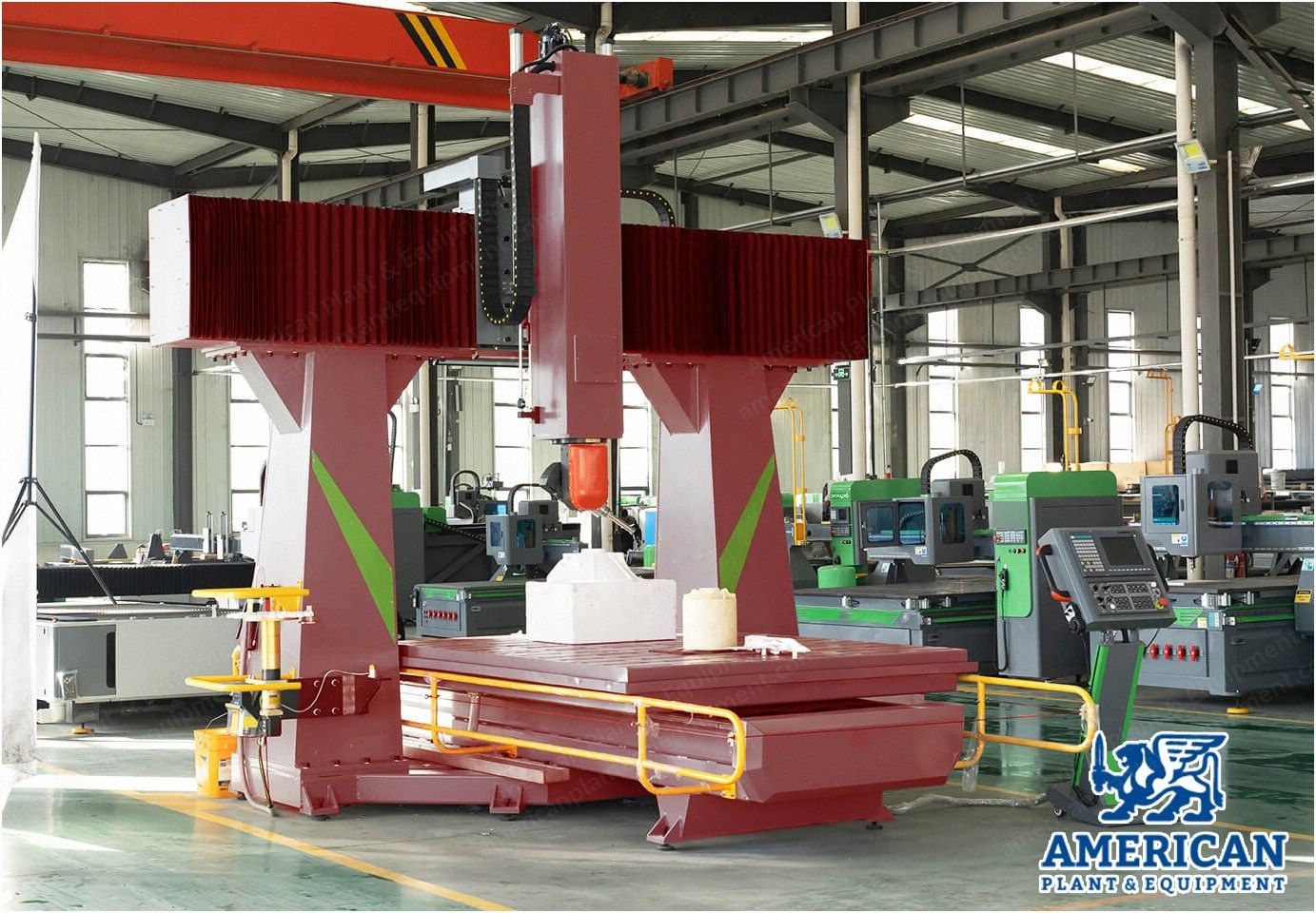

NovaStar, CM118, 5-Axis CNC Router Machine, 2000x3000x1200mm, 13.5kW Spindle

Description

  1. Overview
    1. Can effectively route specific concave cuts and 3d reliefs without surface tearing at high speed: 24000 rpm
    2. Exact z-axis travel for this model: up to 1200 mm even higher
    3. Can accommodate our full 1117.6 mm raw bun height
    4. Material: open-cell polyurethane (pu) foam
    5. Density range: 1.2 lb to 2.5 lb (metric density 20 to 24)
    6. Raw bun dimension: 82 in l x 74 in w x 44 in h (2082.8 mm x 1879.6 mm x 1117.6 mm)
  2. Specifications
    1. Working area: z axis height standard 1200 mm, x axis 2000 mm, y axis 3000 mm
    2. Control system: syntec 610ma-e5 system (with 5 axis rtcp function)
    3. Spindle: italy hiteco ac axis + italy hiteco 13.5 kw water cooling spindle (iso 30) equipped with chiller (rcw-30pts4)
    4. Inverter: delta 15 kw ms inverter with brake resistor
    5. Motor: japan yaskawa motor and drive, xyz axis 2.9 kw with reducer
    6. Guide rail: taiwan tbi 35 mm square rail, y axis with dust proof wing
    7. Machine frame: welding frame bed, bed and retreat thickness above 16 mm; standard steel gantry, welded iron columns
    8. Transmission mode: x, y, z axis taiwan ball screw drive, table moving structure
    9. Table structure: t slot table, the material is steel
    10. Transformer: dry type transformer
    11. Tool change mode: 8-position automatic tool change
  3. Condition
    1. The 13.5 kw hiteco water-cooled spindle offers excellent cooling performance, making it suitable for machining polymer materials and soft metals such as aluminum
    2. 13.5 kw spindle boasts high torque and fast machining speeds; at this density, the material is very soft, and even a less powerful spindle can be used
  4. Included
    1. Spindle: italy hiteco ac axis + italy hiteco 13.5 kw water cooling spindle (iso 30) equipped with chiller (rcw-30pts4)
    2. Inverter: delta 15 kw ms inverter with brake resistor
    3. Motor: japan yaskawa motor and drive, xyz axis 2.9 kw with reducer
    4. Guide rail: taiwan tbi 35 mm square rail, y axis with dust proof wing
    5. Transformer: dry type transformer
    6. Tool change mode: 8-position automatic tool change
    1. Working area: z axis height standard 1200 mm, x axis 2000 mm, y axis 3000 mm
