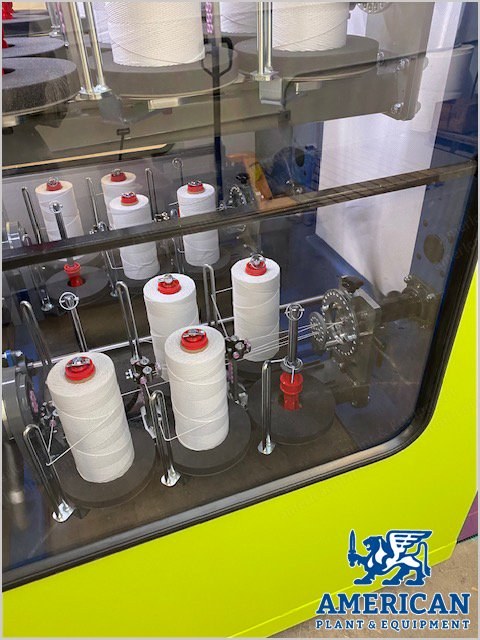

Robco, MT55-30, Combined Strander and Rope Layer, 4-14mm Rope Range, 2x11 kW

Robco, MT55-30, Combined Strander and Rope Layer, 4-14mm Rope Range, 2x11 kW

Description

  1. Overview
    1. Robco/Roblon MT55 combined strand and rope layer with extended stranding section and lifting hoist and cradle
    2. Brand new, only used to test; made approximately 500 lbs of rope in 2 hours
    3. Produces finished coiled rope from natural and synthetic fibre yarns
    4. Produces coils from 340 m to 1,030 m
    5. Three-strand and four-strand models
    6. From start to finish in one continuous operation
    7. Extremely high output
  2. Key Features
    1. Hydraulic take-up system
    2. Increased take-up capacity
    3. Two rope lays per revolution
    4. Constant winding tension
    5. Lightweight rotating parts
    6. Inverter drive

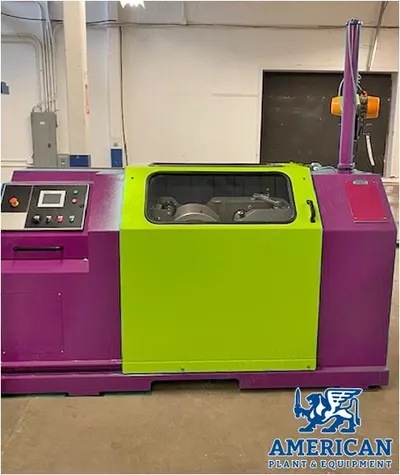

    7. User-friendly touchscreen control panel
    8. Low noise level
    9. Low power consumption
    10. Simple, robust design
    11. Easy to change strand twist
    12. Highly reliable
    13. Easy to maintain
    14. Two-motor system for electronic change of pre-twist factor
  3. Optional Equipment

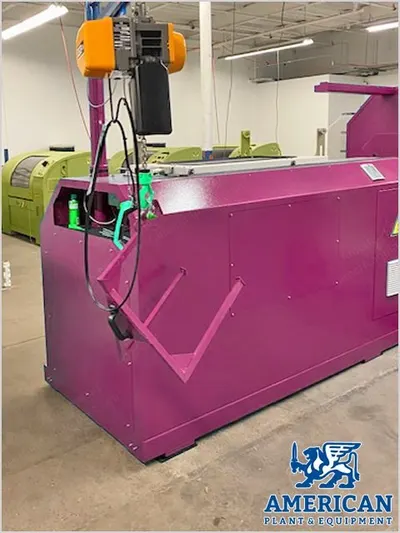

    1. Crane with lifting fork and electric shackle
    2. Winding on steel flange reels
    3. Winding on customer’s own reels
    4. Customized coiling heads
    5. Ring-twister packages for use as pay-off packages
    6. Beam-feeding system
    7. Strand-break detection system
    8. Equipment for production of wire fencing
    9. Shearing device
    10. Adaption of machine to accommodate other package dimensions and numbers of packages
    11. Motor power: 2 x 11 kW ac
    12. Mt55-30/3 weight: 4,600 kg
    13. Mt55-30/4 weight: 5,100 kg
    14. Height: 2.13 m
  4. Technical Data
    1. Rope range: Ø4-14 mm
    2. Rope flyer speed: 0-max. 900 rpm, depending on pre-twist factor
    3. Rope lay: S and Z
    4. Twists per minute: 2 x rope flyer speed
    5. Lay length: 12-66 mm/82-15 twists per metre
    6. Pre-twist factor: 0.43-2.55 x rope twist
    7. Take-up, coiling head: Ø480 mm, adjustable traverse max. 345 mm, barrel Ø135 mm
    8. Take-up, max. weight: polypropylene 30 kg

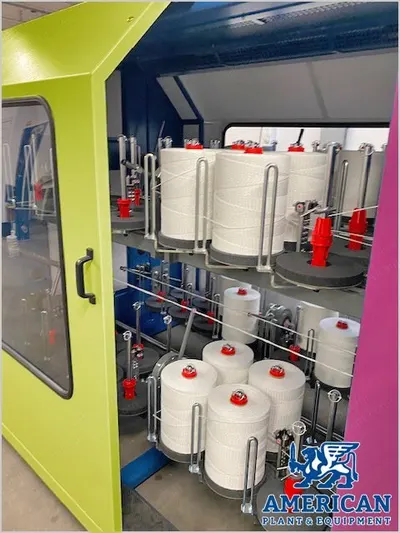

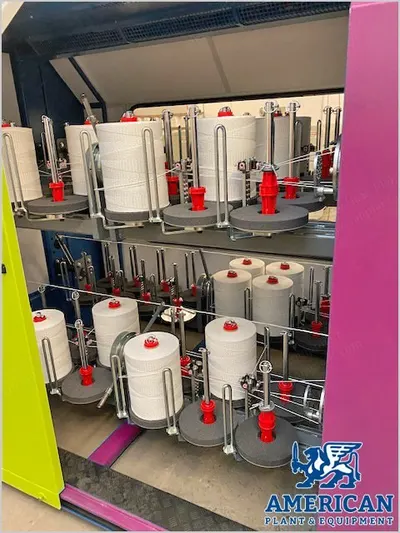

    9. Pay-off packages: mt55-30/3 mt55-30/4
    10. 3 x 10, max. Ø250 x 300 mm traverse 4 x 10, max. Ø250 x 300 mm traverse
  5. Take-Up Capacity
    1. Coiling head
    2. Ø4 mm: 4,120 m
    3. Ø6 mm: 1,830 m
    4. Ø8 mm: 1,030 m
    5. Ø10 mm: 660 m
    6. Ø12 mm: 460 m
    7. Ø14 mm: 340 m
  6. Production Capacity
    1. Output - flyer speed
    2. Ø4 mm: 115 kg - 900 rpm
    3. Ø6 mm: 340 kg - 900 rpm
    4. Ø8 mm: 660 kg - 800 rpm
    5. Ø10 mm: 1,145 kg - 750 rpm
    6. Ø12 mm: 1,850 kg - 700 rpm
    7. Ø14 mm: 2,725 kg - 650 rpm
