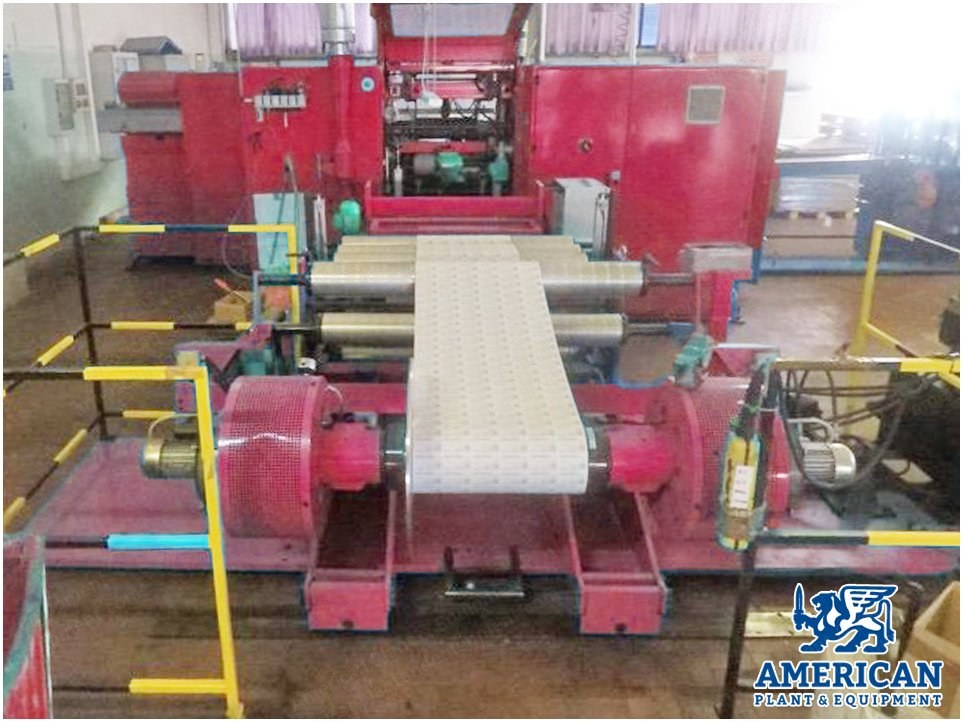

Lemu, Roboplus 210/800, 2009, 800mm Working Width, 700 m/min Max Speed, Fully Automatic Turret Slitter Rewinder

Lemu, Roboplus 210/800, 2009, 800mm Working Width, 700 m/min Max Speed, Fully Automatic Turret Slitter Rewinder

Description

  1. Input Specifications (Unwinder)
    1. Working width: 800 mm (31.5 inches)
    2. Max master roll diameter: 1250 mm (49.2 inches)
    3. Material compatibility: Paper, 40 to 120 gsm (approx. 11 lb to 32 lb bond)
  2. Output Specifications (Rewinder)
    1. Max finished roll diameter: 265 mm (10.4 inches)
    2. Min finished roll diameter: 30 mm (1.18 inches)
    3. Min finished roll width: 37 mm (1.46 inches)
    4. Core external diameter range: 14.5 mm to 58 mm (0.57 inches to 2.28 inches)
  3. Performance Details
    1. Max rewind speed: 700 meters/minute (2,296 feet/minute)
    2. Production capacity: Up to 200 cycles/hour (benchmarked at 40-meter / 131-foot roll lengths)
  4. Specifications
    1. Features: 1-color inline printing (red), remote assistance capable
