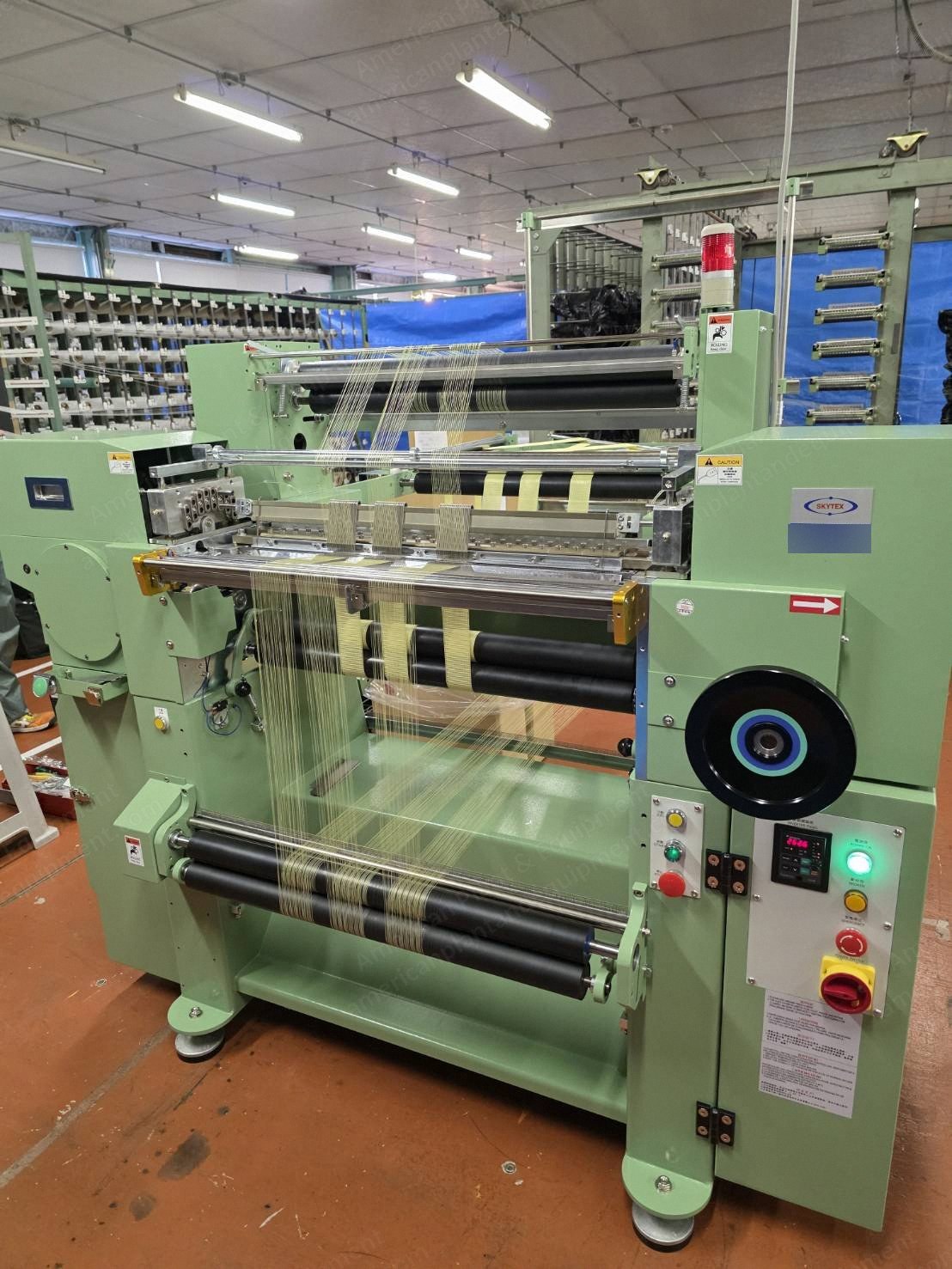

Skytex, VC88EF, Compound Needle Crochet Knitting Machine, 28 Inches Working Width, 12 Gauge, 2 Weft Bars (New)

Skytex, VC88EF, Compound Needle Crochet Knitting Machine, 28 Inches Working Width, 12 Gauge, 2 Weft Bars

Description

  1. Overview
    1. Compound needle crochet knitting machine
    2. Working width: 28 inches
    3. Gauge: 12
    4. Weft bar: 2 bar
    5. Needle bed: compound needle bed x 1 unit
  2. Specifications
    1. Double needle bed, to match special “Groz-Beckert” compound needle to knitting tapes
    2. Tapes construction pattern design can control by chain link (cam)
    3. Machine uses special “DuPont Kevlar” fiber yarn
    4. Produces anti-cut resistant, abrasion resistant, and flame-resistant tape
    5. Tape products used specially for industries, as for workwear, safety gloves, tires, helmet, medical, etc.
  3. Included Components
    1. Compound needles: 350
    2. Weft guide tube: 350
    3. Warp needle: 350
    4. Droppers: 600
    5. Main drive motor: 1.5 hp (inverter control)
    6. Output device: 1
    7. Density change gear: 1
    8. Warp feeding roller: 1
    9. Weft feeding roller: 1
    10. With yarn creel, 456 ends, 250 x 250 mm pitch space
    11. 12 head high x 6 line + 12 head high x 13 line) x 2 sides
