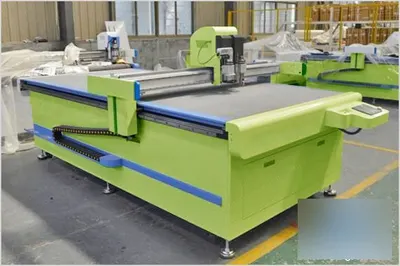

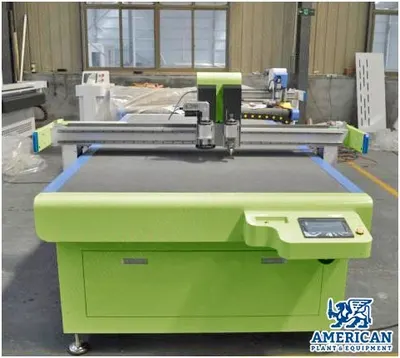

NovaStar, DN145, Vibrating Knife Cutting Machine, 1300x2500x200mm, Vacuum Honeycomb Table (New)

NovaStar, DN145, Vibrating Knife Cutting Machine, 1300x2500x200mm, Vacuum Honeycomb Table

Description

  1. Overview
    1. Vibrating knife cutter
    2. Working area 1300 mm x 2500 mm x 200 mm
    3. Control system: Mcgs cut panel controller

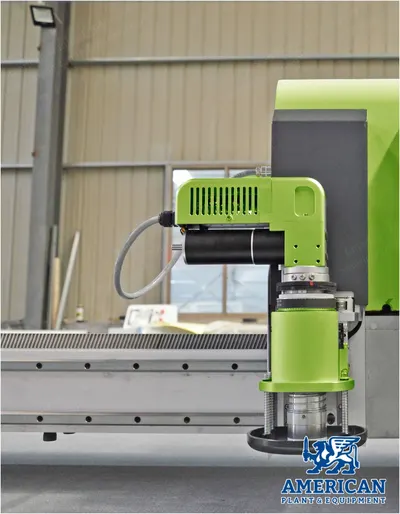

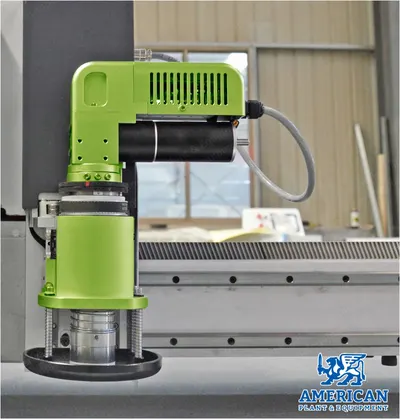

    4. Tools: vibrating knife with nesting
  2. Drive and Motion

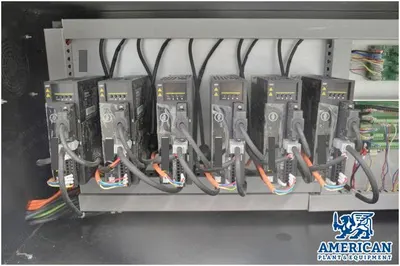

    1. Inverter servo motor and driver
    2. Guide rail: Pmi linear square guide rail

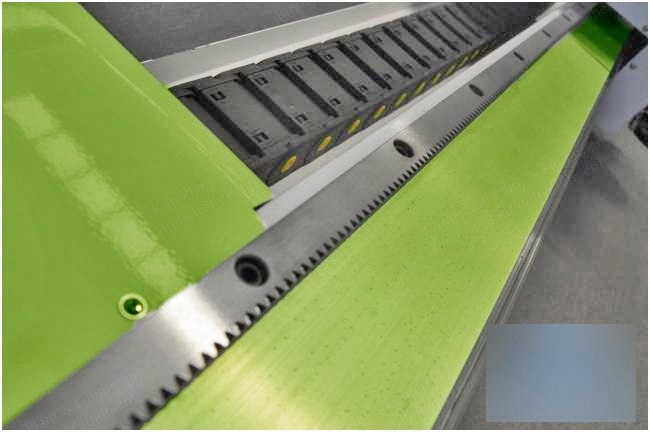

    3. Transmission: helical rack and pinion for x and y axis
    4. Tbi ball screw for z axis
  3. Worktable
    1. Vacuum honeycomb work table
  4. Performance
    1. Cutting speed: 200 to 1300 mm/s (according to material type and thickness)
    2. Cutting thickness: ≤70 mm (according to different cutting materials)
    3. Mechanical accuracy: ±0.01 mm
  5. Operating Environment
    1. Temperature: -10°c to 40°c
    2. Relative humidity: 10% to 90%
  6. Electrical
    1. Working voltage: 220 v / 380 v
  7. Dimensions and Weight
    1. Machine packaging size: 3300 x 2000 x 1660 mm
    2. Machine net weight: 1200 kg
    3. Machine gross weight: 1300 kg
