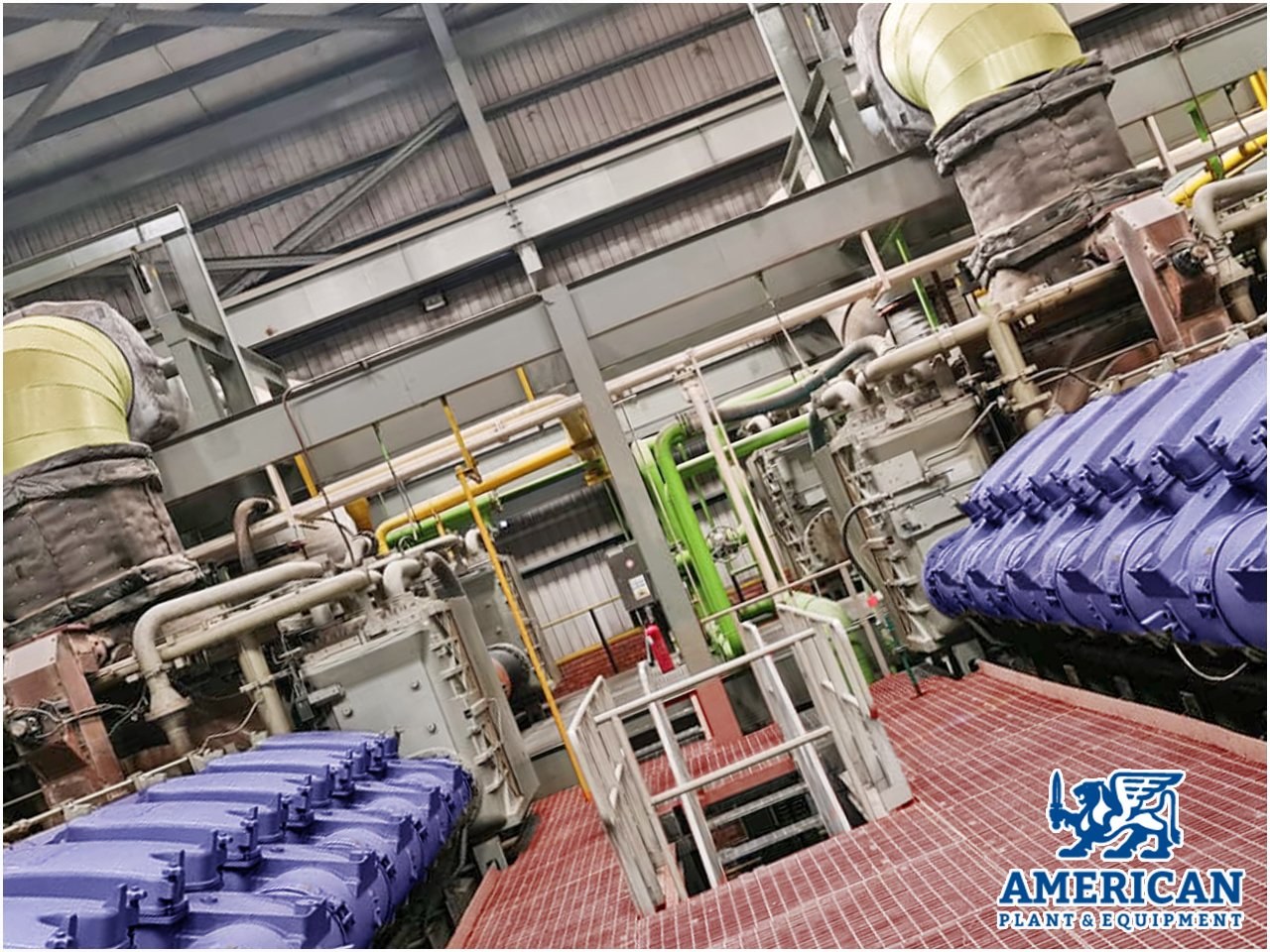

MAN, 18V48/60 TS, Diesel Power Plant, 19305 kW, 50 Hz

MAN, 18V48/60 TS, Diesel Power Plant, 19305 kW, 50 Hz

Description

  1. Overview
    1. Man 18v48/60 ts diesel plant
    2. Power output: 19,305 kw per unit
    3. Fuel: diesel, convertible to hfo
    4. Frequency: 50 hz
    5. Average running hours: 5,000 to 6,000
    6. Includes bop, alternators, charge air systems, compressors, radiators, and control
  2. Engine Details
    1. Brand: Man turbo & diesel
    2. Model: 18v48/60 ts
    3. Rated output: 19,305 kw (continuous) per unit
    4. Fuel: Hsd (diesel); can be converted to hfo with fuel heating system modification
    5. Speed: 500 rpm
  3. Alternator Details
    1. Brand: Abb
    2. Rating: 24,132 kva
    3. Voltage: 11,000 v
    4. Frequency: 50 hz
    5. Power factor: 0.8
  4. General Information
    1. Manufacturing year: 2014
    2. First operation: January 2016
    3. Average running hours: Approx. 5,000 to 6,000 hours
    4. Status: Very good condition, fully operational
    5. Application: Backup/support for a 100 mw cat-engine-based power plant
  5. Scope of Supply
    1. Man engines 18v48/60 ts – 3 units
    2. Abb alternators – 3 units
    3. Abb turbochargers – 6 units
    4. Charge air systems – 3 sets
    5. Ventilation fans – 6 units
    6. Diesel fuel separators – 2 units
    7. Fuel boosters & fuel heating equipment – 3 sets
    8. Air compressors – 2 units (1+1)
    9. Radiators – 18 units (6 × 3)
    10. Lube oil coolers & heat exchangers – 3 sets
    11. Sacos control & interface panels – 9 units
    12. Engine auxiliary panels – 3 units
    13. Engine control modules – 3 units
    14. Common control module – 1 unit
    15. 415 v breaker panels – 10 units
    16. Ac/dc panels & ups
    17. 11 kv sf₆ breakers – 7 units
    18. Neutral grounding resistors (ngr) – 3 units
    19. Radiator control panels – 21 units
    20. Auxiliary transformers (2,000 kva) – 2 units
  6. Performance Data
    1. Sfoc (man declared): 182.1 g/kwh ±5%
    2. Achieved: 188.7 g/kwh
    3. Lube oil consumption (man declared): 9.9 kg/hr ±20%
    4. Achieved: 6.13 kg/hr
    5. Total parasitic load: < 2.5% (approx.)
  7. Inspection & Testing
    1. Due to contract completion, the plant cannot be operated in island mode. However, engine turning and parameter checks are possible at site.
  8. Hfo Conversion (Optional)
    1. The engines were purchased and operated on diesel. Conversion to hfo operation is possible with fuel system modification, including heating systems and auxiliary boilers.
    2. Estimated man quotation for hfo conversion: upon request
    3. Boilers are not included in the current scope.
