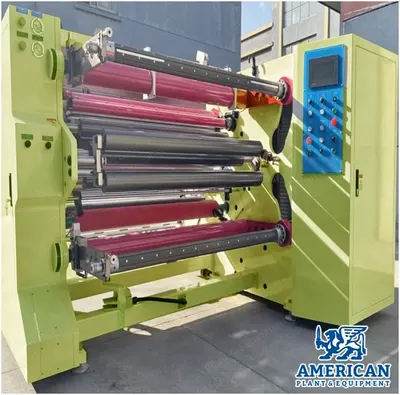

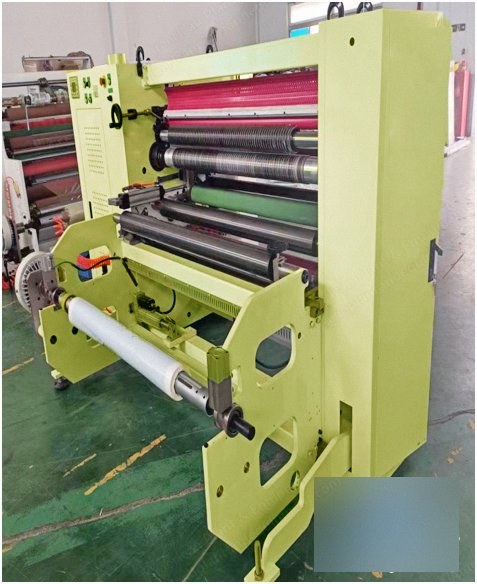

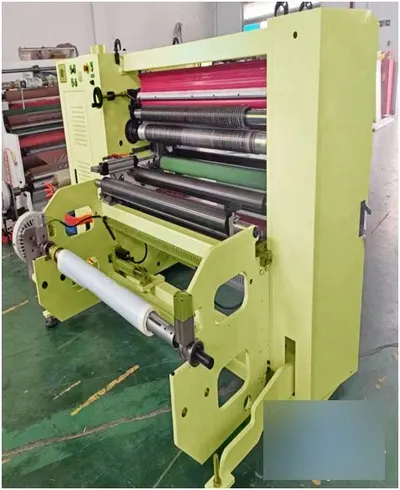

NovaStar, SR255, Double Shaft Slitting & Rewinding Machine, Width 2200mm, Speed 200m/min (New)

NovaStar, SR255, Double Shaft Slitting & Rewinding Machine, Width 2200mm, Speed 200m/min

Description

  1. Overview
    1. Double shaft slitting and rewinding machine
    2. For paper, adhesive tape, label, film, etc.
  2. Unwind Section
    1. Unwind base: integral shaft type movable base - 1 set
    2. Unwind shaft: pneumatic compressed shaft 3 in - 1 set
    3. Unwind brake: electromagnetic brake 20 kg - 1 set
    4. Unwind web tension PLC diameter auto calculation - 1 set
  3. Rewind Section
    1. Rewind driver system: 3 motors in a system to control tension - 1 set Japan Mitsubishi
    2. Rewind motor: A.C. motor 5 HP control by tension inverter - 1 set ABB
    3. Rewind system: pneumatic compressed shaft 3 in - 2 sets
    4. Rewind gap roller: position auto activating by PLC control - 1 set
    5. Trim remove device: strong blower tube with motor A.C. 5 HP - 1 set
    6. Spread roller: adjustable bowed roller 100 mm - 1 set
    7. Maintenance kit: tools and instruction - 1 set
  4. Electrical Section
    1. Control system: PLC programmable unit and Schneider inverter bus system - 1 set Japan Mitsubishi
    2. Control panel: touch screen (for setting, tension, length, etc.) - 1 set French Schneider
    3. Rewind tension control: ultra-sonic detect diameter into PLC, to control E/A converter output tension - 2 sets
    4. Control panel box: connected control frame with - 1 set
  5. Slitting Knives
    1. Shear cutter: male knife stand roller - 1 set
    2. Female knife stand roller - 1 set
    3. Male knives: male knife set 105 x 60 x 20T (movable) - 20 sets
    4. Female knives: female knife sleeve O.D. 105 x I.D. 80 x T30 (movable) - 20 sets
    5. Length x width x height: 4000 x 1900 x 1600
    6. Weight: N.W. 2200 kg, G.W. 2400 kg
    7. Total power: 15 kW
  6. Specifications
    1. Voltage: 220V, 60 Hz
    2. Capacity: Speed 200m/min
    3. Rewind diameter: 450mm
    4. Unwind diameter: 800mm
