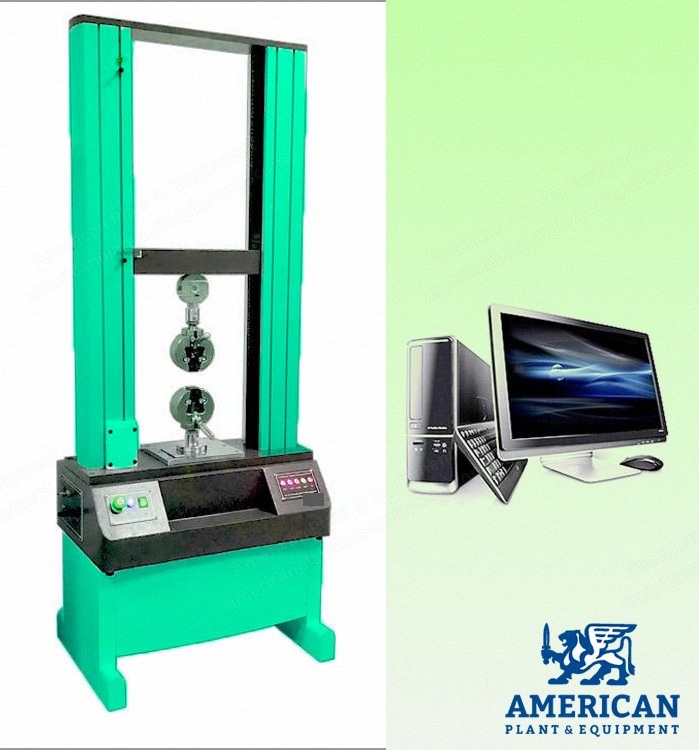

NovaStar, MC300, New, 50kN Capacity, 800x550x2200mm, Panasonic AC Servo Motor (New)

NovaStar, MC300, New, 50kN Capacity, 800x550x2200mm, Panasonic AC Servo Motor

Description

  1. Overview
    1. 50kn universal testing machine is a new material test machine that combines electronic technology and mechanical transmission.
    2. It has accurate load speed and range of force measurement, with high accuracy and sensitivity for load, displacement measurement and control.
    3. It can test constant-velocity loading and constant-velocity displacement.
    4. The machine is simple to operate, especially suitable for controlling quality in production line.
    5. This series is mainly applied to test non-metallic and metallic materials with load less than 5 ton.
  2. Specifications
    1. Max load: 5 kn, 10 kn, 20 kn, 50 kn.
    2. Accurate grade: 1 % / 0.5 %.
    3. Effective measuring range: 0.2 % ~ 100 % (1 grade) / 0.4 % ~ 100 % (0.5 grade).
    4. Measuring accuracy: display the value ±1 % / display the value ±0.5 %.
    5. Tester resolution: max load 1/200000, regardless of inside and outside, constant the resolution.
    6. Load sensor: basic configuration includes one sensor (max load); extended configuration can add more sensors.
    7. Effective testing width: 390 mm (can be widened according to customer requirement).
    8. Effective tensile stroke: 800 mm; 1000 mm; 1200 mm (can be customized).
    9. Range of testing speed: 0.01 ~ 200 mm/min; 500 mm/min (1000 mm/min is option).
    10. Accuracy of displacement measurement: tolerance ±0.5 % / tolerance ±0.2 %.
    11. Deformation of measured system: min span 10 mm, max range of deformation 800 mm extended deformation.
    12. Deformation of measured system: min span 25 mm, 50 mm, 100 mm, range of deformation 5 mm, 10 mm, 25 mm.
    13. Accuracy of measured deformation tolerance: ±0.5 % (according to choose the larger or small deformation).
    14. Safety: electronic-limit protection.
    15. Testing platform moving device: fast / slow two speeds to control, can jog.
    16. Return back: manual or automatic operation; after the test, the moving iron returns to initial position with the highest speed by manual or automatic operation.
    17. Overload protection: overload 10 %, automatic protection.
    18. Fixture: a set of tensile fixture.
    19. Machine size: 800 x 550 x 2200 mm (length x width x height).
    20. Power system: panasonic ac servo motor + driver + high-precision ball screw.
    21. Power supply: 220 v, 50 hz or 60 hz as per customer requirement.
    22. Power: 0.4 kw (depending on different demand of force, using different motor).
    23. Machine weight: about 250 kg.
    24. Units: kg, n, lb, ton can be exchanged.
  3. Main Functions
    1. This test machine is applied to test flexible material with large deformation, such as rubber, plastics, leather and others.
    2. It completes tests of tensile, tear, adhesive strength, peel and other tests.
    3. It is equipped with large deformative extensometer which has specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
  4. Main Features
    1. Adopted photoelectric encoder to measure the displacement.
    2. The controller uses the embedded single-chip microcomputer structure with multi-function software, combining measurement, control, calculation and storage.
    3. It can automatically calculate stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, and automated statistical results.
    4. Automatically records the biggest point, breaking point, the designated point value or the rate of elongation.
    5. Uses computer to display dynamic curves in the testing process and process the data.
    6. After testing, it can re-analyze and edit data by amplifying curves through the graphics processing module, printing reports.
    7. Product performance reached the international advanced level.
  5. Corresponding Standard
    1. Gb/t16491-1996 electronic universal testing machine.
  6. Applicable Industry
    1. Widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities, research laboratories, inspection arbitration, technical supervision departments and many other industries.
    2. It is the basic equipment for quality management and physical tested.
  7. Software Features
    1. Function of standard modular: provides users with necessary applications to the test, covering gb, astm, din, jis, bs and other testing standard specification.
    2. Tested product information: provides users with data to set about the products, one time to input and re-use permanently; data can be corrected by the formula automatically for improving accuracy.
    3. Dual-report editor: provides users with the reported format that users choose (testing program add excel reported format, extend the previous single pattern of statements).
    4. The data’s unit of length and force can be exchanged; unit of force is t, kg, n, kn, g, lb; unit of length is mm, cm, inch.
    5. Auto-optimization of graphic scale, displays the best measurement of graphics; it can test the moving exchange in graphics; it has load-displacement, load-time, displacement-time, stress-strain load 2 points extending maps, and lots of graph compared.
    6. Test results can be output in excel format.
    7. Testing result can be automatically preserved or manual preserved; after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load x% in break displacement, and so on; the test data can be stored in any disk.
    8. Software has a capability that can output the before data.
  8. Included Accessories
    1. Warranted book within one-year and operating instructions.
    2. A group of fixture.
    3. Testing software for tensile machine.
    4. A set of brand computer, color printer.
  9. Items That Can Be Tested
    1. Tensile stress.
    2. Tensile strength.
    3. Fixed stress.
    4. Stress strength.
    5. Tensile strength.
    6. Rate of elongation at break.
    7. Rate of stress at break.
    8. Tear strength.
    9. The value of force at any point.
    10. Rate of elongation at any point.
    11. Pull-out strength.
    12. Force of adhesion and the peak of force.
