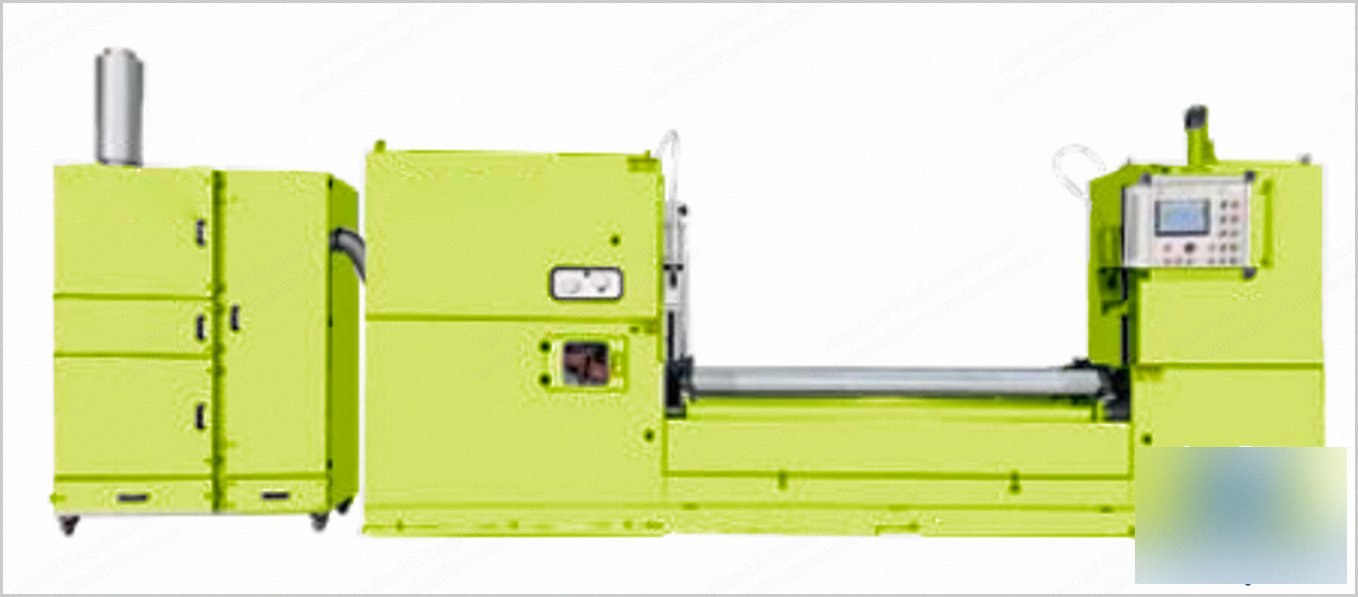

Description Overview High-end cylinder foam peeling machine The basis frame is full steel plate, high weight and high stability Band knife wheel made by alloy steel, hardness up to HRC60 above, wear resistant, service life can be more than ten years The knife holder plate is made of high-speed steel, the hardness reaches HRC60, the usage can be more than eight years The knife pushing device adopts advanced technology, can automatically feeding knife but also can be manually fine-tuned individually The front sponge roller can rise automatically without manual operation, and more precise cutting at the end tail The band knife wheels move forward automatically with the wear of the knife belt to keep the force on each knife contact surface uniform Cnc adopts a full set of siemens system which is stable and reliable, with accurate cutting precision and high cutting speed Specifications Cutting width: 500 to 2300 mm Cutting speed: 160 m/min (no cutting marks) Cutting diameter: 20 to 1600 mm Cutting thickness: 0.5 to 30 mm Cutting accuracy: 0.5 to 3 mm ± 0.05 mm Motor power: 16 kW Machine weight: 4000 kg Overall dimension (l x w x h): 5000 x 2500 x 2000 mm
