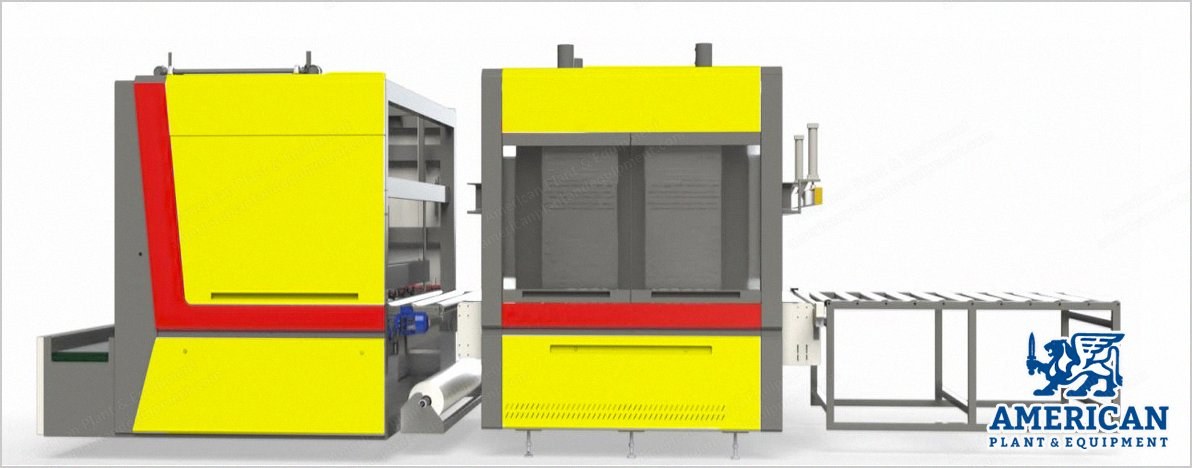

NovaStar, MP181, Automatic Mattress Roll Packing Machine, 2200x2000mm Max Size, 100T Pressure, 29 kW
Scroll to zoom
100%
Description
Overview
Automatic mattress roll packing machine
Helps mattress manufacturers reach the roll up packing process, reduce shipping cost per unit, or create an excellent package for direct-to-consumer and retail markets

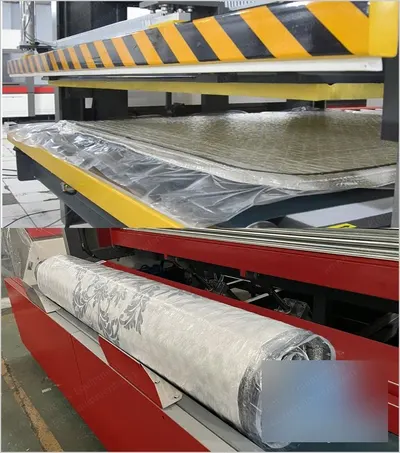

Mattress compressing machine (dress mattress up by PE bag, after pressing, welding last side and auto transmit)
Compress and roll packaging only, without folding function
Roll packing machine, setting the roll packaging diameter according to requirement depending on the different sizes mattress
Packaging cost saving, for the front compress machine used 0.09mm thickness compression bags and the last roll packing machine used 0.04mm thickness film
Specifications
Maximum mattress size: 2200 x 2000mm
Maximum mattress height: 450mm
Roll diameter range (adjustable): 220mm to 480mm
Maximum pressure: 100 ton
Capacity: 300 to 400 mattresses per day
Total power: 29 kW
Voltage: 3 phase AC 480V/60Hz (customized)
Suitable plastic material: PE plastic
Air pressure: 0.6 to 0.8 MPa
Net weight: 7000 kg
External dimension: L7400 x W3380 x H2550mm
Control System
Siemens control system (PLC, HMI, inverter)
Control panel can be translated into various languages and is equipped with a remote system for easy installation and maintenance
