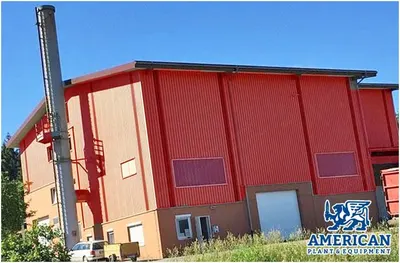

Lambion, Power Plant, 2008, 950 kW, 7.5 t/h Steam, 32 Bar

Description

Overview
1. Lambion power plant
2. Brand: Lambion
3. Model: Power plant
4. Year commissioned: 2009
5. Power plant built for heat supply
6. Siemens (turbine, measurement and control technology)
7. Imtech (electrics and performance data)
Performance Data
1. 950 kW rated electrical power
2. 2.00 MW rated thermal output HT (128 °C)
3. 1.50 MW thermal output NT (85 °C)
4. 6.74 MW thermal firing capacity
5. Steam output: 7.5 t/h
6. Approximately 11,000 tonnes of fuel required per year LPM and WHS
Boiler
1. Brand: Lambion
2. Year of construction: 2008
3. Maximum steam production: 7.5 t/h
4. Maximum permissible pressure: 32 bar
5. Maximum permissible vapour temperature: 440 °C
Turbine / Generator
1. Brand: Howden
2. Machine twin CA 34
3. Year of construction: 2008
4. Generator manufacturer: AVK
5. Generator type: DSG 74 M2
System Data: Flue Gas Cleaning
1. Brand: Scheuch
Condenser / Recooling
1. Brand: Hamworthy
2. Condensing capacity: 4.5 MW

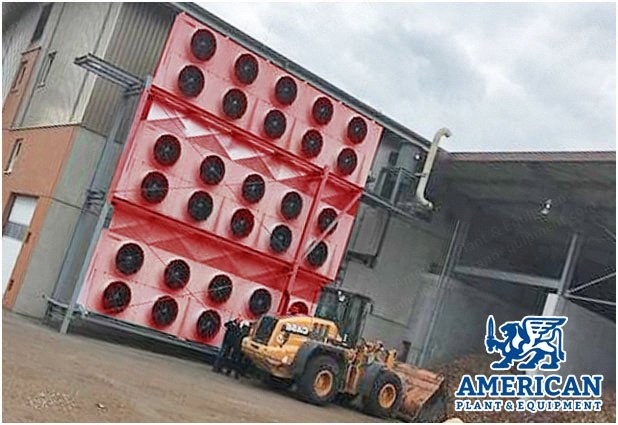

3. Recooling plant: 30 Thermokey emergency cooler, FU controlled
Other System Components
1. Transformer 20 kV / 0.4 kV, 1,600 kVA
2. Siemens control system
3. Water treatment: Veolia
4. Flue gas measurement: Airtec
5. Moving floor system
6. Wet ash removal

Capacity	950 kW rated electrical power, 7.5 t/h steam output
Condenser Brand	Hamworthy
Control system	Siemens
Flue Gas Cleaning Brand	Scheuch
Generator Manufacturer	AVK
Generator Type	DSG 74 M2
Turbine Type	Twin CA 34
Water Treatment	Veolia

Condensing Capacity	4.5 MW
Max Permissible Pressure	32 bar
Max Permissible Vapour Temperature	440 °C
Rated Thermal Output (HT)	2 MW
Thermal Firing Capacity	6.74 MW
Thermal Output (NT)	1.5 MW

Generator Rating	1,600 MVA
Voltage	20,000 V
