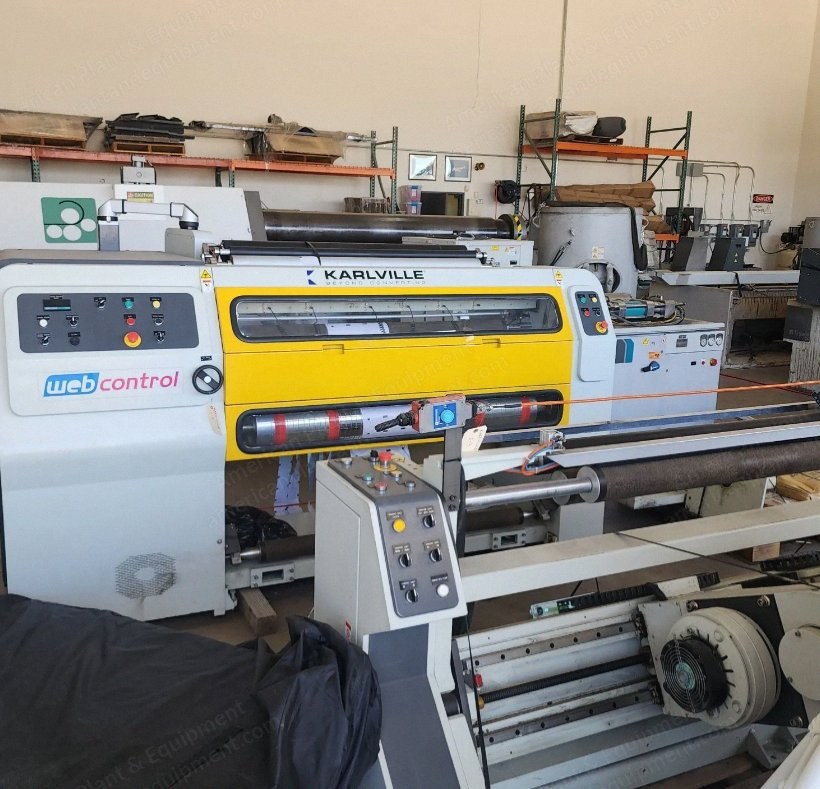

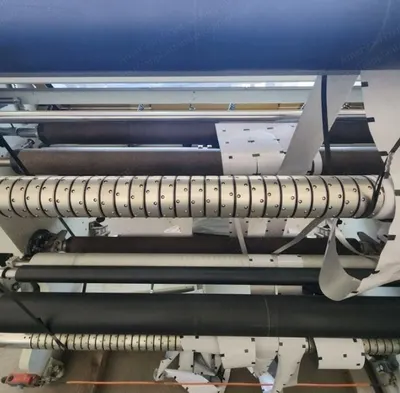

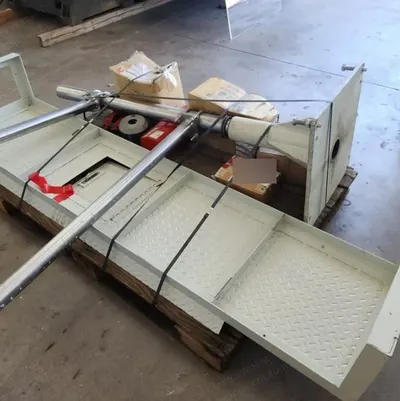

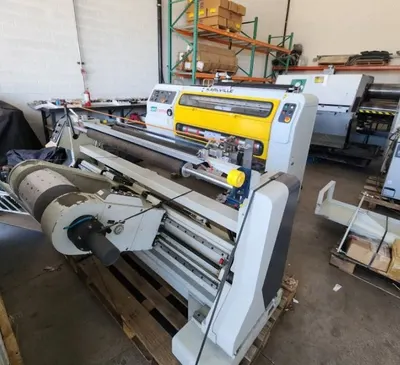

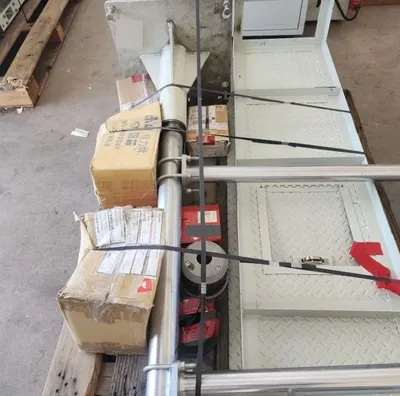

Karlville, HS Pro 1300, 2021, Slitter Rewinder, 1300mm Max Web Width, 500 m/min Max Speed

Karlville, HS Pro 1300, 2021, Slitter Rewinder, 1300mm Max Web Width, 500 m/min Max Speed

Description

  1. Overview
    1. Karlville HS Pro 1300 slitter rewinder
    2. Year: 2021
    3. Used condition
  2. Specifications
    1. Slit width: 50 mm and up (lower upon request)
    2. Unwind roll diameter: 1000 mm independent
    3. Knives: shear, razor and pneumatic shear with tangential web path
    4. Unwind roll weight: max 1,200 kg (2,645 lbs)
    5. Winding tension: 0.5 pli to 2.5 pli standard
    6. Unwind roll cores: 3 in i.d. / 6 in i.d. (option)
    7. Machine speed (max): 500 m/min (depending on material type/quality)
    8. Finished roll diameter: max 610 mm
    9. Finished roll cores: 3 in i.d. / 6 in i.d. (option)
  3. Material Capabilities
    1. Shrink sleeve materials: plastic films made from pe, pp, pet, pvc, papers and laminates (depending on material type and thickness)
    2. Rigid films: 10~200 micron / soft films: 12~300 micron
