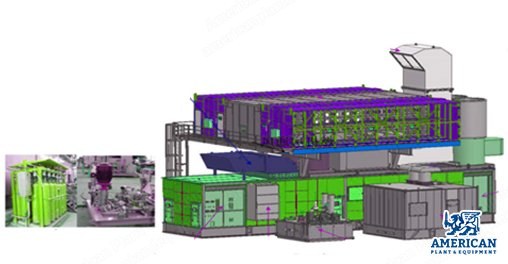

GE, LM6000PF Sprint, 2017, 47MW, 50Hz, Natural Gas Turbine Generator Set

GE, LM6000PF Sprint, 2017, 47MW, 50Hz, Natural Gas Turbine Generator Set

Description

  1. Overview
    1. Engine: GE Vernova
    2. Production time: 2017 (engine also)
    3. Engine serial numbers: 192-5X1, 192-5X2, 192-5X3
    4. Fuel type: Natural gas
  2. Operating Hours
    1. 192-5X1: 31,474 hours
    2. 192-5X2: 29,596 hours
    3. 192-5X3: 8,000 hours
  3. Gas Turbine Technical Data
    1. Gas turbine manufacturer: GE Vernova (USA)
    2. Model: LM6000PF Sprint
    3. Type: Two shaft, cold and hot drive
    4. Rated output (ISO): 47 MW
    5. Output frequency: 50 Hz
    6. Exhaust temperature (ISO): 460 °C
    7. Exhaust amount (ISO): 133 kg/s
    8. NOx emission (ISO): 15 ppm
  4. Generator Technical Data
    1. Generator manufacturer: Brush Electrical Machines Ltd.
    2. Model: BDAX7-290ERJT
    3. Rated output (ISO): 53.7 MW
    4. Power factor: 0.85
    5. Output voltage: 10.5 kV
  5. Scope of Supply per Set
    1. Turbine + alternator + cooler + lube + added gas + water treatment + steam tank + steam turbine (12 MW) + HRSG + steam turbine alternator + chimney + tube + fire fighter + transformer + control + high voltage cabinet + low voltage cabinet + MCC + HV comp art
