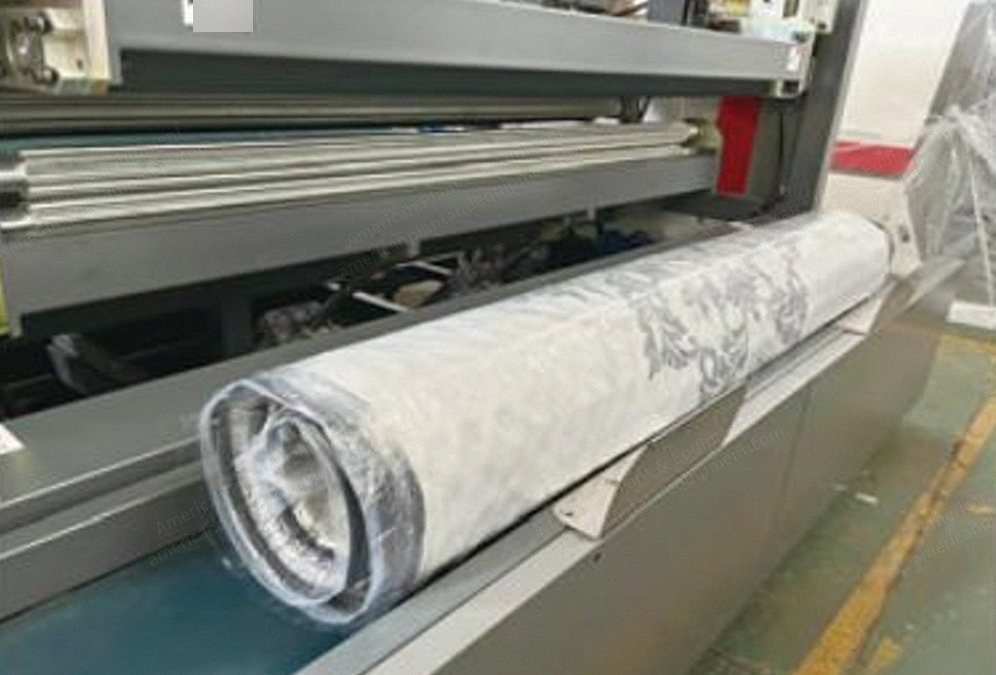

NovaStar, MP183, Automatic Mattress Roll Packing Machine, 2260x2300mm Pressure Plate, 100T Max Pressure (New)

NovaStar, MP183, Automatic Mattress Roll Packing Machine, 2260x2300mm Pressure Plate, 100T Max Pressure

Description

  1. Overview
    1. Automatic mattress roll packing machine (seal three sides)
    2. The mattress compression folding and wrapping machine is composed of five parts: automatic bagging, conveying table, compressor, rotary folding conveying platform and wrapping machine.
    3. At the same time, it can be wrapped directly or folded in half after packaging. Two operations are required to carry the mattress.
    4. Machine can adjust full auto working or separate working.
    5. Function: compressor, folding and roll packing together.
    6. Ce certificate, patent.
    7. Have screen from start to end to protect worker safety.
  2. Specifications
    1. Size of pressure plate: 2260 mm x 2300 mm
    2. Max pressure: 100 t
    3. Max mattress size: 2000 x 2200 x 450 mm
    4. Efficiency: 35 seconds per unit
    5. Diameter: adjustable from 220 to 480 mm (no limited)
    6. Total power: 45 kw
    7. Foam density: ≥25 kgs/m³, ≤65 kgs/m³
    8. Voltage: 480 v / 60 hz
    9. Total weight: 15000 kg
    10. Overall dimension: 13000 x 3600 x 3100 mm
    11. Package speed: 30 s to 35 s
    12. 0.05 mm is used for wrapping film
    13. 15r wrapping function belongs to film clamping mode, which is from bottom to top.
    14. The compressor has common packaging function and compression dual function, and the position of the press is equipped with lifting turning platform.
    15. 600 to 700 units can be operated every day.
    16. Need 2 x 40 hq to loading.
  3. Electrical Components
    1. The main electrical appliances are Siemens brand (the plc, touch screen, frequency converter and remote module used in the machinery are all German Siemens brand).
