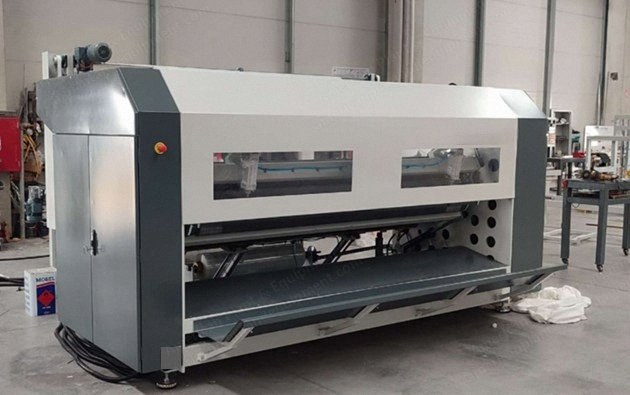

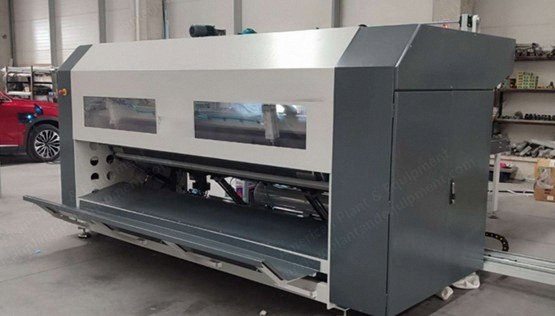

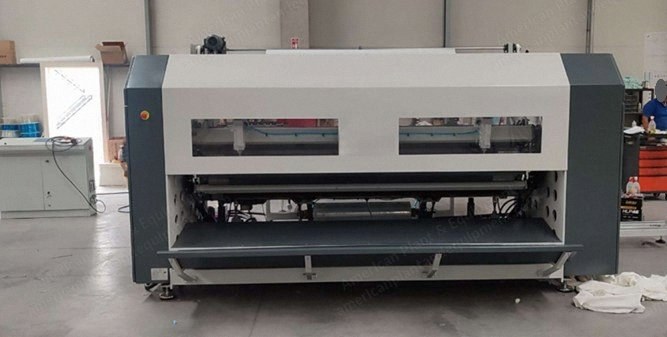

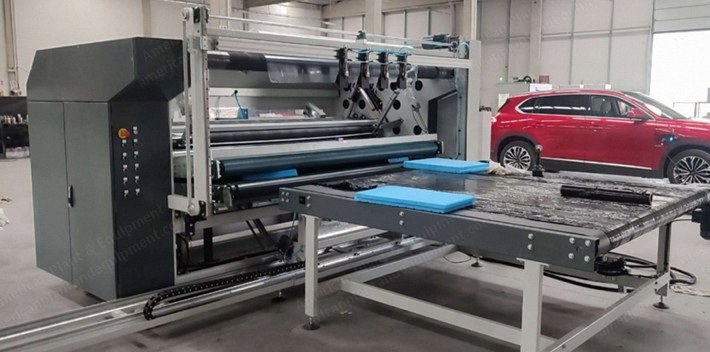

NovaStar, GK188, Pet Bed Roll Pack Machine, Width 1600mm, 5 kW (New)

Overview

1. Pet bed roll pack machine

2. Specially designed to package pet beds, dog beds, cat beds, etc.

3. The pet bed packing machine has been specially designed to package pet beds, pillows, foam layers, toppers, and many other small-sized foam products.

4. Its compact and efficient design allows products to be compressed, packed, and prepared for easier boxing, handling, storage, and shipping.

5. The machine can pack and roll multiple products simultaneously.

6. Standardize your product packaging size: 1 product/15 sec packed and rolled.

7. Space-saving design: the machine features a compact footprint, providing a complete space-saving solution for your rolling and packaging process.

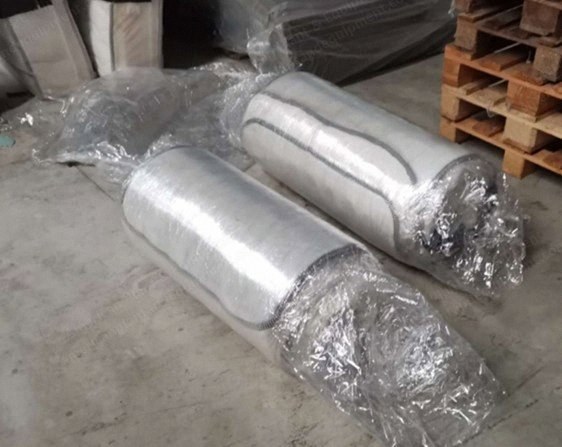

8. Stretch film wrapping: as the product is rolled inside the rolling cage, it is automatically wrapped with stretch film, ensuring secure and efficient packaging.

9. Cost advantage: the rolling cage compresses the product during the rolling process, eliminating the need for a separate pressing operation and reducing overall production costs.

10. Easy-to-handle packaging: the compact roll diameter makes the final package ideal for storage, transportation, retail, and e-commerce applications.

11. Easy and safe packaging: high throughput at 240+ packages per hour.

Specifications

1. Min/max product width: 500 to 1600 mm

2. Min/max product length: 1000 to 2000 mm

3. Min/max product height: 50 to 300 mm

4. Max product exit diameter: 150 to 300 mm

5. 1 product/15 sec packaging and rolling

6. Nylon micron: 17 to 40 microns stretch film

7. Machine size: w: 3500 mm, l: 4600 mm, h: 2350 mm

8. Product feeding height: 900 mm

9. Power: 5 kW

10. Conveyor speed: 30 m

11. Machine weight: 3,500 kg

12. Compressed air: 6 bars

13. Power requirement: 3 phase 480 V, 6 kW

14. Required set-up area: 4000 mm x 4500 mm (width x length)

15. Required loading area: 2350 mm x 6000 mm (width x length)

16. Number of employees: 1

17. Certificate: CE

18. Warranty: 2 years

Application Area

1. Pillow industry

2. Quilts industry

3. Mattress/topper industry

Material

1. Foam pillow

2. Fiber pillow

3. Latex pillow

4. Viscofoam pillow

5. Foam sticks + fiber blended pillow

6. Quilts

7. Pet beds

8. Foam layer
