Hydril, 11" 20,000 PSI BOP System, 11" 15,000 PSI Annular, Dual Ram BOPs, 20,000 PSI Choke and Kill Manifold

Overview

1. The Hydril 11” 20,000 psi HP/HT BOP system delivers unique and proven reliability for ultra high pressure/high temperature (UHP/HT) drilling, well testing, completion and intervention operations both on- and offshore.

2. This industry leading BOP system has set the performance expectations for pressure control equipment in the world.

3. It offers significant advantages such as working with larger tools and drill pipe sizes and better resistance to buckling forces.

4. The Hydril 11” 20,000 psi UHP/HT BOP system delivers proven reliability with a successful track record – it was the first ever successful deployment of such a BOP system in the Norwegian sector of the North Sea on the ultra high pressure/high temperature 1/5-5 Solaris gas exploration well.

5. Bespoke, flexible service offered.

Key Features

1. 11” 15,000 psi Hydril annular

2. 11” 20,000 psi identical Hydril dual ram BOPs with proven shear capacity and Hydril’s innovative multi position lock system

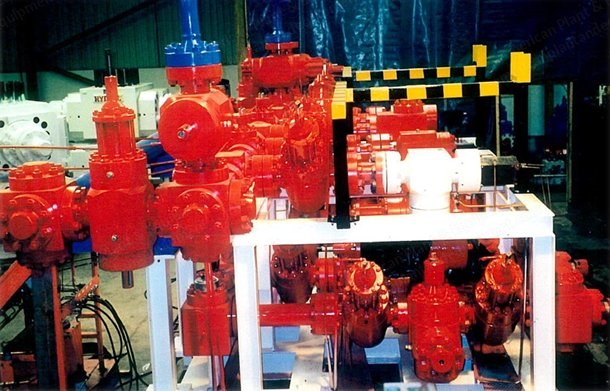

3. 20,000 psi hydraulic choke and kill manifold

4. All equipment is manufactured in accordance with API 16A and NACE MR-01-75 standards

5. Fully OEM certified complete with IRC, COC and ABS (CDS standard) until Q3 2020

6. API monogrammed

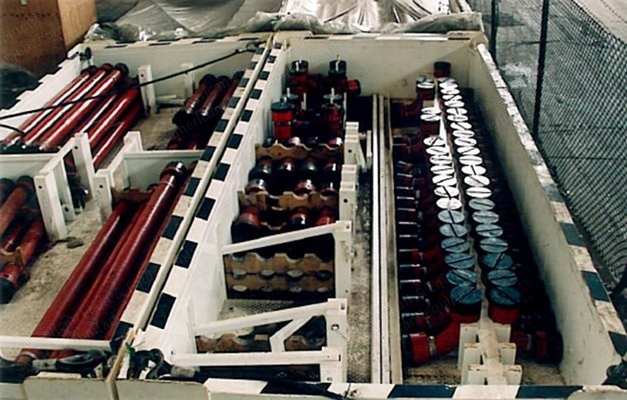

7. Complete 20,000 psi FMC / NOV flow iron package available which is specifically developed for UHP/HT and sour service operations

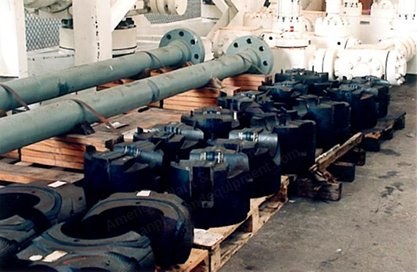

8. A selection of fixed rams is available for both tubing and drillpipe in sizes between 1 ⅜” to 7 ⅝”

9. Hydrostatic shell pressure tested to 30,000 psi

10. Can be custom configured for emergency response applications such as capping and snubbing operations

11. Bespoke higher specification elastomers can be delivered upon demand

Engineering Data – 11” 15,000 psi Hydril Annular BOP

1. Application: offshore (subsea and surface) and onshore

2. Bore size: 11 in / 279mm

3. Working pressure: 15,000 psi / 1035 bar

4. BOP type: spherical annular

5. Hydril GX style

6. Head type: latched

7. Top connection: 11 in 15,000 API type 6BX studded

8. API BX-158 stainless steel ring groove

9. Bottom connection: 13 5/8 in 15,000 API type 6BX flange

10. API BX-159 stainless steel ring groove

11. Height: 74.38 in / 1,890mm

12. Body diameter: 67.13 in / 1705mm

13. Weight (approximate) – BOP assembly: 35,500 lb / 16,100 kg

14. Weight (approximate) – head: 7,540 lb / 3,420 kg

15. Weight (approximate) – piston: 4,490 lb / 2,040 kg

16. Certification: ABS & OEM in accordance with API 6A, API 16A, NACE MR-01-75

17. Hydrostatic shell test pressure: 22,500 psi / 1550 bar

18. Hydrostatic chamber test pressure: 15,000 psi / 1035 bar

19. Recommended hydraulic operating pressure: 1,500 psi / 103 bar

20. Maximum hydraulic operating pressure: 3,000 psi / 207 bar

21. Gal. (US gal)/L to open: 30 / 114

22. Gal. (US gal)/L to close: 30 / 114

Engineering Data – Annular Adapter

1. Adapter style: flanged top x flanged bottom 11 in 15,000 psi x 13 5/8 in 15,000 psi

2. Length: 26.50 in / 673mm

3. Weight: 1,000 lbs / 2,200 kg

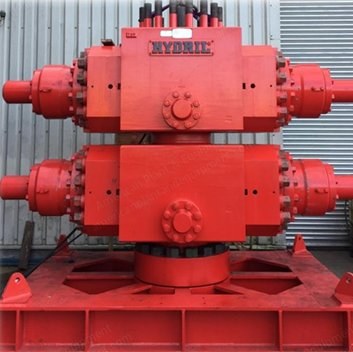

Engineering Data – 11” 20,000 psi Hydril Dual Ram BOP

1. Application: offshore (subsea and surface) and onshore

2. Bore size: 11 in / 279mm

3. Working pressure: 20,000 psi / 1379 bar

4. BOP type: dual ram

5. Top connection: 11 in 20,000 API type 6BX stud, API BX-158 Inconel ring groove

6. Bottom connection: 11 in 20,000 API type 6BX flange, API BX-158 Inconel ring groove

7. Side outlets: upper (2) 2 9/16 in 20,000 API type 6BX stud, API BX-153 Inconel ring groove, lower (2) 2 9/16 in 20,000 API type 6BX flange, API BX-153 Inconel ring groove

8. Cylinder bore (pipe/blind/shear ram – in): 14.25

9. Lock types: 14 ¼ hydraulic multi-position lock

10. Height: 84 in / 2,134mm

11. Length – dual ram: 133.16 in / 3,382mm

12. BOP assembly weight (approximate): 58,000 lb / 26,308 kg

13. Certification: ABS & OEM in accordance with API 6A, API 16A, NACE MR-01-75

14. Centralizing shear rams: yes

15. Tubing rams (multiple sizes - in): 1.315; 1.9; 2.06; 2.375; 2.875

16. Pipe rams (multiple sizes - in) hanging: 3.5X; 4.0X; 4.5X; 5.0X; 5.5X; 6.0X; 6.625X; 7.0; 7.625

17. Lock types: 14 ¼ hydraulic multi-position lock

18. Hydrostatic shell test pressure: 30,000 psi / 2,068 bar

19. Hydrostatic chamber test pressure: 4,500 psi / 310 bar

20. Recommended hydraulic operating pressure: 1,500 psi / 103 bar

21. Maximum hydraulic operating pressure: 3,000 psi / 207 bar

22. Gal. (US gal)/L to open: 11.5 / 43.5

23. Gal. (US gal)/L to close: 12.5 / 47.3

24. Closing ratio: 12.69

25. Opening ratio: 2.06

Equipment Overview

1. Dril-Quip diverter overshot mandrel

2. Hydril 11” - 15M ‘GX’ annular BOP with 11” top 13 5/8” bottom connection

3. Superior 11” - 20M x 13.5/8” - 15M x-over spool

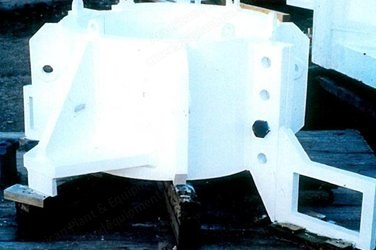

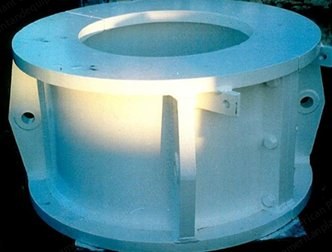

4. BOP cart and BOP test cap

5. Hydril 11” - 20M double ram BOP’s w/ 2 x 11”-20M side-outlet spools. Includes rams listed c/w shipping frames and extensive work platforms for stack up.

6. WOM double-block 2.9/16” - 20M choke and kill valves and various spool pieces.

7. BOP control panel and control hoses and hard piping.

8. WOM R type check valves 29/16 – 20M plus flanges, targets and spools as required for the complete assembly of a working 20M BOP stack.

9. 11: 20M BOP lifting and test flange BX 158

10. Multiple BOP lift adaptors and lifting equipment 50T

11. Offshore workshop container including spares/hoists/torque tooling and hydraulic fittings

12. BOP hoists 50T

13. Extensive range of torque tooling (Hytorc and Ingersoll Rand)

14. WOM R type check valves 29/16 – 20M plus

15. NOV and FMC Dynetor equipment
