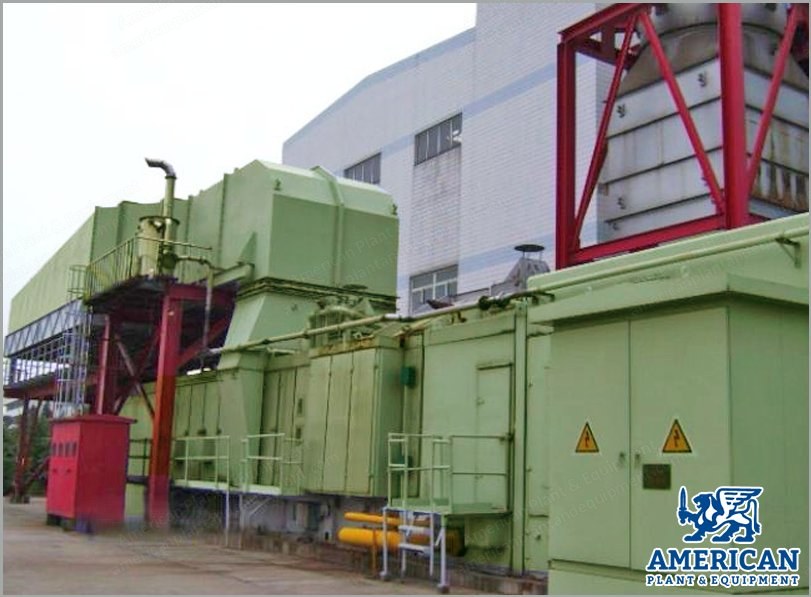

GE, PG6561B, 2003, 39 MW, 50 Hz, Dual Fuel Gas Turbine Generator Set

GE, PG6561B, 2003, 39 MW, 50 Hz, Dual Fuel Gas Turbine Generator Set

Description

  1. Overview

    1. PG6561B (GE Frame 6B)

    2. Condition: Used

    3. Runtime: 619 hours (gas) / 5,582 hours (diesel)

    4. History: Manufactured in 2003, 534 starts

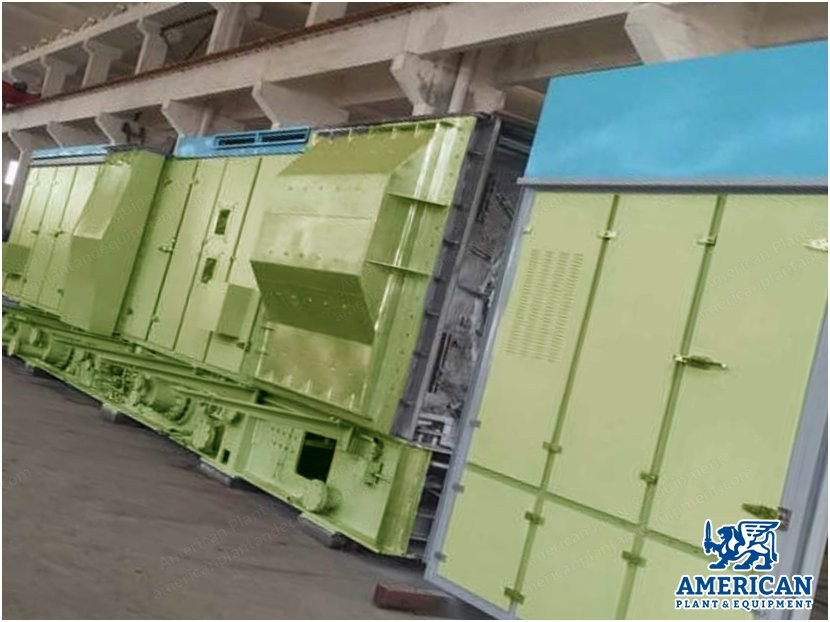

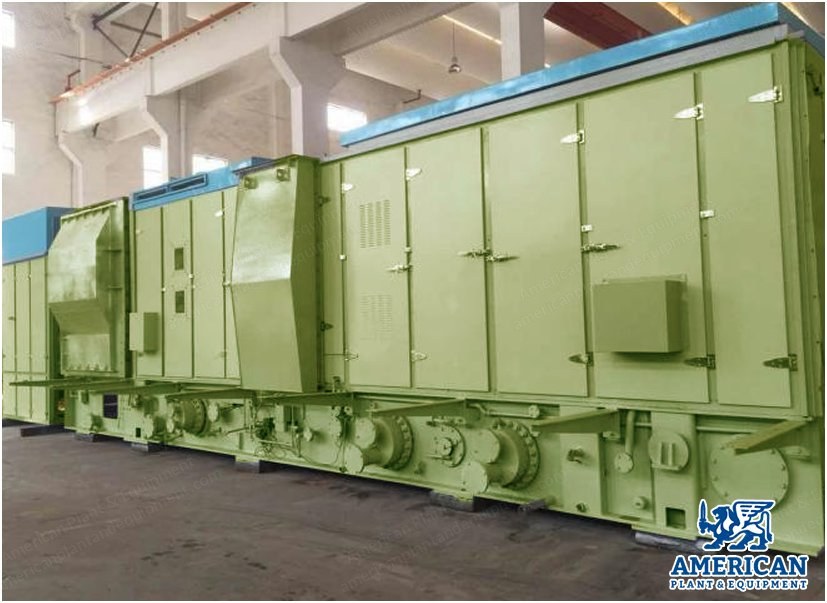

    5. Unit has been dismantled and is available for inspection

  2. Key Data From The Records

    1. Model: GE PG6561B (Frame 6B)

    2. Frequency: 50 Hz

    3. Output: Approx. 38,000 kW (light oil) / 38,700 kW (natural gas)

    4. Runtime: 6,201 hours total (5,582 hours light oil + 619 hours natural gas)

    5. Starts: 534

    6. Trips: 21

    7. Commissioned: July 2003

    8. Maintenance: Combustion inspections performed at 4,004 hours and 5,470 hours

    9. Status: Dismantled, available for inspection

  3. Gas Turbine Technical Specifications

    1. Model: PG6561B (GE Frame 6B)

    2. Key parameters (39 MW version)

    3. Rated power: 39 MW

    4. Fuel: Light oil / natural gas (dual fuel)

    5. Voltage: 10.5 / 11 kV

    6. Frequency: 50 Hz

    7. Operating hours: ~6,000 hours

    8. Simple cycle efficiency: ~33%

    9. Exhaust temperature: ~532°C (990°F)

    10. Output power (natural gas): 38,700 kW

  4. Typical Applications

    1. Captive / self-owned power plant for industrial parks

    2. Urban distributed energy station

    3. Power and heat supply for petrochemical, oil refining, and chemical plants

    4. Low calorific value (LCV) gas power generation for steel mills

    5. Peak-shaving power plant / standby power

    6. Isolated grid (island mode) operation and independent power stations for remote areas

  5. Unit / Machine Advantages

    1. Proven and reliable: over 45 years of global service, with more than 1,200 units installed and cumulative operation exceeding 100 million hours; availability of 98%+.

    2. Maintenance-friendly: modular combustion system, well-defined inspection intervals, common/spare parts interchangeability.

    3. Fast start-up and stable load capability: well suited for peak shaving, standby power, and island-mode operation; supports rapid start-stop cycles.

    4. Strong CHP / cogeneration adaptability: stable exhaust parameters and high waste heat recovery efficiency, making it ideal for distributed energy and district / campus heating.

    5. Significant upgrade potential: can be retrofitted with dry low NOx (DLN) combustion, efficiency improvement packages, life-extension services, and hydrogen blending / fuel-flexibility modifications.

  6. Operational History

    1. Commissioned in July 2003

    2. Total starts: 534

    3. Fired starts: 497

    4. Total operating hours: 6,201 h

    5. Light oil operation: 5,582 h

    6. Natural gas operation: 619 h

    7. Forced trips: 21

    8. Last reported in normal operational condition before dismantling

  7. Maintenance History

    1. November 2004 (4,004 operating hours): combustion inspection performed (transition pieces not removed); crossover ignition tubes between two pairs of combustion cans replaced; one combustion liner (flame tube) replaced

    2. April 2006 (5,470 operating hours): combustion inspection completed
