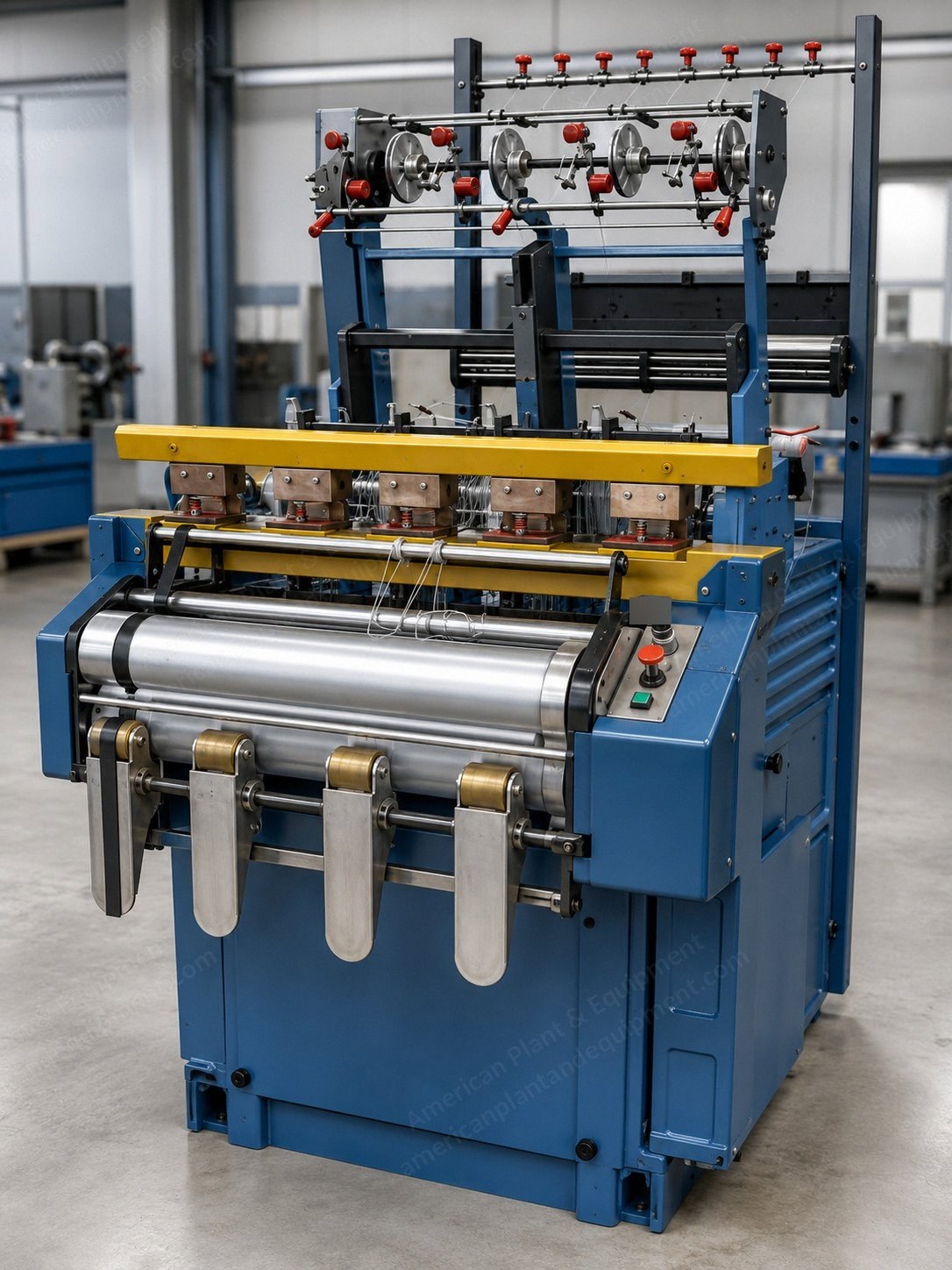

NovaStar, Shuttle Loom for Narrow Fabric, Width 80mm, 4 Weaving Tapes, 12 Heald Frames (New)

NovaStar, Shuttle Loom for Narrow Fabric, Width 80mm, 4 Weaving Tapes, 12 Heald Frames

Description

  1. Overview
    1. Shuttle loom for narrow fabric
    2. Model: GN143
    3. High-quality machine for producing high-quality bands with a real woven edge on each side
  2. Weaving Specifications
    1. Maximum weaving width 80mm (3.1 in)
    2. Four weaving tapes
    3. 2 lines, tape width: 0 to 80mm
    4. 12 heald frames
    5. 14 position beam creel stand
    6. Pick repeat: 8 to 48
    7. Weft density: 3.5 to 36.7 /cm
    8. Picks per minute: 100 (for each tape)
  3. Drive and Power
    1. Motor: 480V, 3 phase, 60Hz, 1.1 kW (1.5 hp)
  4. Electrical Specifications
    1. Voltage: 480V, 3 phase, 60Hz
